Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 3 illustrations

Illustrations

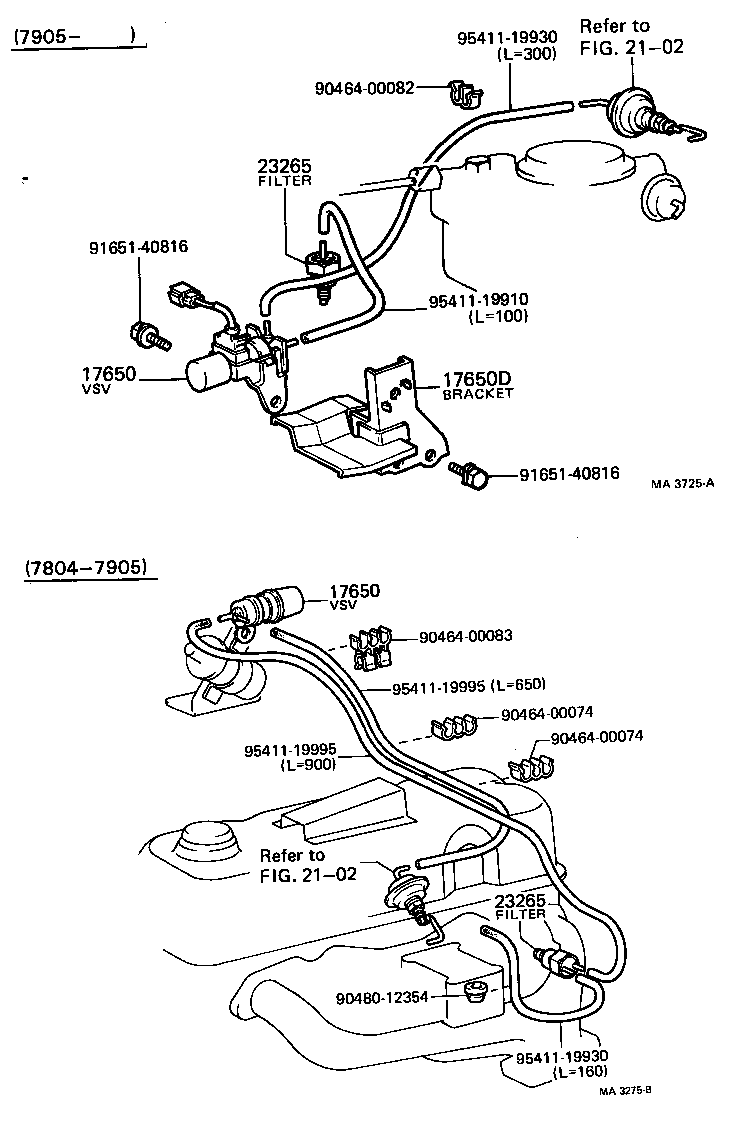

Figure MA9501 MA9501 1978-04 → 1984-08 Figure AS0037 AS0037 1978-04 → 1984-08 Figure MA3880 MA3880 1979-04 → 1984-08

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
