Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03
Ignition Coil & Spark Plug / Glow Plug
17 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

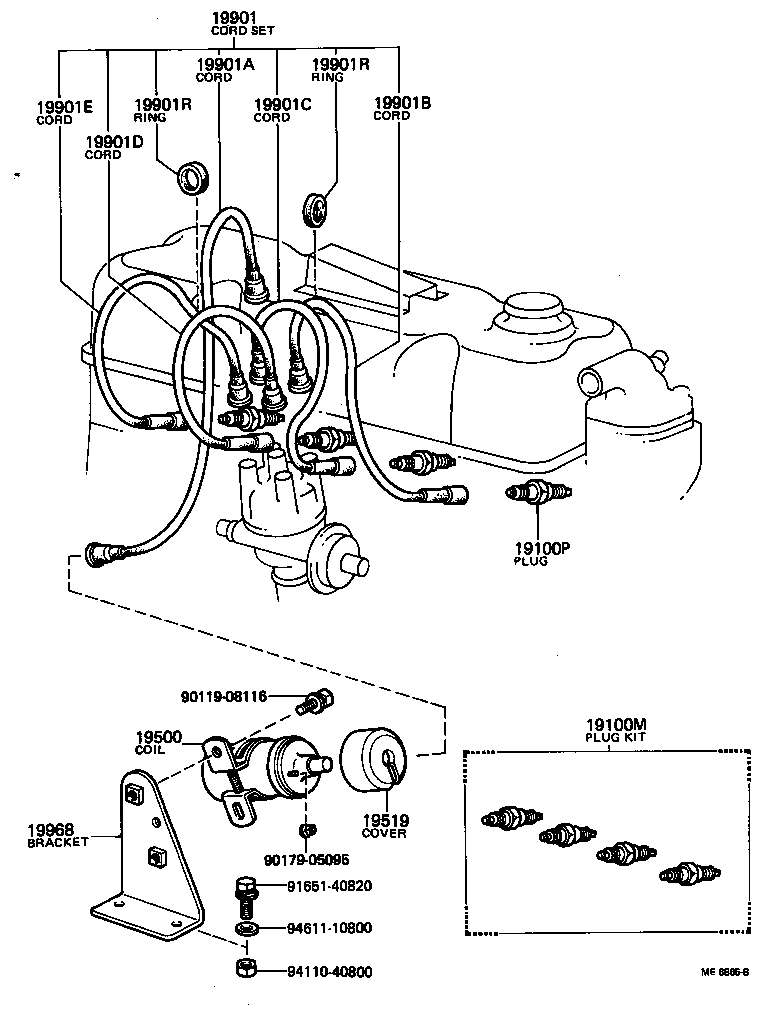

| 19100M | Plug Kit, Spark |
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19519 | Cover, Ignition Coil |

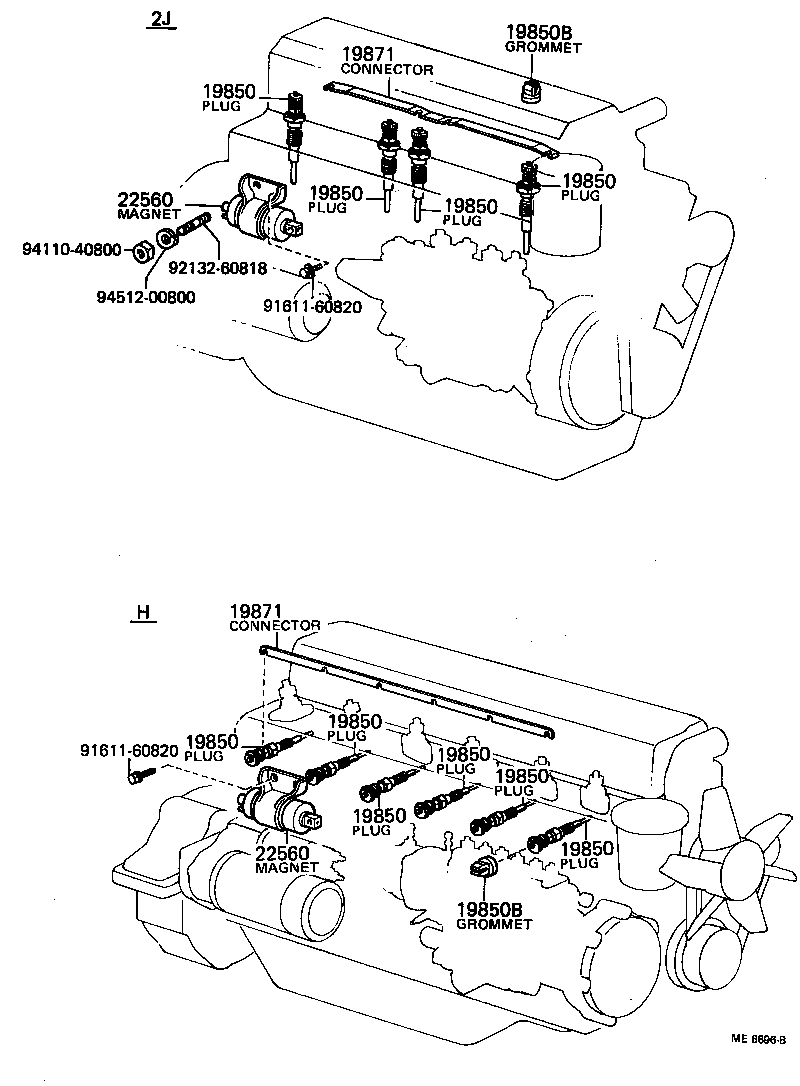

| 19807 | Insulator Sub-assy, Glow Plug, NO.1 |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901R | Ring, Rubber Spark Plug Resistive Cord |
| 19968 | Bracket, Ignition Coil |
| 22560 | Magnet Assy, Over Injection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
