Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03
Starter
41 part groups · 9 illustrations
Part groups

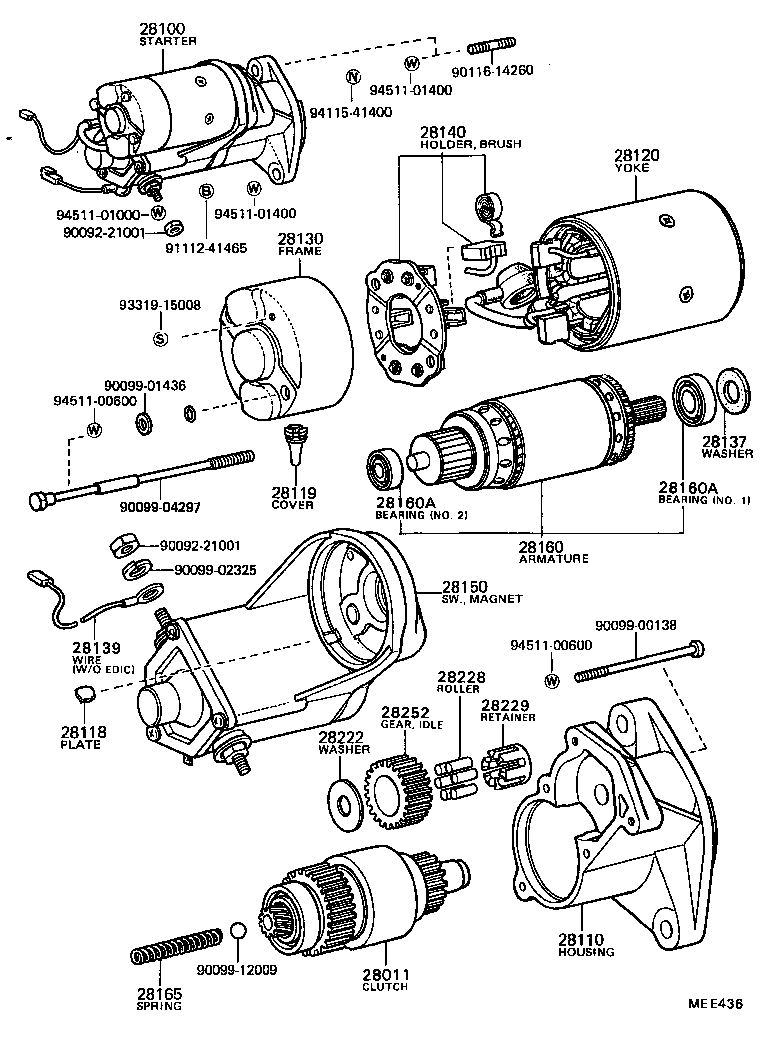

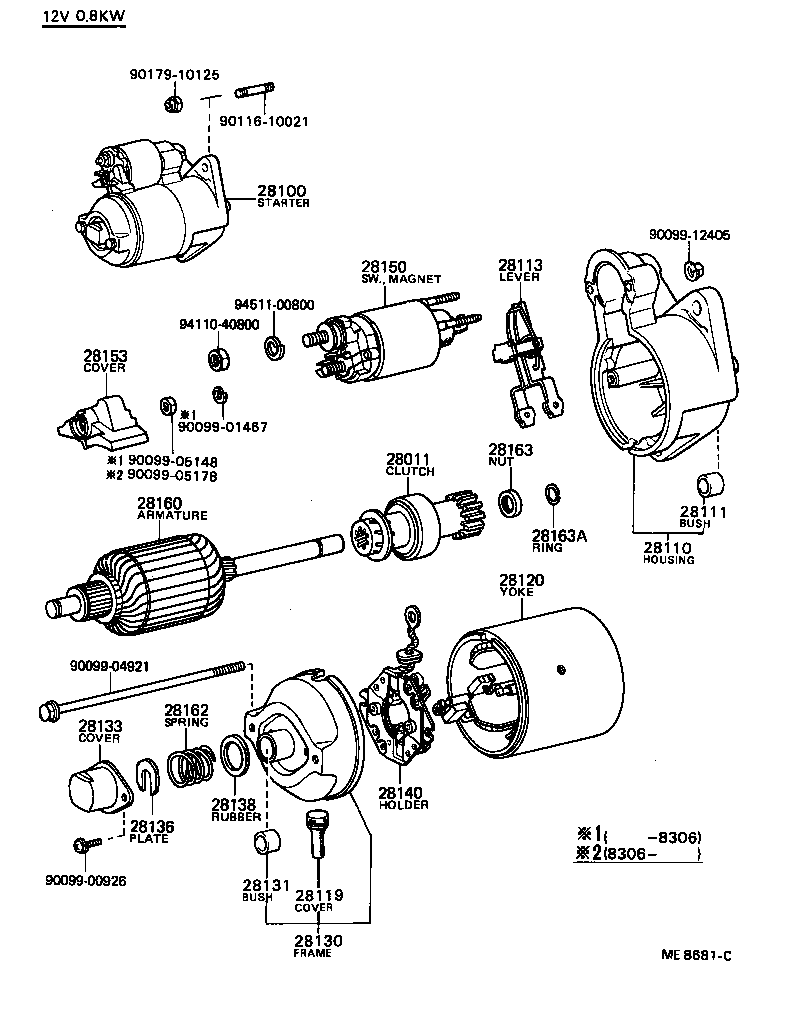

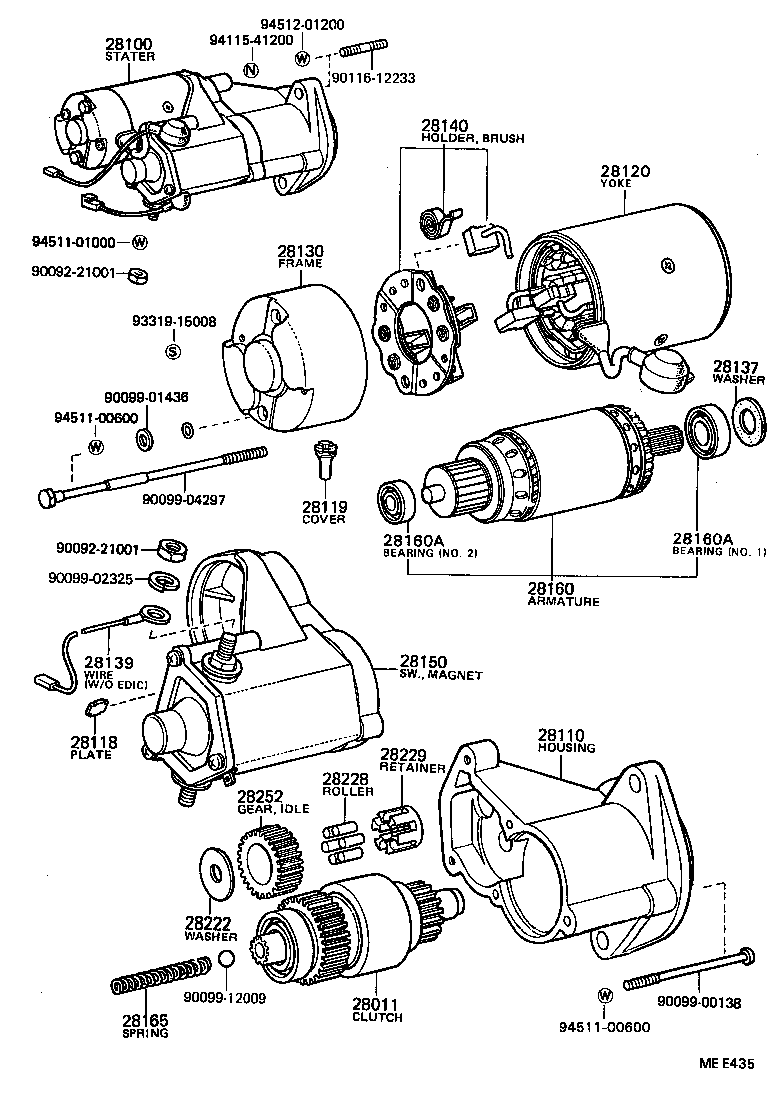

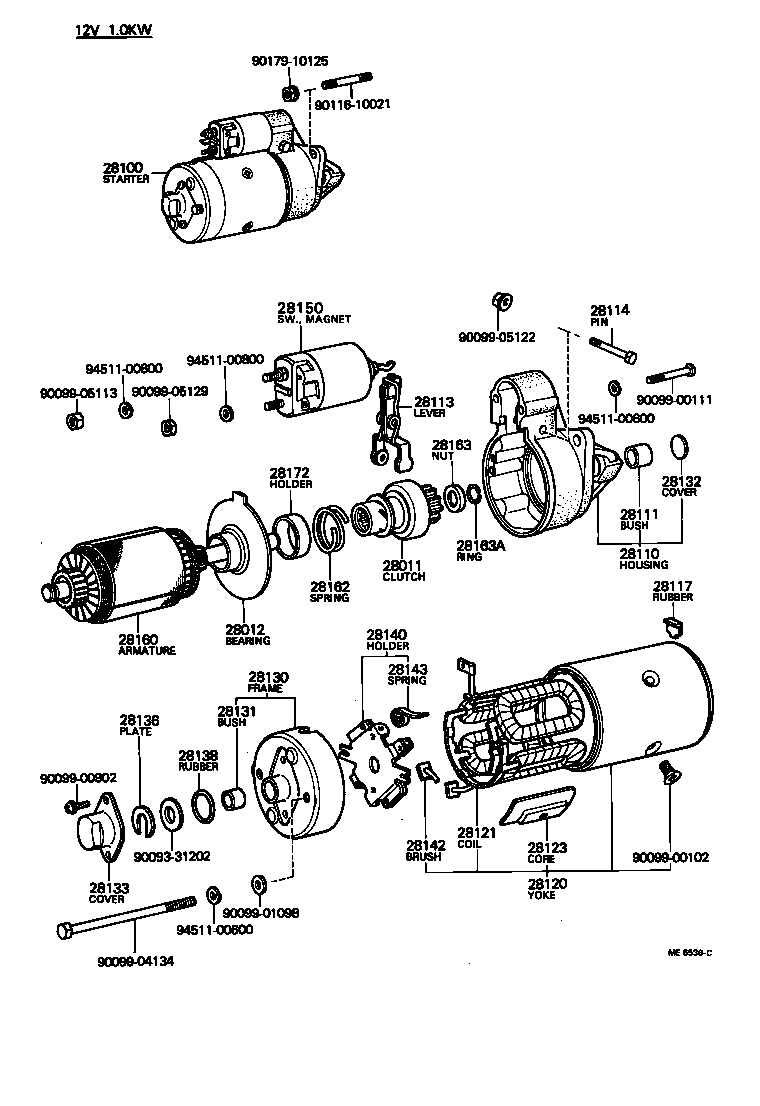

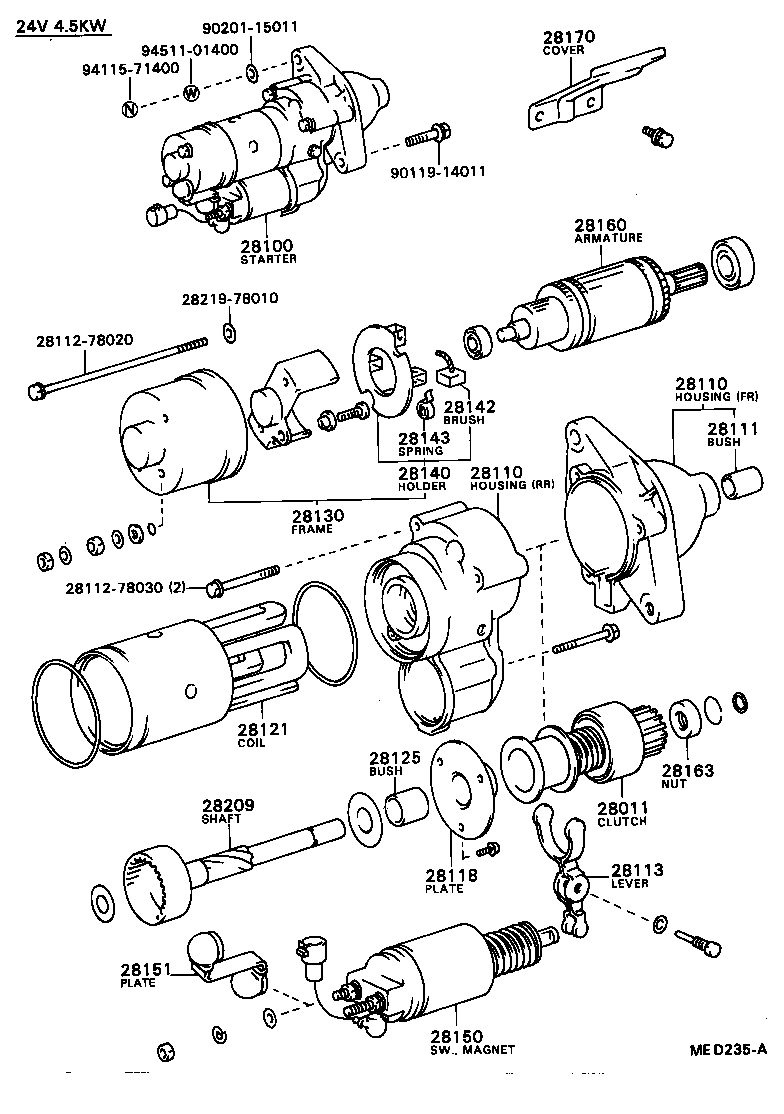

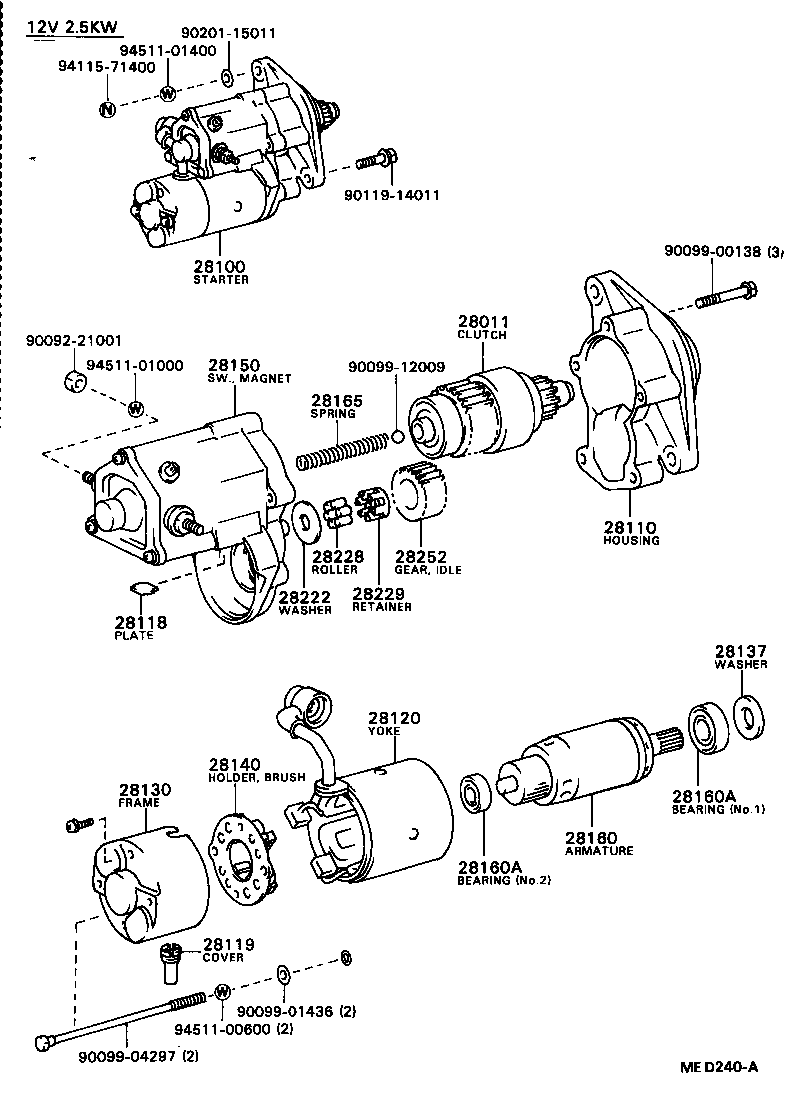

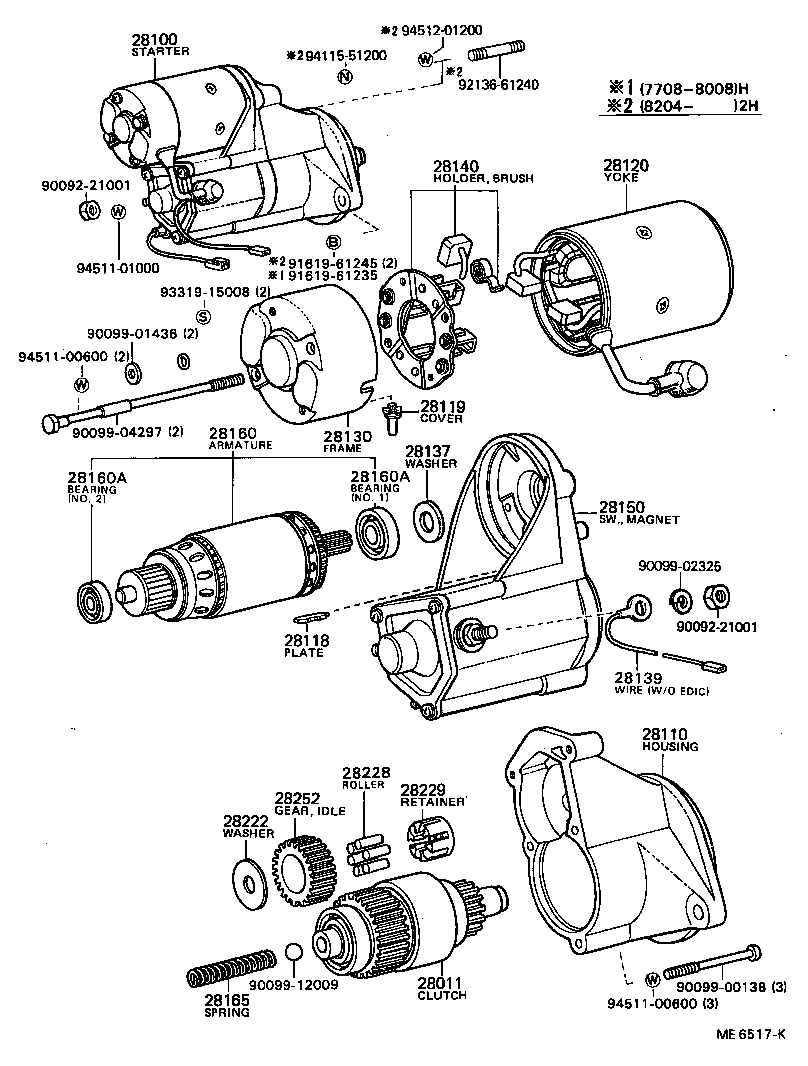

| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28012 | Bearing Sub-assy, Center |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28111 | Bush(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28114 | Pin, Starter Drive Lever Set |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28118 | Plate(FOR STARTER YOKE) |
| 28119 | Cover, Starter End Frame |
| 28120 | Yoke Assy, Starter |
| 28121 | Coil, Starter Field |
| 28123 | Core, Starter Pole |
| 28125 | Bush, Starter Center Bearing |
| 28130 | Frame Assy, Starter Commutator End |
| 28131 | Bush, Commutator End Frame |
| 28132 | Cover, Starter Bearing(FOR DRIVE HOUSING) |
| 28133 | Cover, Bearing(FOR END FRAME) |
| 28136 | Plate, Starter Lock |
| 28137 | Washer, Felt, Starter |
| 28138 | Rubber(FOR STARTER BEARING COVER) |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28151 | Plate, Lead, Switch Connecting |
| 28153 | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28162 | Spring, Starter Brake |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28163A | Ring, Snap(FOR STARTER PINION STOP NUT) |
| 28165 | Spring, Starter Magnet Switch Return |
| 28170 | Cover Assy, Starter |
| 28172 | Holder, Starter Spring |
| 28209 | Shaft Sub-assy, Starter |
| 28222 | Washer, Starter Idle Gear Clutch |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28252 | Gear, Starter Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
