Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

10 part groups · 7 illustrations

Illustrations

Figure MEE438A

MEE438A 1977-08 → 1980-08

Figure MEE438A

MEE438A 1980-08 → 1981-04

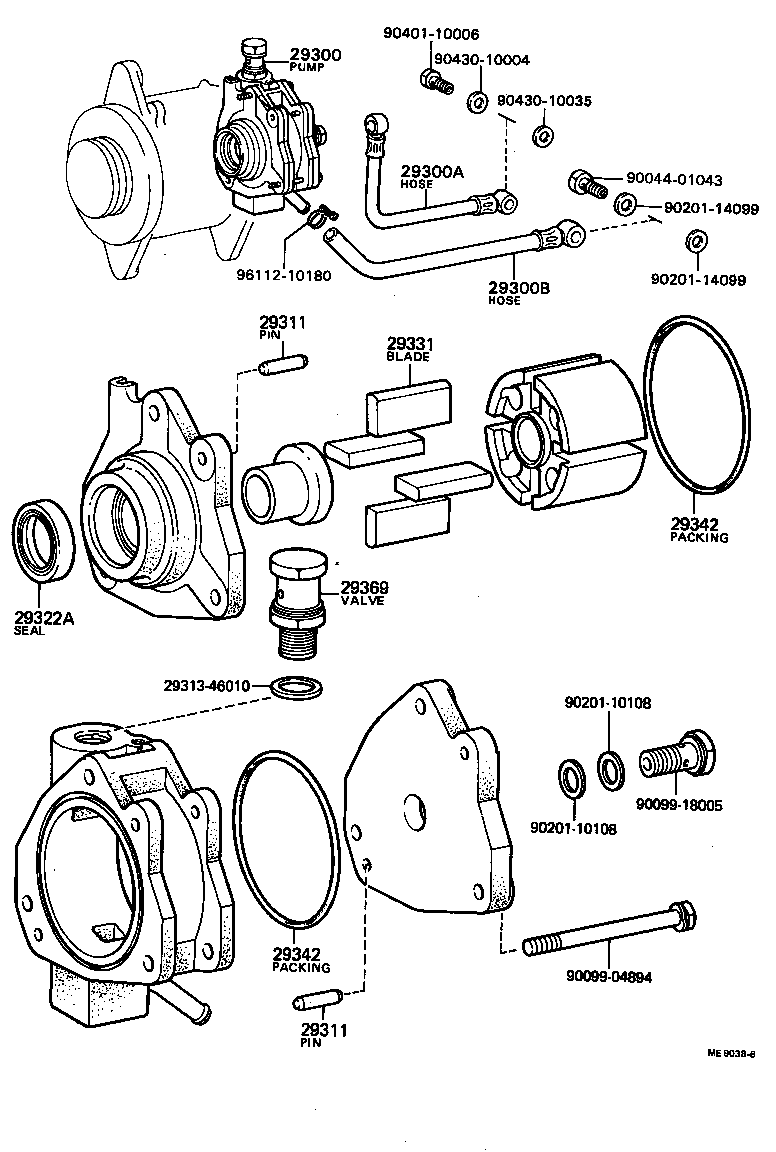

Figure ME9038B

ME9038B 1980-08 → 1982-04

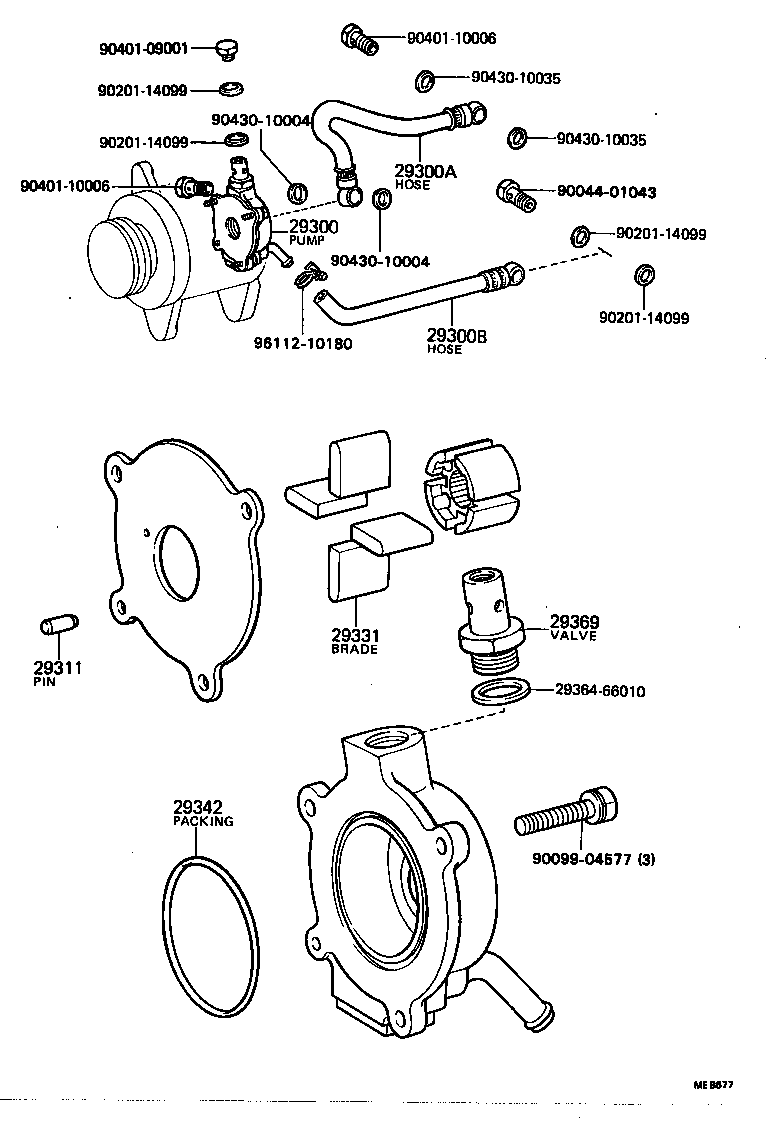

Figure MEB677

MEB677 1982-04 → —

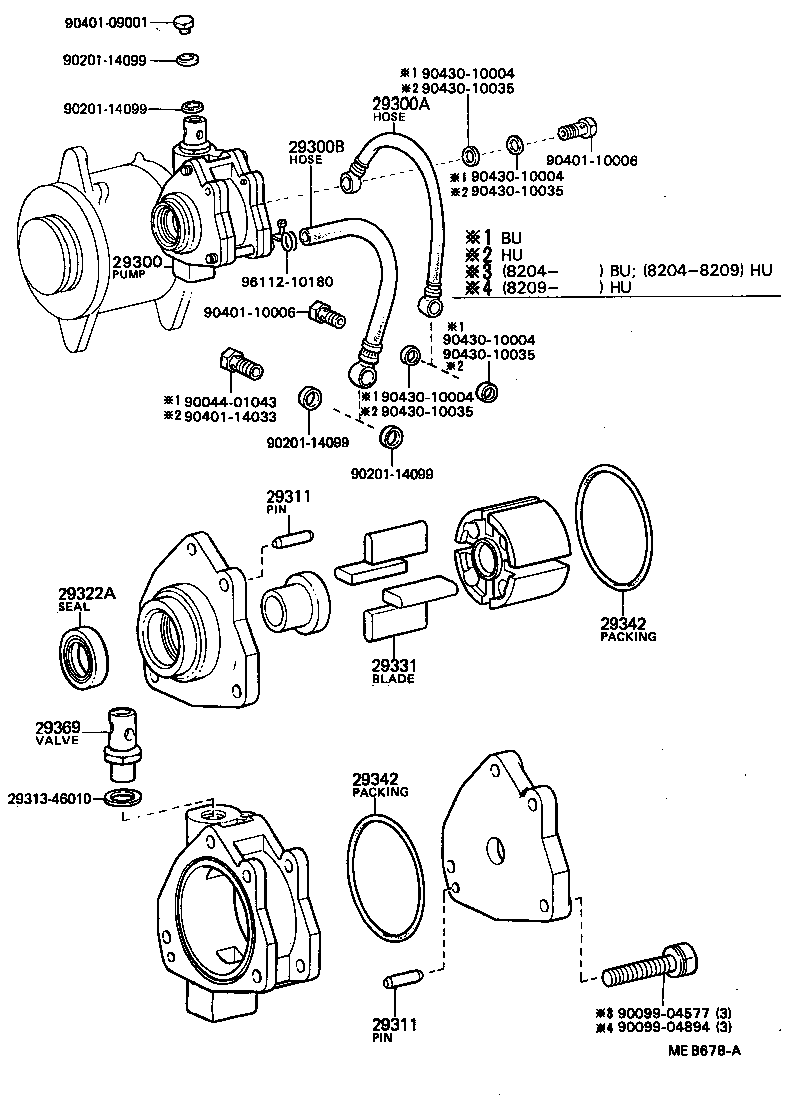

Figure MEB678A

MEB678A 1982-04 → 1984-08

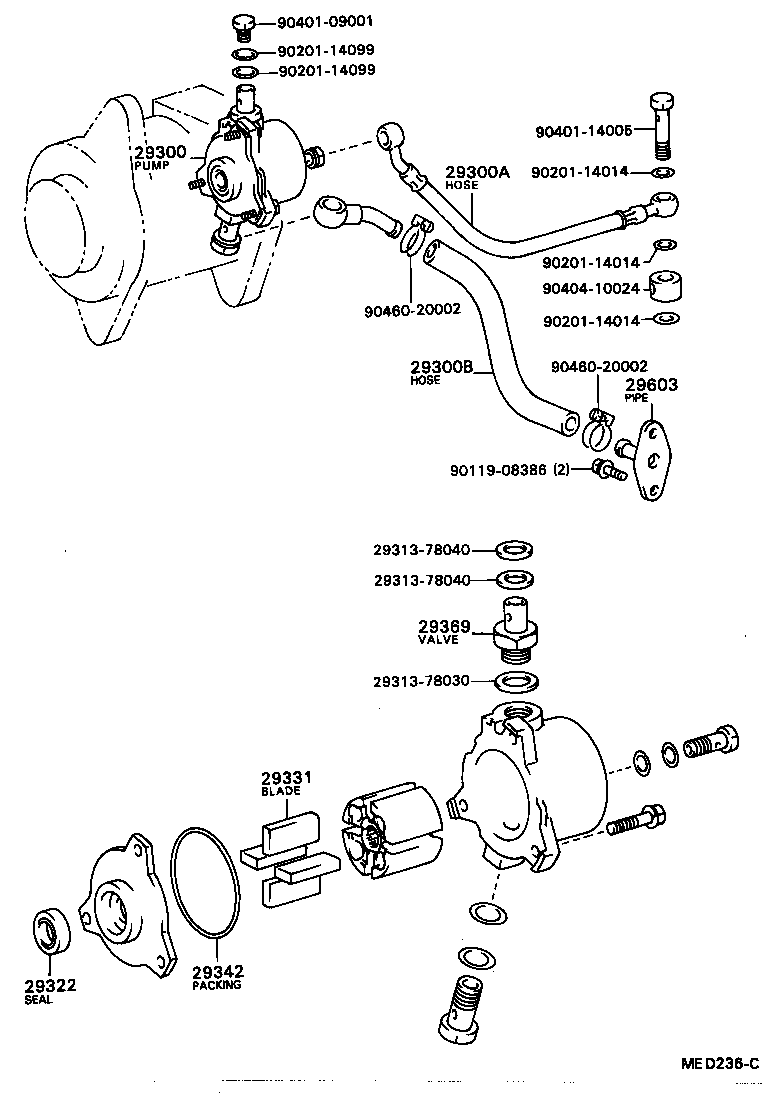

Figure MED236C

MED236C 1983-04 → 1984-08

Figure MEF751

MEF751 1983-04 → 1984-08

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300A	Hose, Vacuum Pump Oil Inlet
29300B	Hose, Vacuum Pump Oil Outlet
29311	Pin, Vacuum Pump Dowel, NO.1
29322	Bush, Oil Seal, Vacuum Pump
29322A	Seal, Vacuum Pump Oil
29331	Blade, Vacuum Pump, A
29342	Packing, Vacuum Pump
29369	Valve Sub-assy, Check
29603	Pipe, Vacuum Pump Oil Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
