Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

18 part groups · 5 illustrations

Illustrations

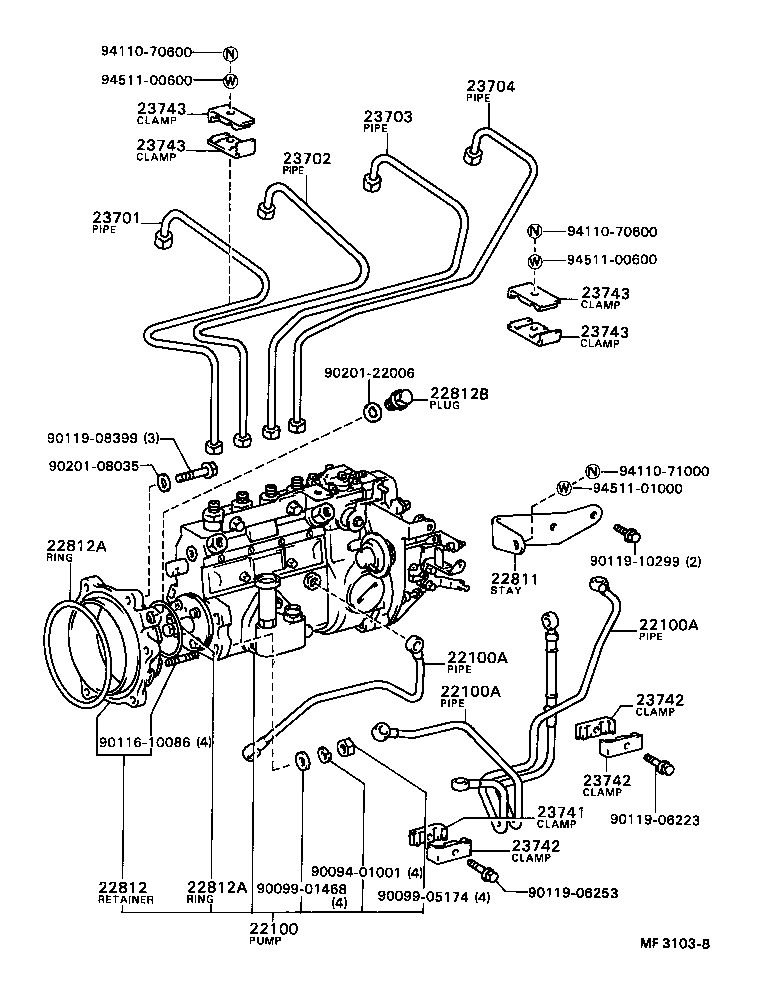

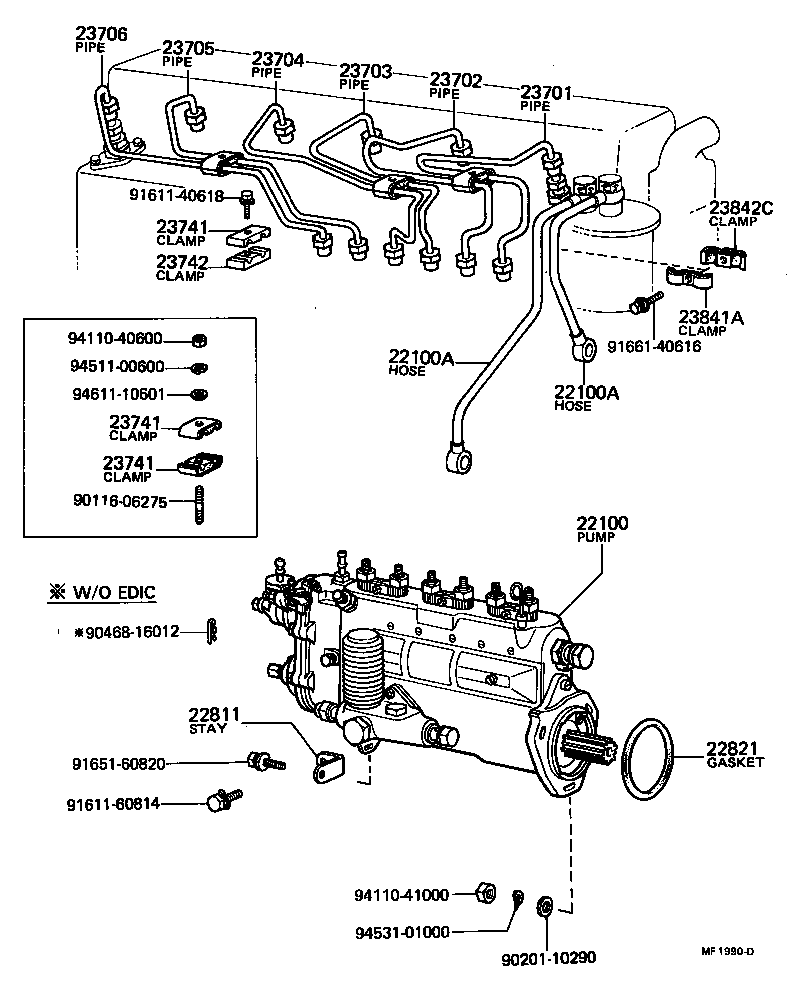

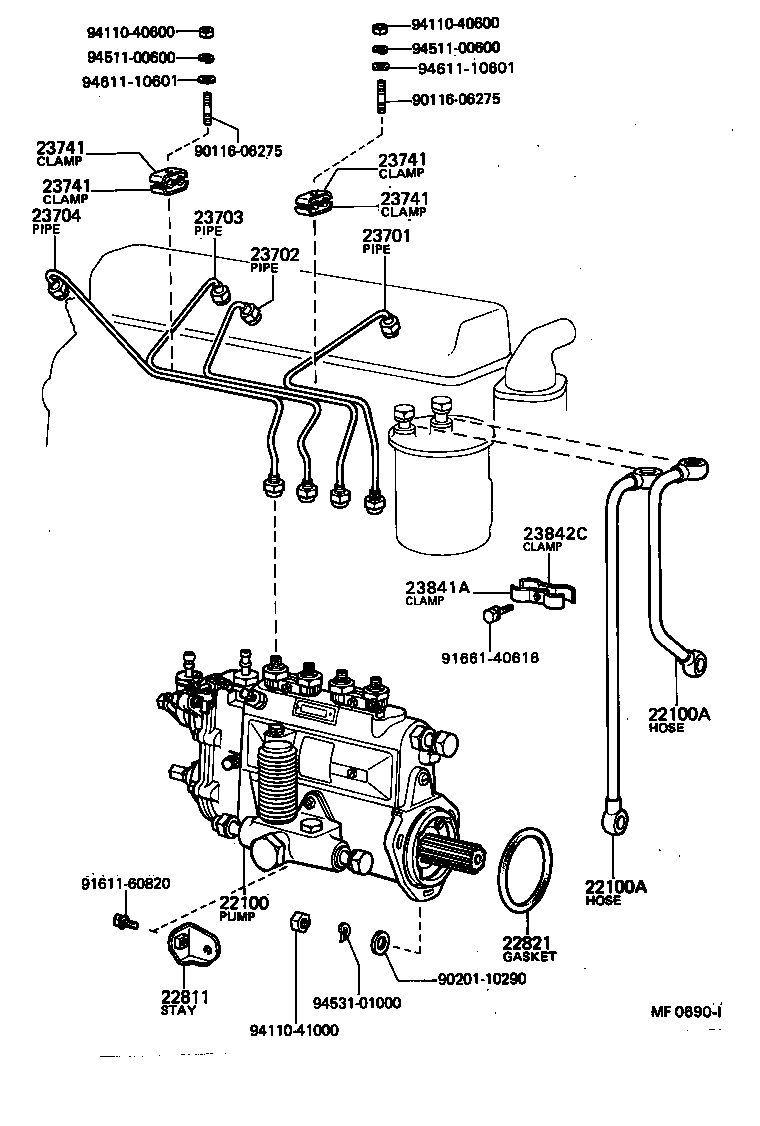

Figure MF2115C MF2115C 1977-08 → — Figure MF1990D MF1990D 1977-08 → 1981-04 Figure MF2538C MF2538C 1982-04 → 1984-08 Figure MF0690I MF0690I 1977-08 → 1979-04 Figure MF3103B MF3103B 1983-04 → 1984-08

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
22812 Retainer, Injection Pump
22812A Ring, O
22812B Plug, W/Head Straight Screw(FOR INJECTION PUMP RETAINER)
22821 Gasket, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23743 Clamp, Injection Pipe, NO.3
23841A Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
23842C Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
