Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

23 part groups · 15 illustrations

Illustrations

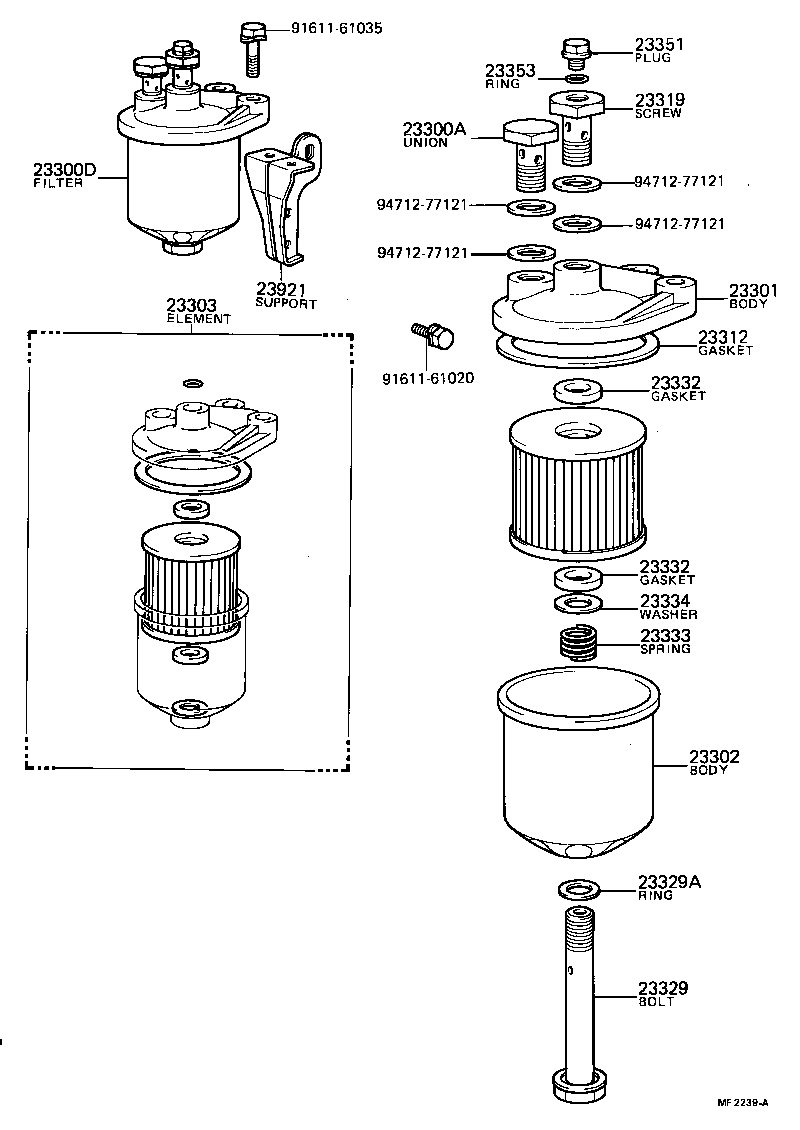

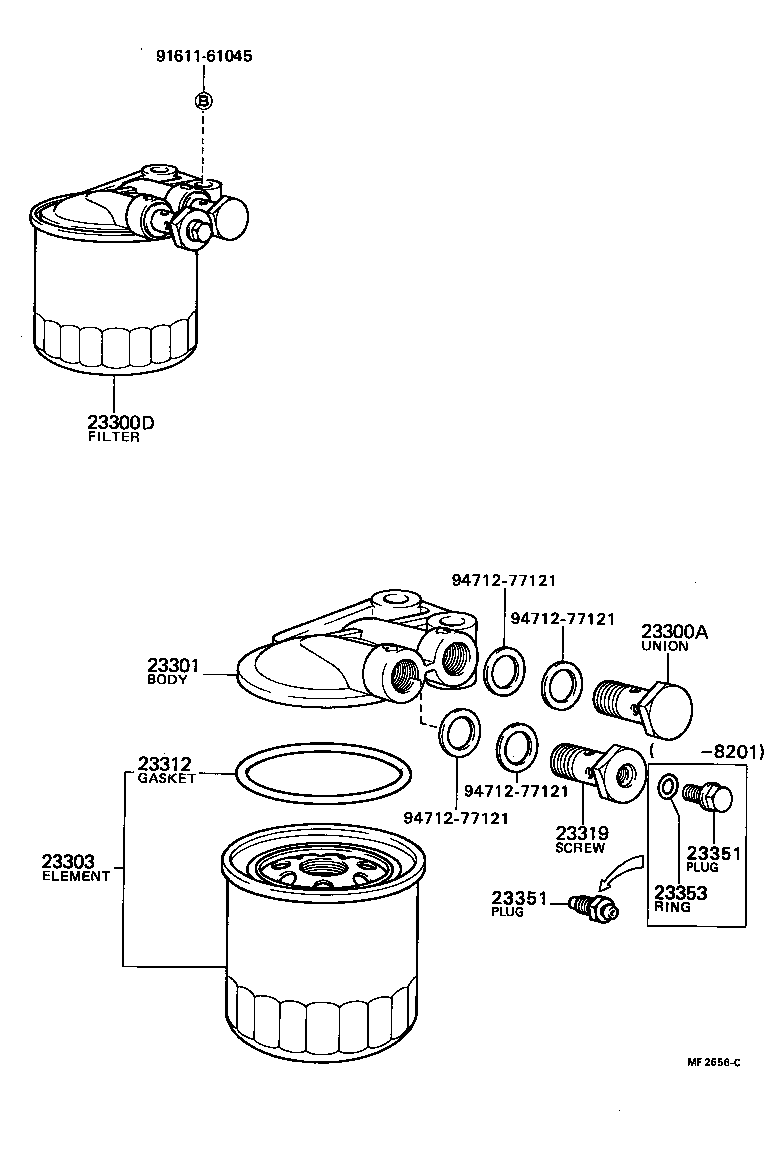

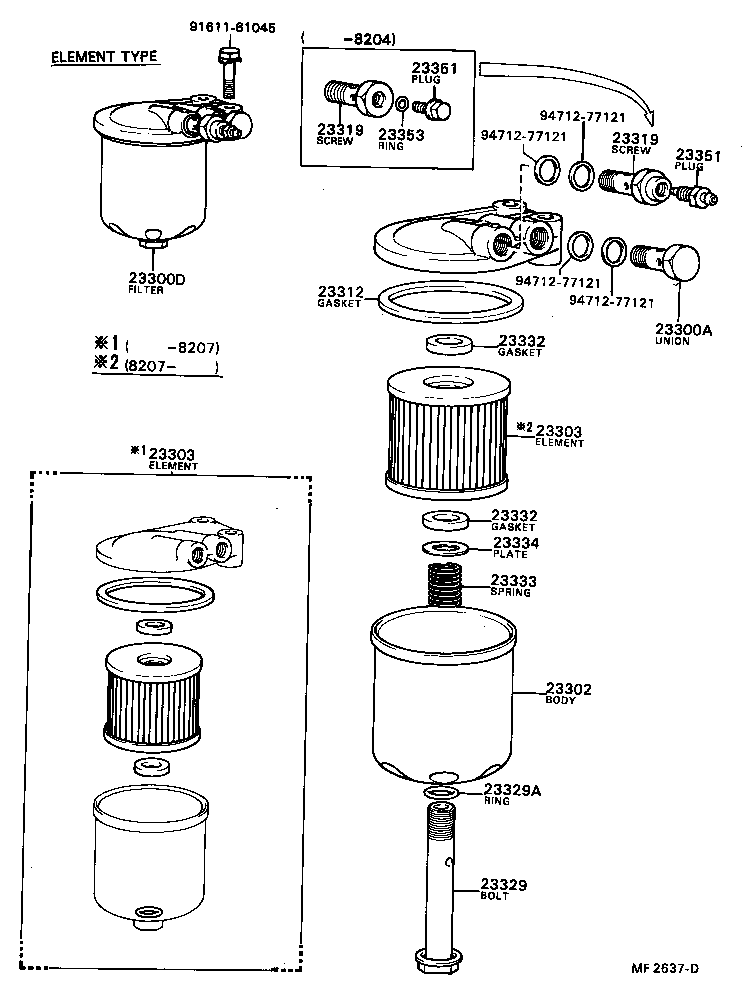

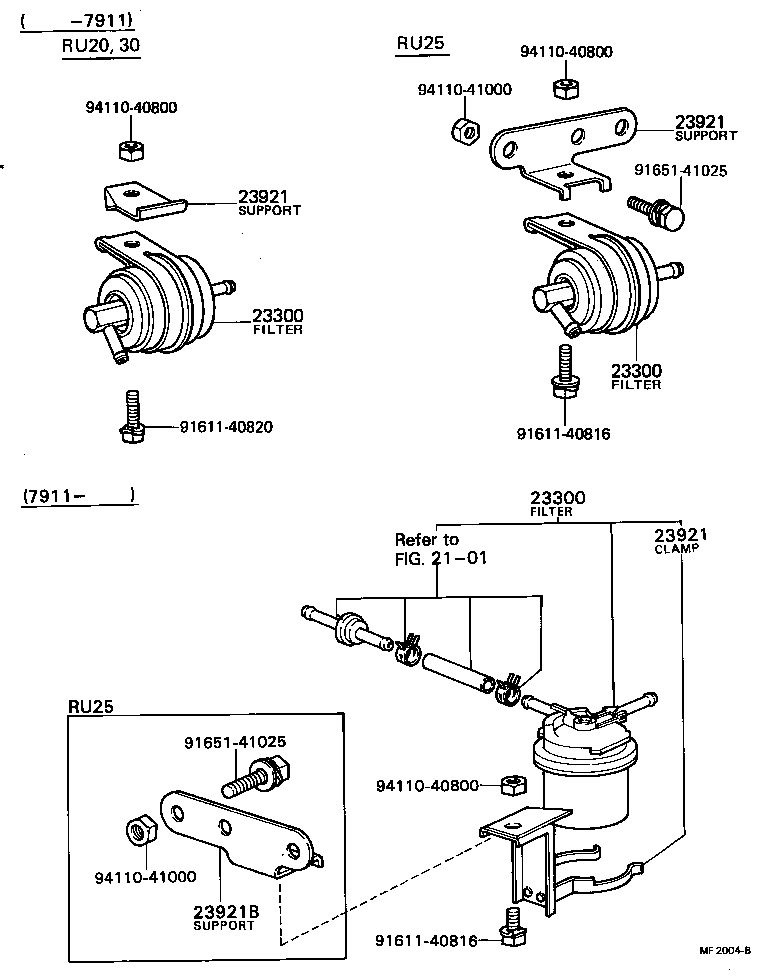

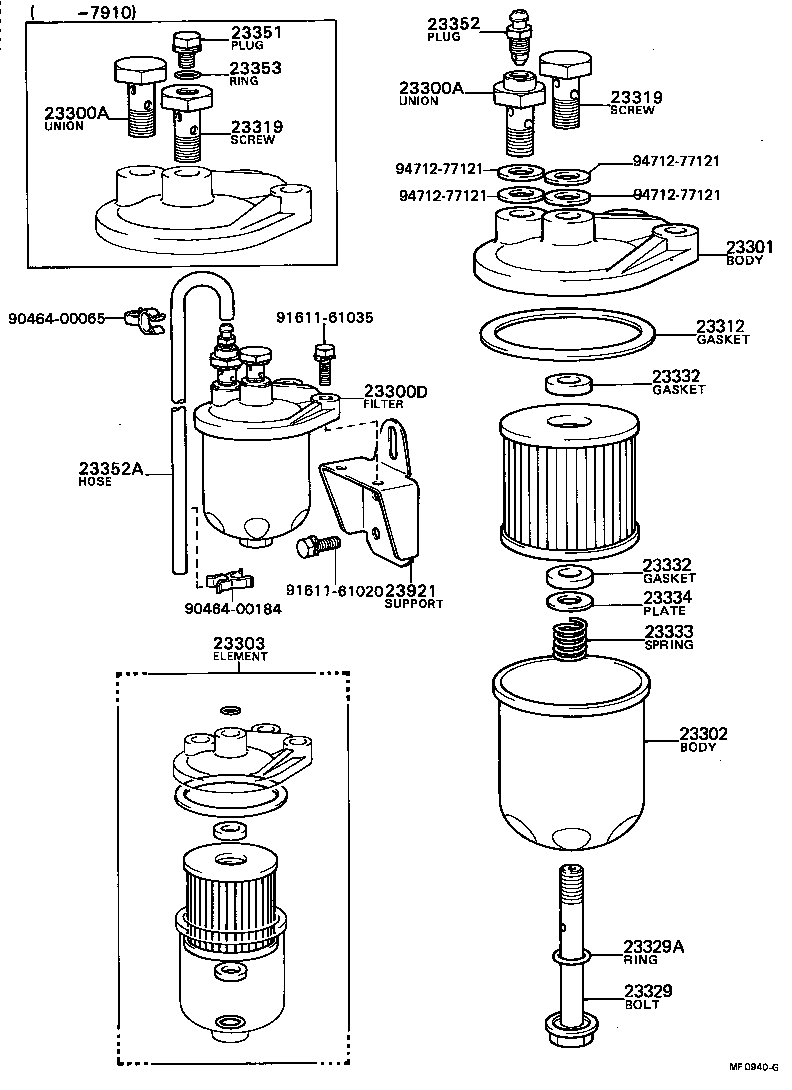

Figure MF1350E MF1350E 1977-08 → 1980-08 Figure MF0625D MF0625D 1978-01 → 1980-08 Figure MF2556C MF2556C 1980-08 → — Figure MF2637D MF2637D 1980-08 → — Figure MF2445B MF2445B 1979-12 → — Figure MF2863A MF2863A 1979-12 → — Figure MF0940G MF0940G 1977-08 → 1981-04 Figure MF2801B MF2801B 1982-04 → 1984-08 Figure MF2445B MF2445B 1979-12 → — Figure MF2863A MF2863A 1979-12 → — Figure MF2239A MF2239A 1977-08 → 1979-04 Figure MF2004B MF2004B 1977-08 → 1984-08 Figure MF3104 MF3104 1983-04 → 1984-08 Figure MF2445B MF2445B 1979-12 → — Figure MF2863A MF2863A 1979-12 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300A Union, Nipple(FOR FUEL FILTER INLET)
23300B Union, Nipple(FOR FUEL FILTER OUTLET)
23300C Gasket, Nipple Union(FOR FUEL)
23300D Filter Assy, Fuel(FOR DIESEL)
23301 Body Sub-assy, Fuel Filter
23302 Body Sub-assy, Fuel Filter, Lower
23303 Element Sub-assy, Fuel Filter
23312 Gasket, Filter Bowl
23319 Screw, Fuel Pipe Follow
23329 Bolt, Fuel Filter Center
23329A Ring, O(FOR FUEL FILTER CENTER BOLT)
23332 Gasket, Element(FOR FUEL FILTER)
23333 Spring, Filter Element Set
23334 Plate, Spring(FOR FILTER ELEMENT)
23338 Gasket(FOR WARNING SWITCH)
23351 Plug, Air Vent
23352 Plug, Bleeder
23352A Hose(FOR BLEEDER PLUG)
23353 Ring, O(FOR AIR VENT PLUG)
23921 Support, Fuel Filter
23921B Bracket(FOR FUEL FILTER)
23930 Sedimenter Assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
