Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

39 part groups · 6 illustrations

Illustrations

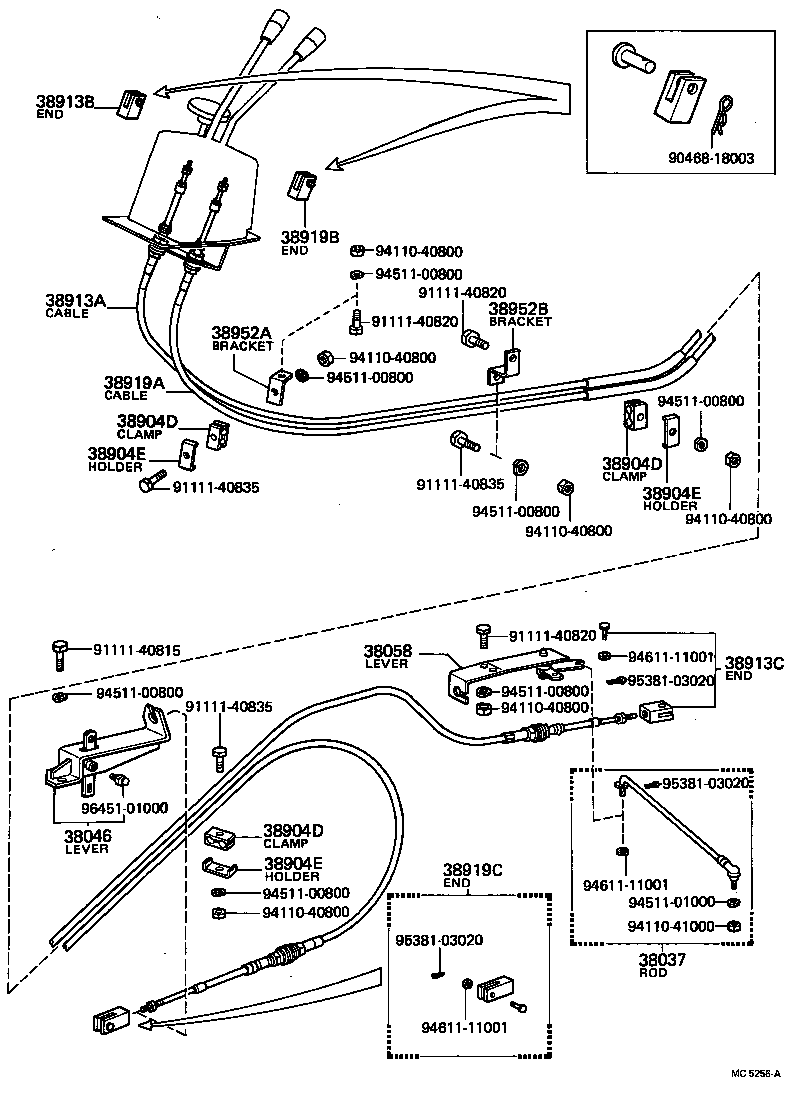

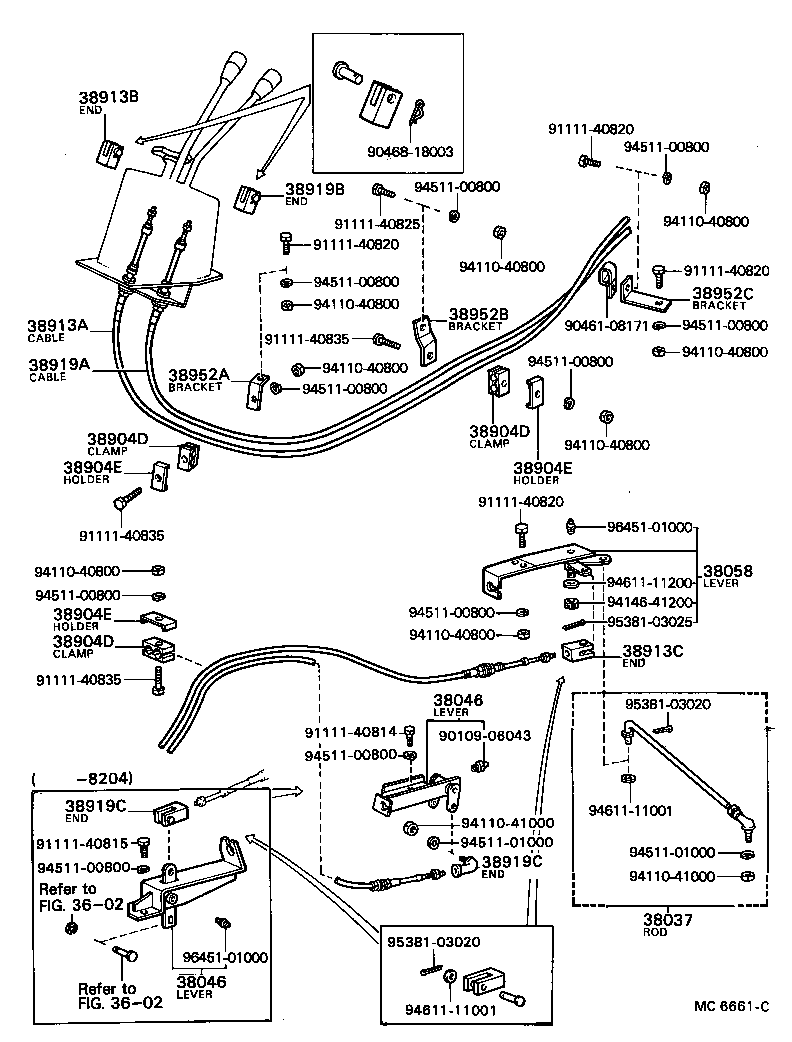

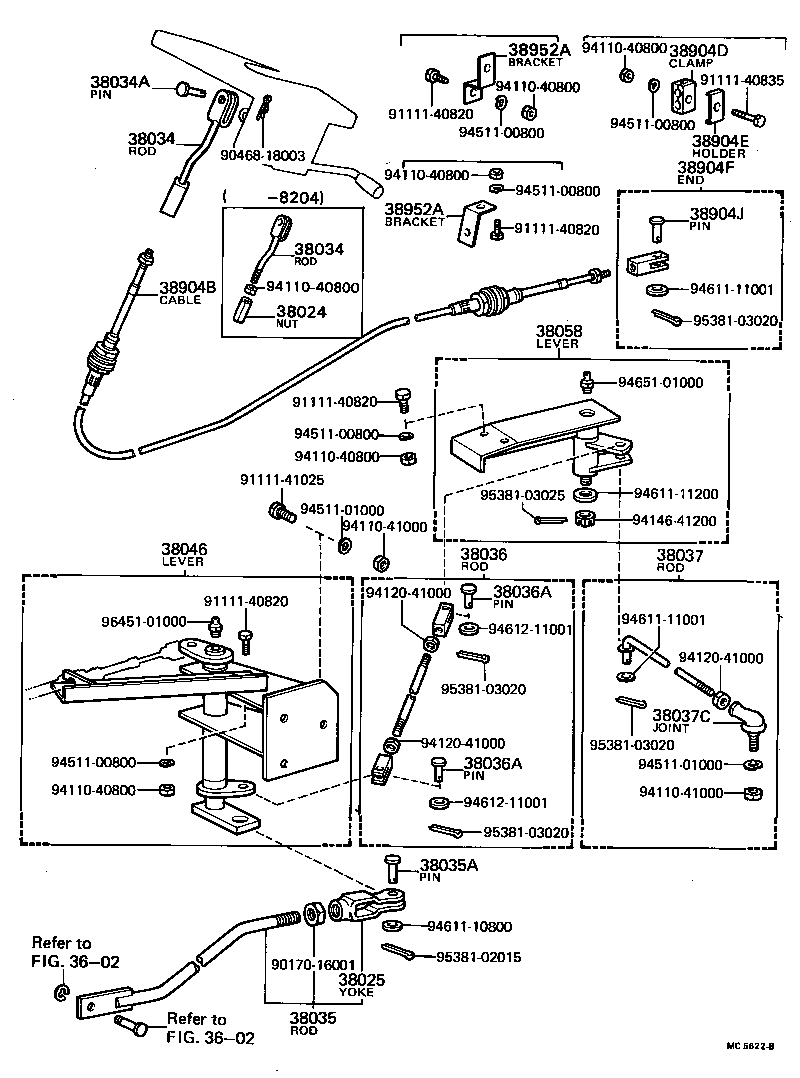

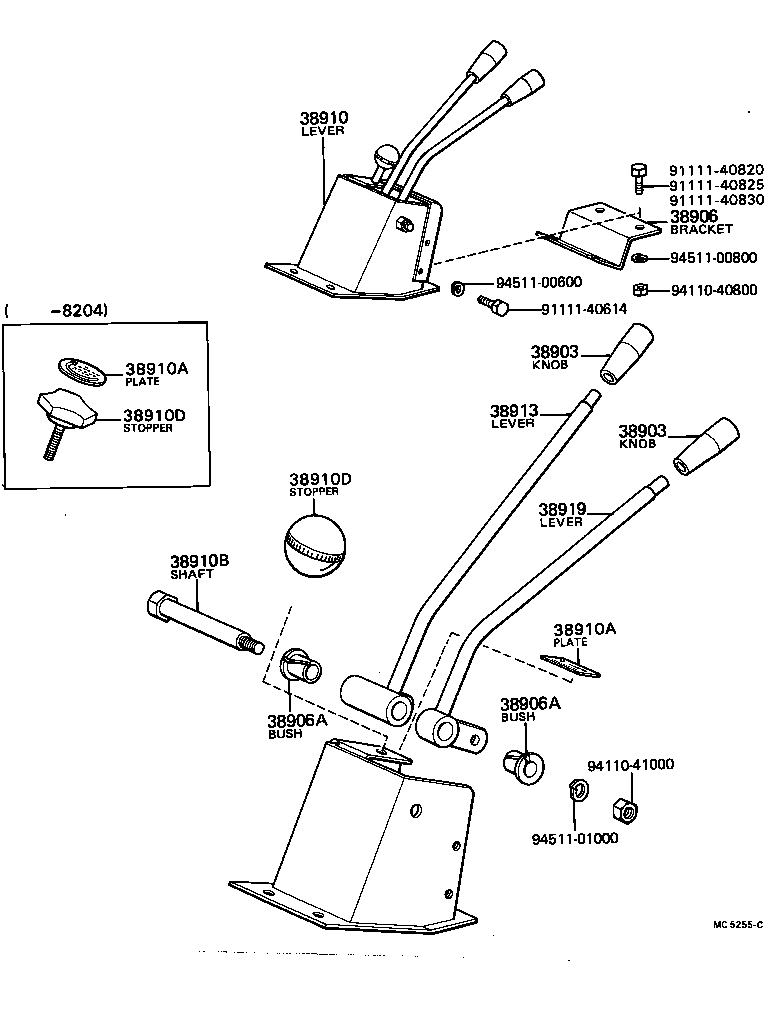

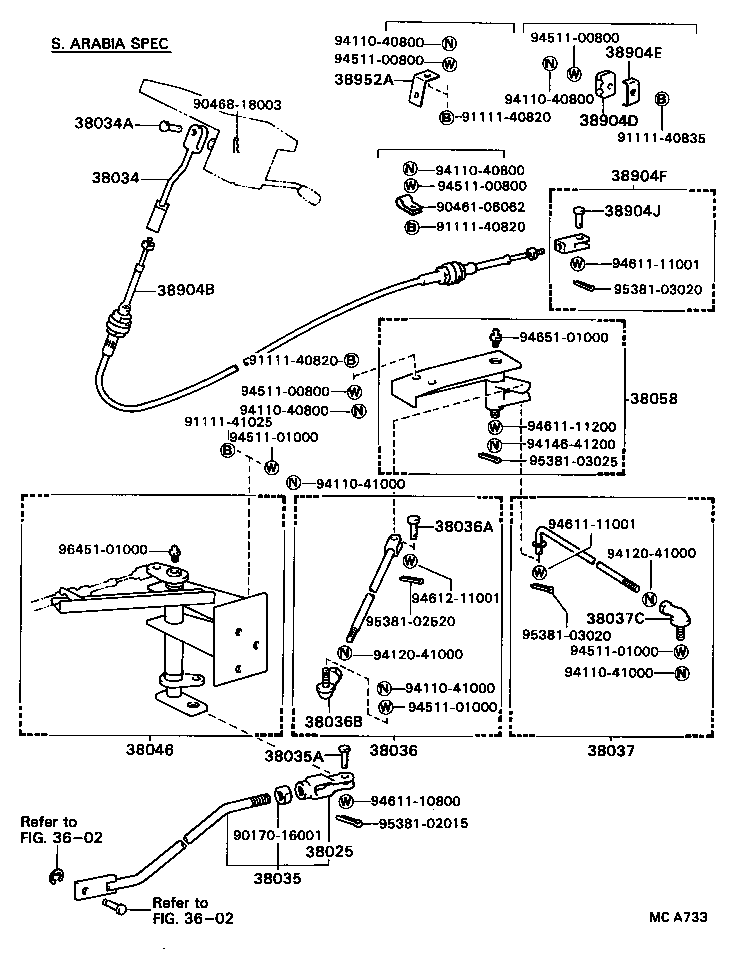

Figure MC5621B MC5621B 1978-03 → 1984-08 Figure MC5622B MC5622B 1978-03 → 1984-08 Figure MCA733 MCA733 1983-04 → 1984-08 Figure MC5255C MC5255C 1978-03 → 1984-08 Figure MC5256A MC5256A 1978-03 → 1979-06 Figure MC6661C MC6661C 1979-06 → 1984-08

Part groups

PNCDescription
38024 Nut, Control Lever
38025 Yoke, Rod Control
38034 Rod, Control Lever
38034A Pin, W/Hole (FOR CONTROL LEVER ROD)
38035 Rod Assy, Power Take-off Control
38035A Pin, W/Hole (FOR POWER TAKE-OFF CONTROL ROD)
38036 Rod Sub-assy, Valve Control, Front
38036A Pin, Valve Control Front Rod
38036B End (FOR VALVE CONTROL FRONT ROD)
38037 Rod Sub-assy, Valve Control, Rear
38037C Joint Assy, Ball (FOR VALVE CONTROL ROD)
38046 Lever Sub-assy, Power Take-off Control
38058 Lever Sub-assy, Valve Control Center
38901 Shaft Sub-assy, Control
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904D Clamp, Cable Push Pull
38904E Holder, Cable Push Pull Clamp
38904F End Assy, Push Pull Cable, NO.1
38904J Pin, W/Hole (FOR PUSH PULL CABLE)
38906 Bracket Sub-assy, Control Shaft, Lower
38906A Bush, Control Link
38910 Lever Assy, Dump
38910A Plate, Dump Lever Lock Caution
38910B Shaft, Control Lever
38910D Stopper, Control Lever
38910G Ring, E (FOR CONTROL LEVER SHAFT)
38913 Lever, Pump Control
38913A Cable Sub-assy, Push Pull (FOR PUMP CONTROL)
38913B End Assy, Control Cable, NO.1 (FOR PUMP CONTROL)
38913C End Assy, Control Cable, NO.2 (FOR PUMP CONTROL)
38919 Lever, Power Take-off Control
38919A Cable Sub-assy, Push Pull (FOR POWER TAKE-OFF CONTROL)
38919B End Assy, Control Cable, NO.1(FOR POWER TAKE-OFF CONTROL)
38919C End Assy, Control Cable, NO.2(FOR POWER TAKE-OFF CONTROL)
38925 Spring, Control Link Set
38952A Bracket, Control Cable Clamp, NO.1
38952B Bracket, Control Cable Clamp, NO.2
38952C Bracket, Control Cable Clamp, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
