Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 3 illustrations

Illustrations

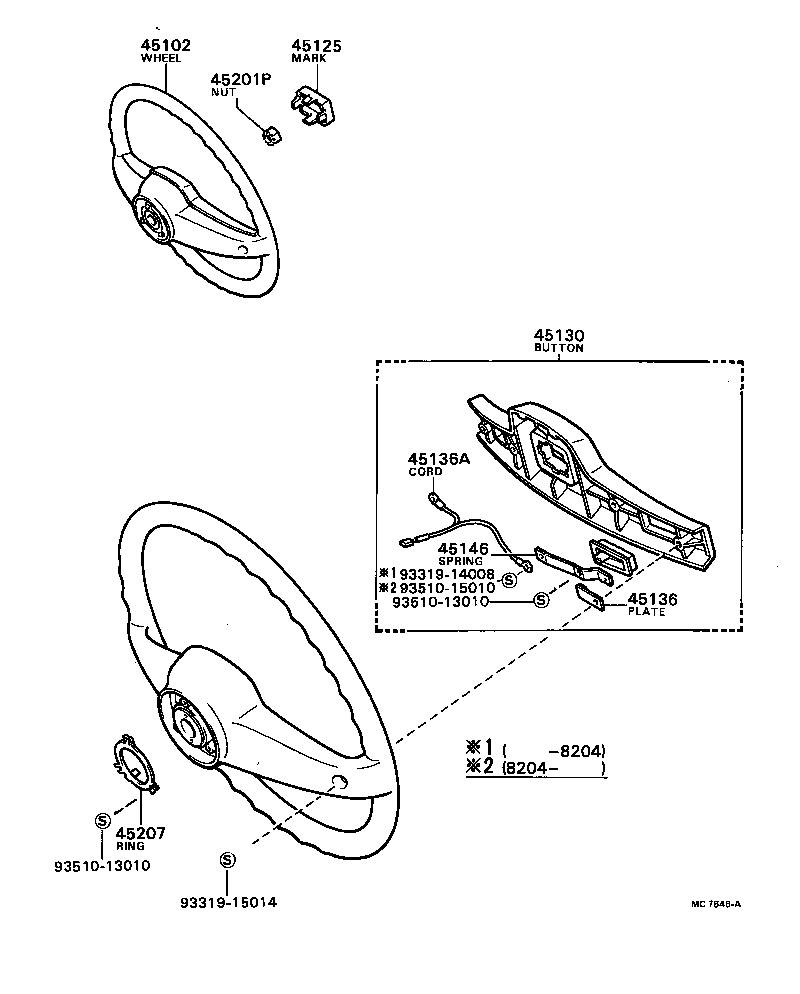

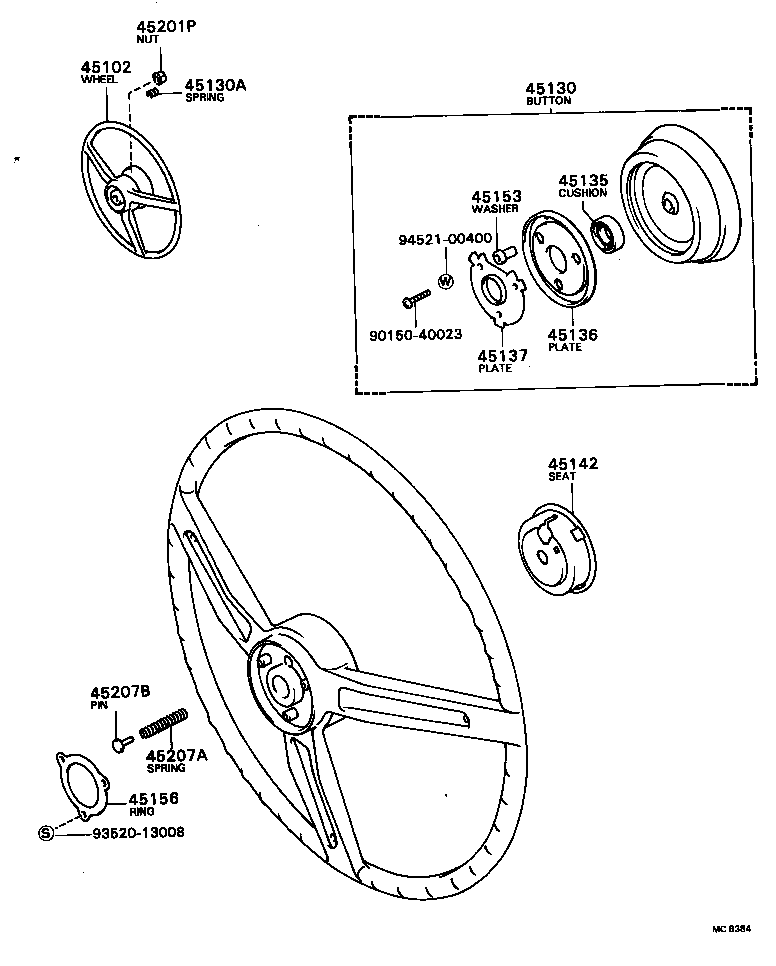

Figure MC5279A MC5279A 1977-08 → 1980-08 Figure MC7646A MC7646A 1980-08 → — Figure MC8384 MC8384 1982-04 → 1984-08

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45135 Cushion, Horn Button
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45137 Plate, Horn Button Stop
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45153 Washer, Horn Button Set
45156 Seat, Horn Lead Spring
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45207A Spring, Compression(FOR HORN EARTH)
45207B Pin, W/Head(FOR HORN EARTH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
