Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

57 part groups · 8 illustrations

Illustrations

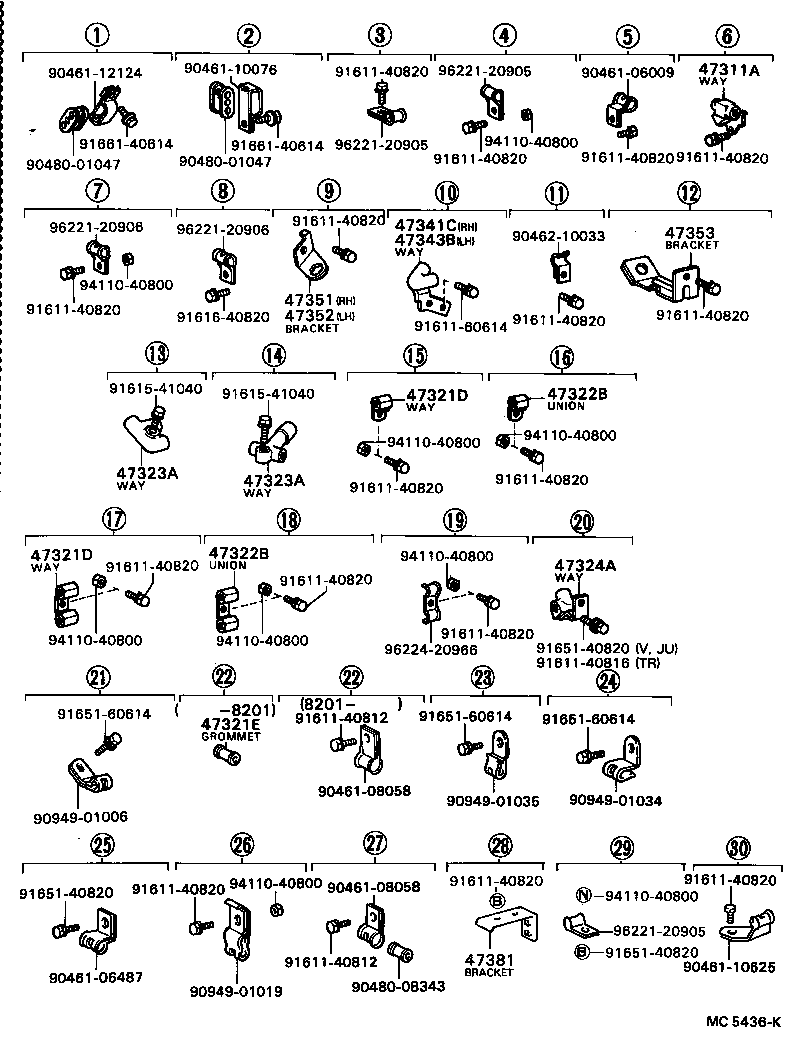

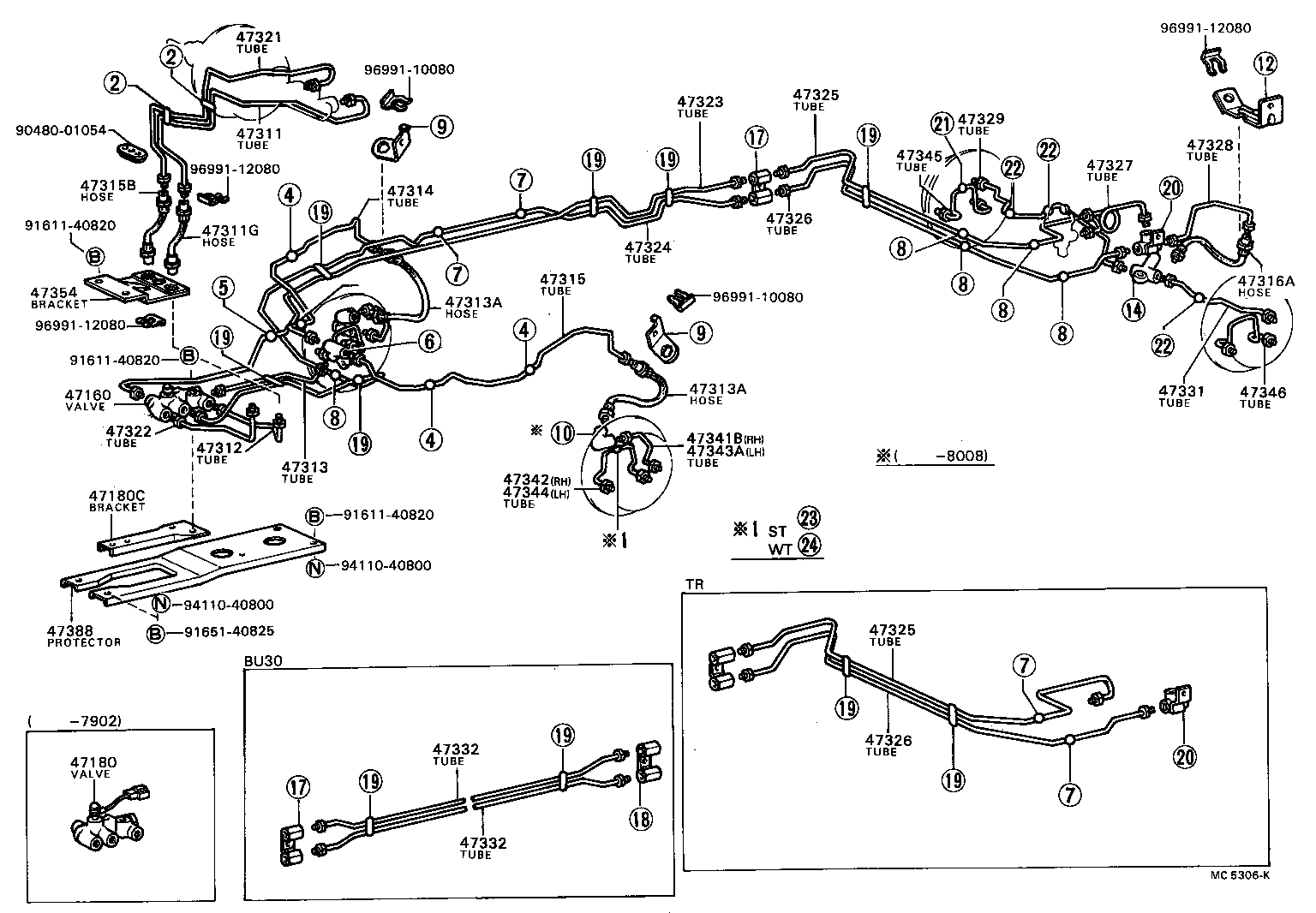

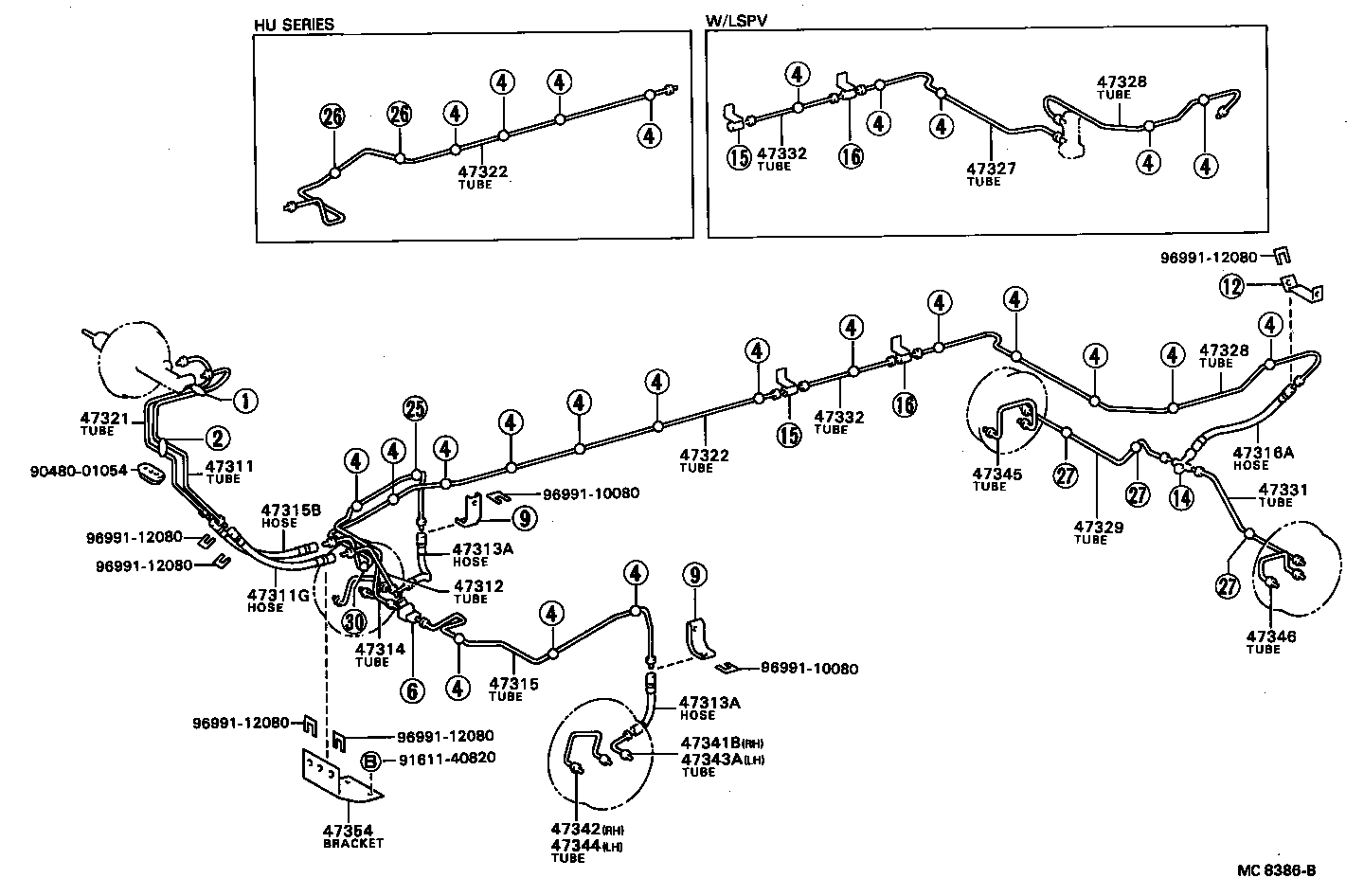

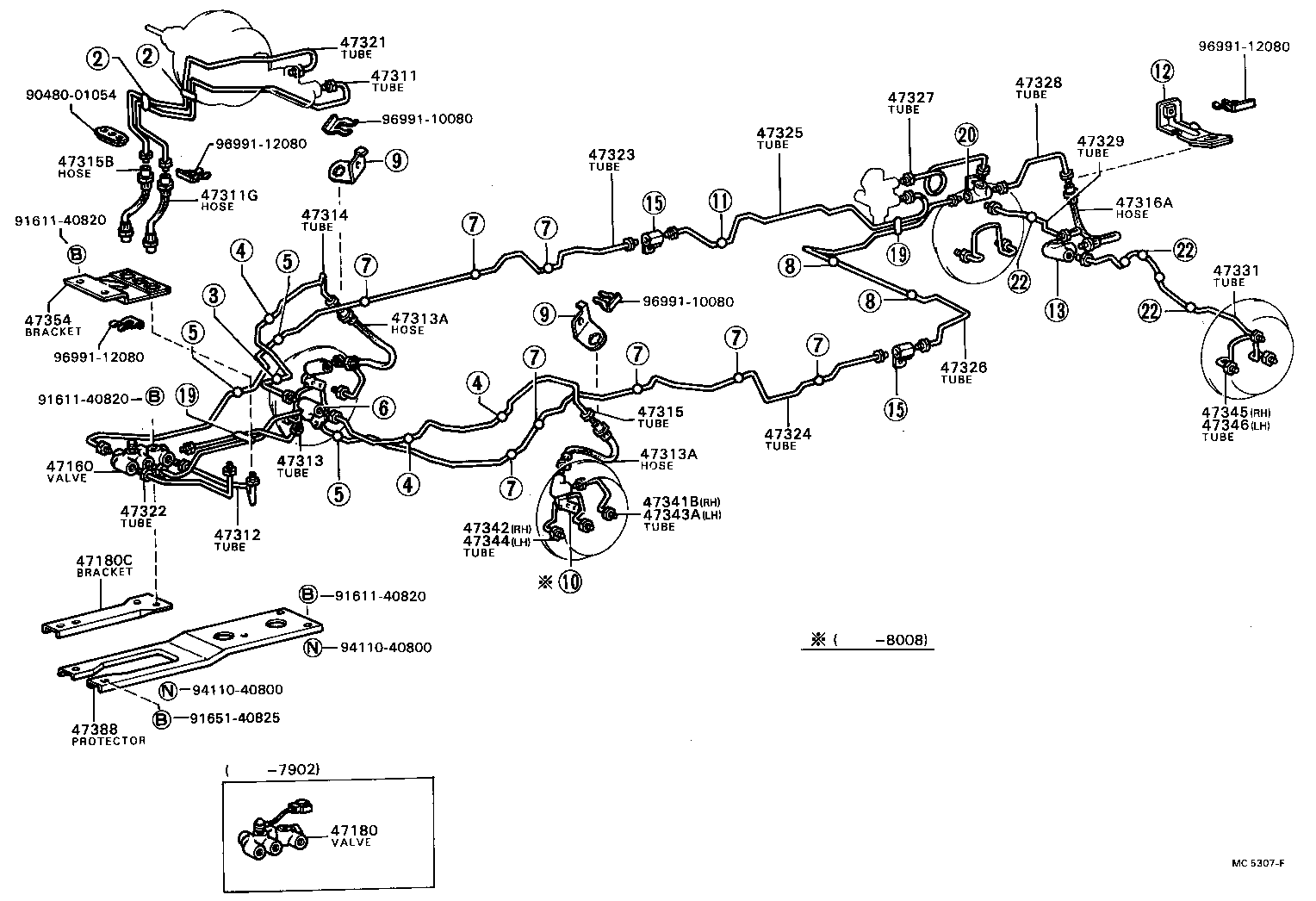

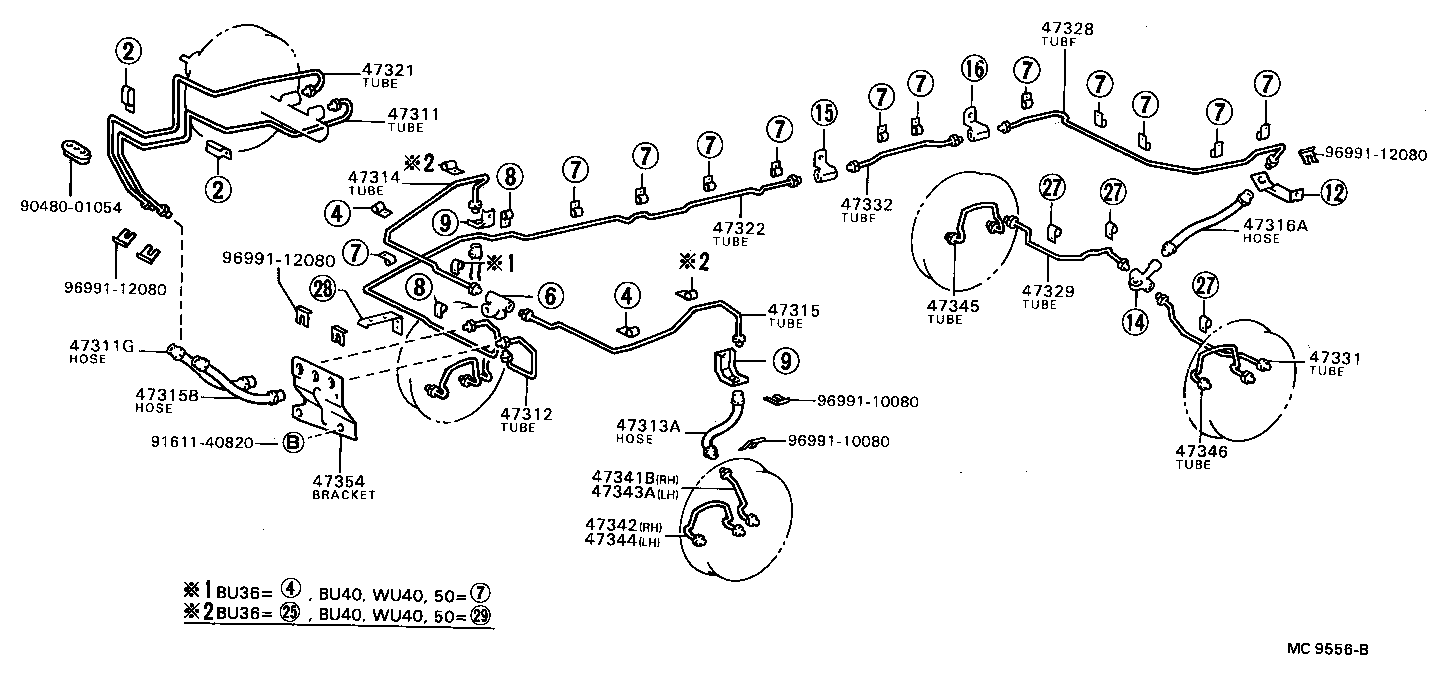

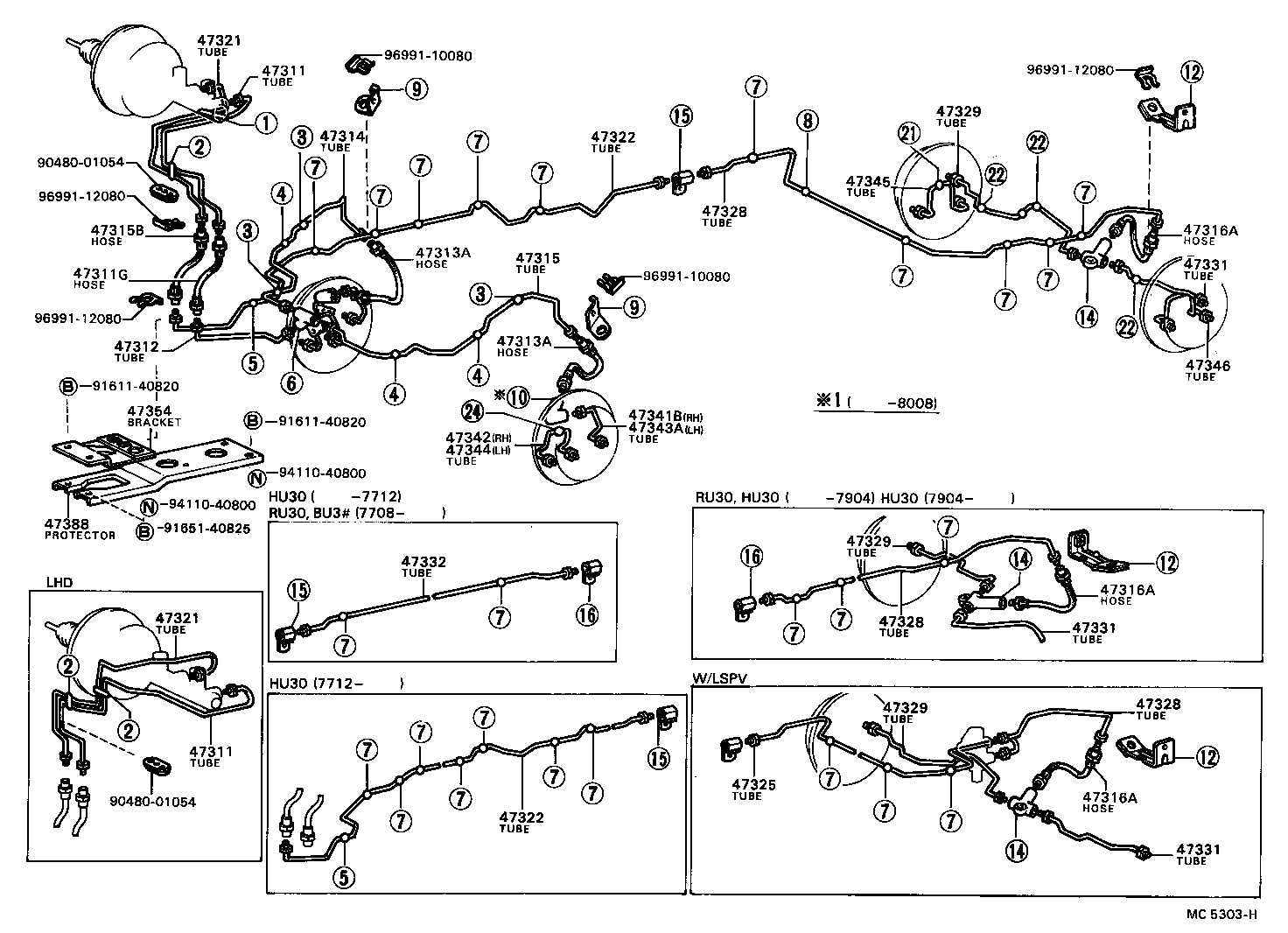

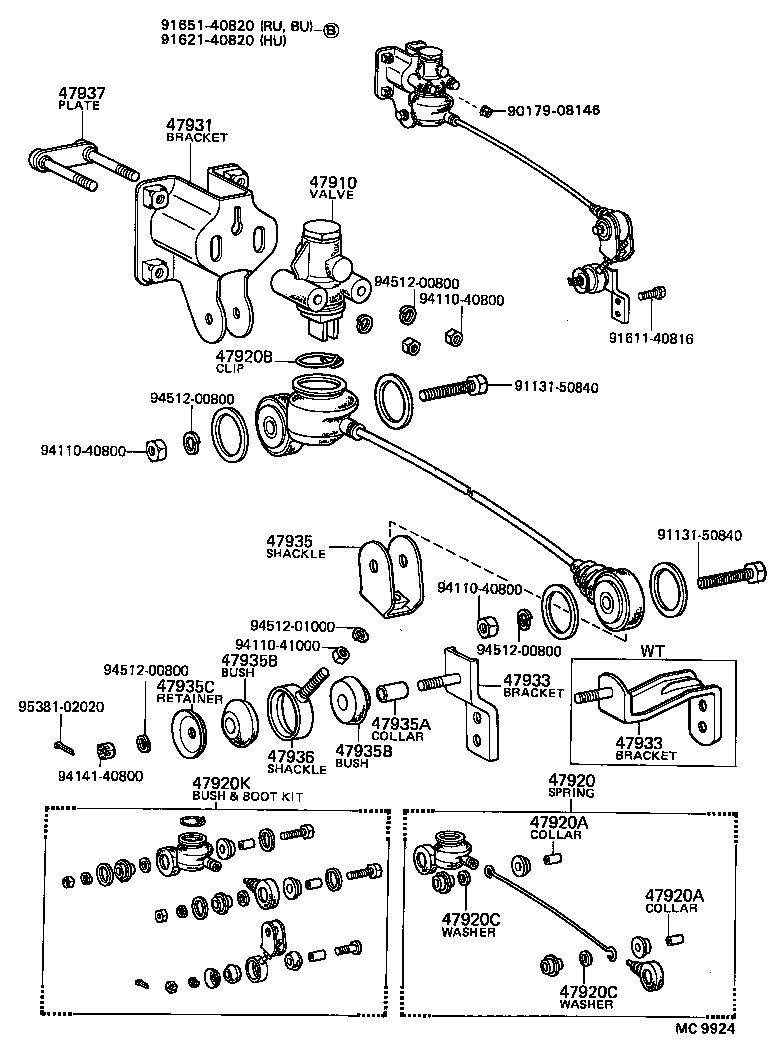

Figure MC5302J MC5302J 1977-08 → — Figure MC5303H MC5303H 1977-08 → — Figure MC5306K MC5306K 1977-08 → 1984-08 Figure MC5307F MC5307F 1977-08 → 1979-04 Figure MC8386B MC8386B 1982-04 → 1984-08 Figure MC9556B MC9556B 1983-02 → 1984-08 Figure MC5436K MC5436K 1977-08 → — Figure MC9924 MC9924 1977-08 → 1984-08

Part groups

PNCDescription
47160 Valve Assy, By-pass
47180 Valve,Assy, Brrke Pressure Differential
47180C Bracket, Brake Pressure Differential Valve
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315B Hose, Flexible(FOR BRAKE TUBE)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321E Grommet(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47324A Way, NO.4(FOR REAR BRAKE TUBE)
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47341B Tube, Wheel Cylinder, Front RH NO.1
47341C Way(FOR WHEEL CYLINDER FRONT RH TUBE)
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47343B Way(FOR WHEEL CYLINDER FRONT LH TUBE)
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47354 Bracket, Front Flexible Hose
47381 Bracket, Brake Tube Clamp NO.1
47388 Protector, Brake Tube, Lower
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47920K Bush & Boot Kit, Load Sensing Spring
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
