Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

12 part groups · 4 illustrations

Illustrations

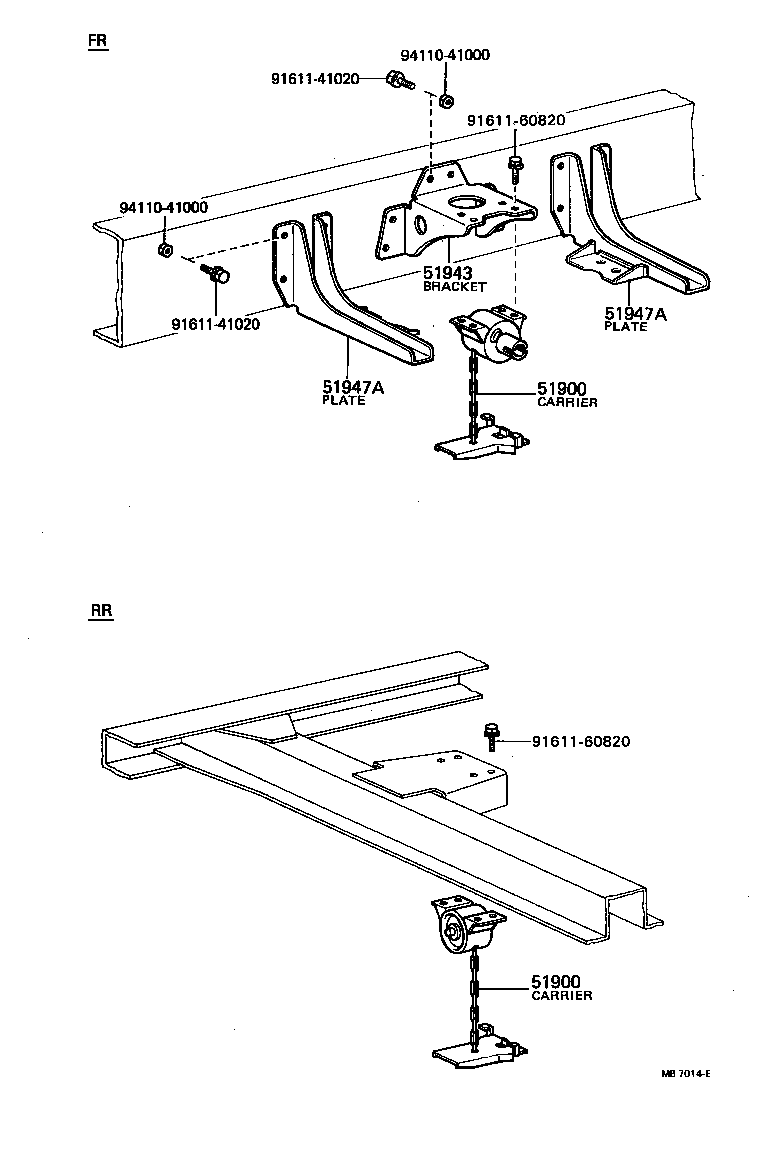

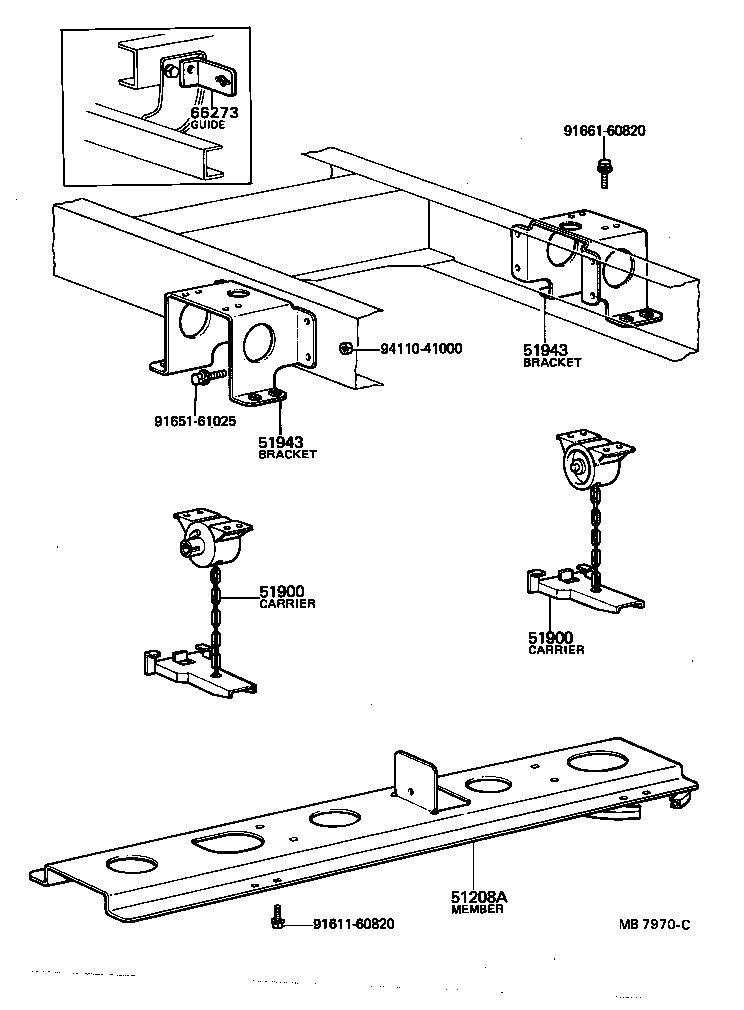

Figure MB9708E MB9708E 1977-08 → — Figure MB7014E MB7014E 1983-02 → 1984-08 Figure MB7970C MB7970C 1983-02 → 1984-08 Figure MBG143A MBG143A 1983-08 → 1984-08

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51905 Shaft Sub-assy, Spare Wheel Carrier Hanger
51913 Plate, Spare Wheel Clamp
51933 Bolt, Spare Wheel Carrier Eye
51934 Seat, Eye Bolt Clamp
51935 Nut, Spare Wheel Carrier Eye
51936 Bracket, Spare Wheel Carrier
51943 Bracket, Spare Wheel Carrier, NO.1
51947A Plate, Spare Wheel Carrier Hinge
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
