Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

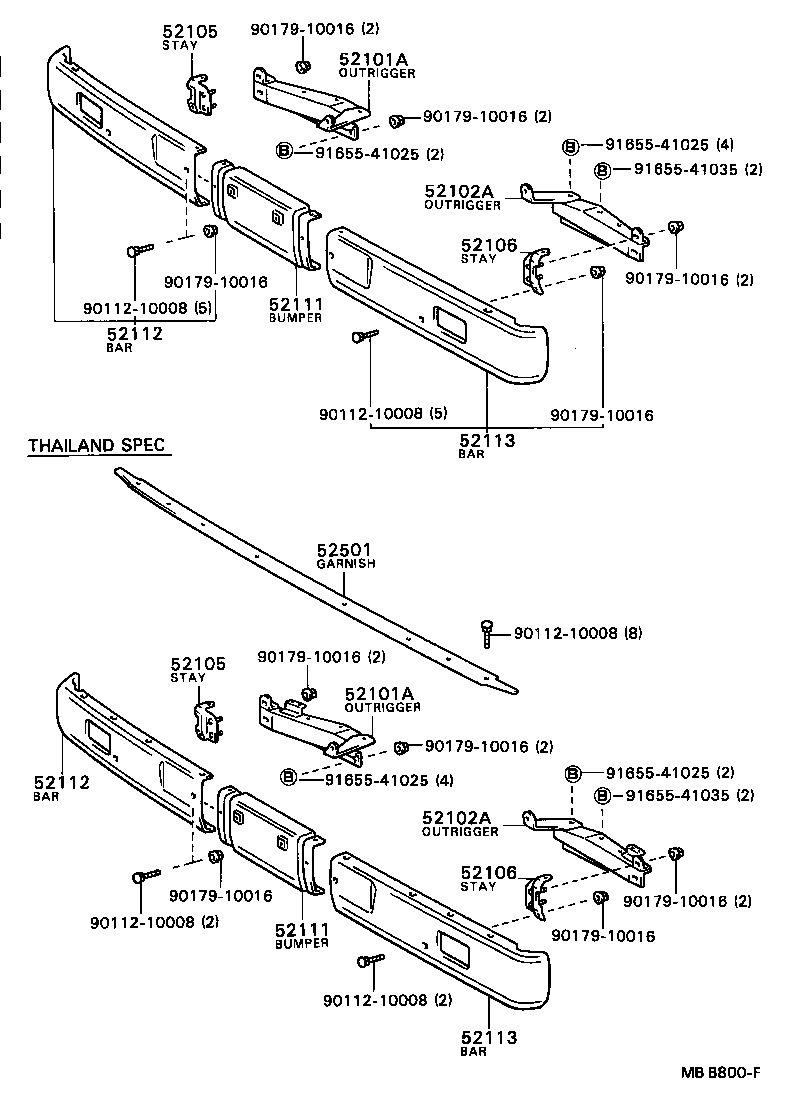

Figure MBF174 MBF174 1977-08 → — Figure MBB800F MBB800F 1982-04 → 1984-08

Part groups

PNCDescription
52101A Outrigger Sub-assy, Front Bumper, RH
52102A Outrigger Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112 Bar, Front Bumper, RH
52113 Bar, Front Bumper, LH
52119 Stay, Front Bumper, Center
52501 Filler Sub-assy, Front Bumper
53934A Bracket, Apron Grille, Lower
53935A Apron, Grille Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
