Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

11 part groups · 3 illustrations

Illustrations

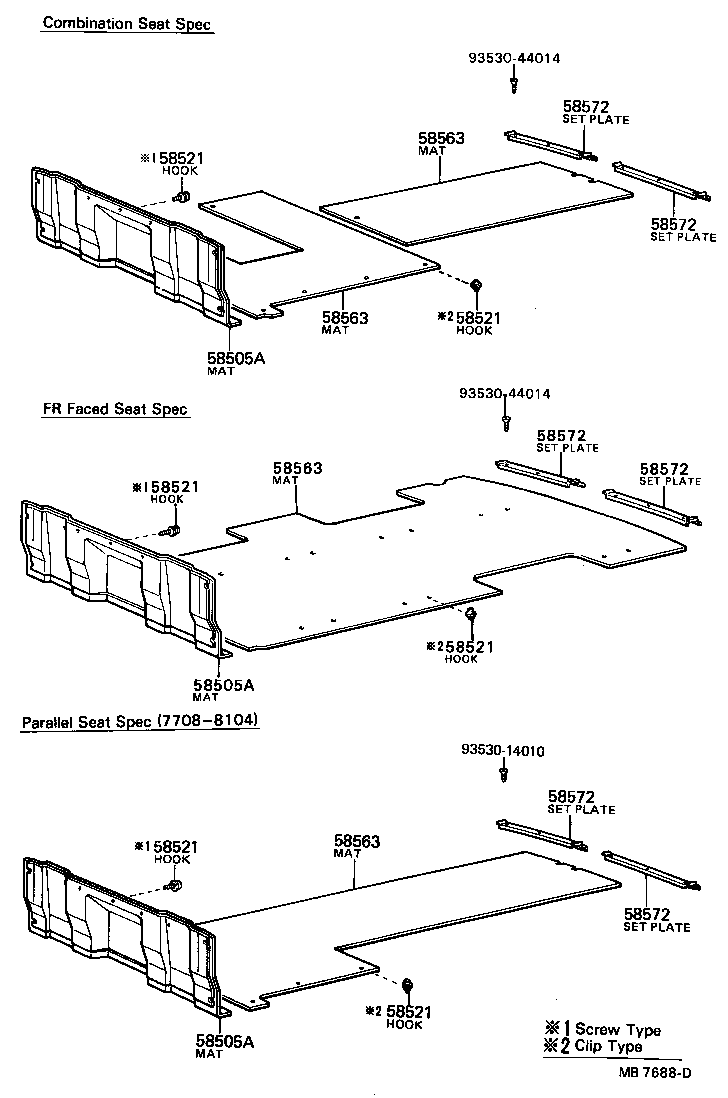

Figure MB9702F MB9702F 1977-08 → — Figure MB7688D MB7688D 1977-08 → 1981-04 Figure MB7688D MB7688D 1981-04 → 1984-08

Part groups

PNCDescription
55211 Silencer, Front Panel
58505A Mat Sub-assy, Header
58511 Mat, Floor, Front
58521 Hook, Male, NO.1
58528 Mat, Rear Door Step
58530A Mat Assy, Transmission Cover
58551 Mat, Floor, Rear
58552 Mat, Rear Seat Side, RH
58553 Mat, Rear Seat Side, LH
58563 Mat, Rear Floor
58572 Set Plate, Rear Floor Mat, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
