Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03

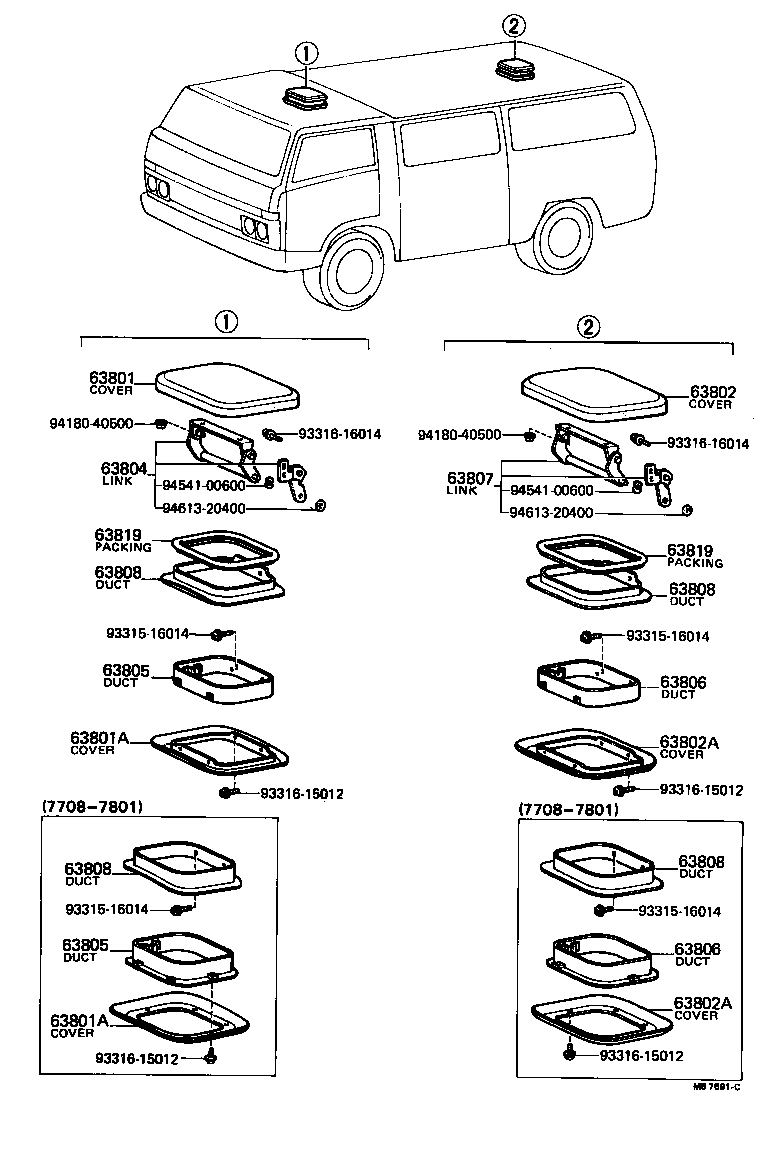

Rear Ventilator & Roof Ventilator
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62902 | Ornament Sub-assy, Rear Ventilator, LH |
| 62930D | Gasket, Roof Side Vent Duct |
| 62940 | Duct Assy, Roof Side Vent, LH |
| 63801 | Cover Sub-assy, Roof Ventilator, Front |
| 63801A | Cover, Roof Ventilator, Inner Front |
| 63802 | Cover Sub-assy,Roof Ventilator, Rear |
| 63802A | Cover, Roof Ventilator, Inner Rear |
| 63804 | Link Sub-assy, Roof Ventilator, Front |
| 63805 | Duct Sub-assy, Roof Ventilator, Inner Front |
| 63806 | Duct Sub-assy, Roof Ventilator, Inner Rear |
| 63807 | Link Sub-assy, Roof Ventilator, Rear |
| 63808 | Duct Sub-assy, Roof Ventilator, Outer |
| 63819 | Packing, Roof Ventilator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
