Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

29 part groups · 7 illustrations

Illustrations

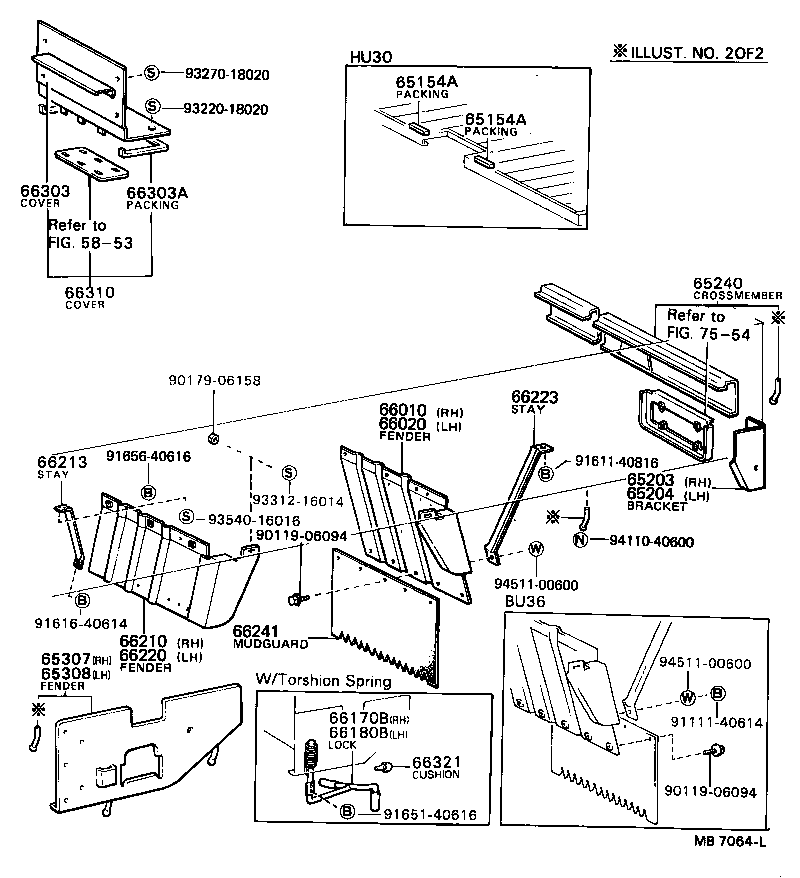

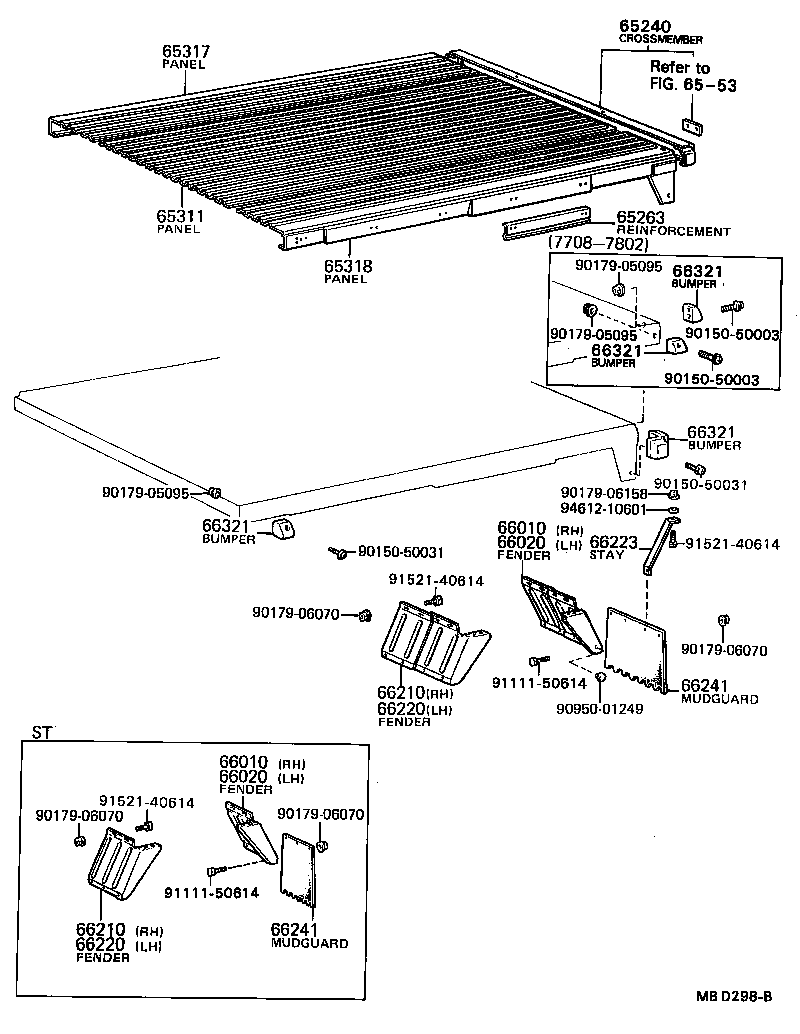

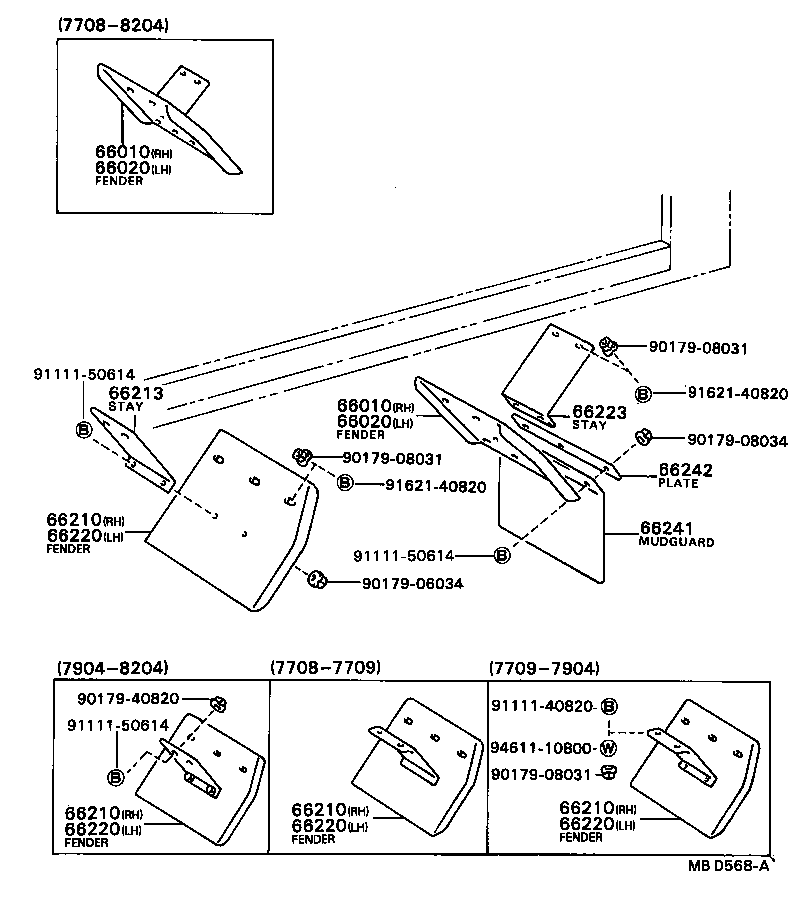

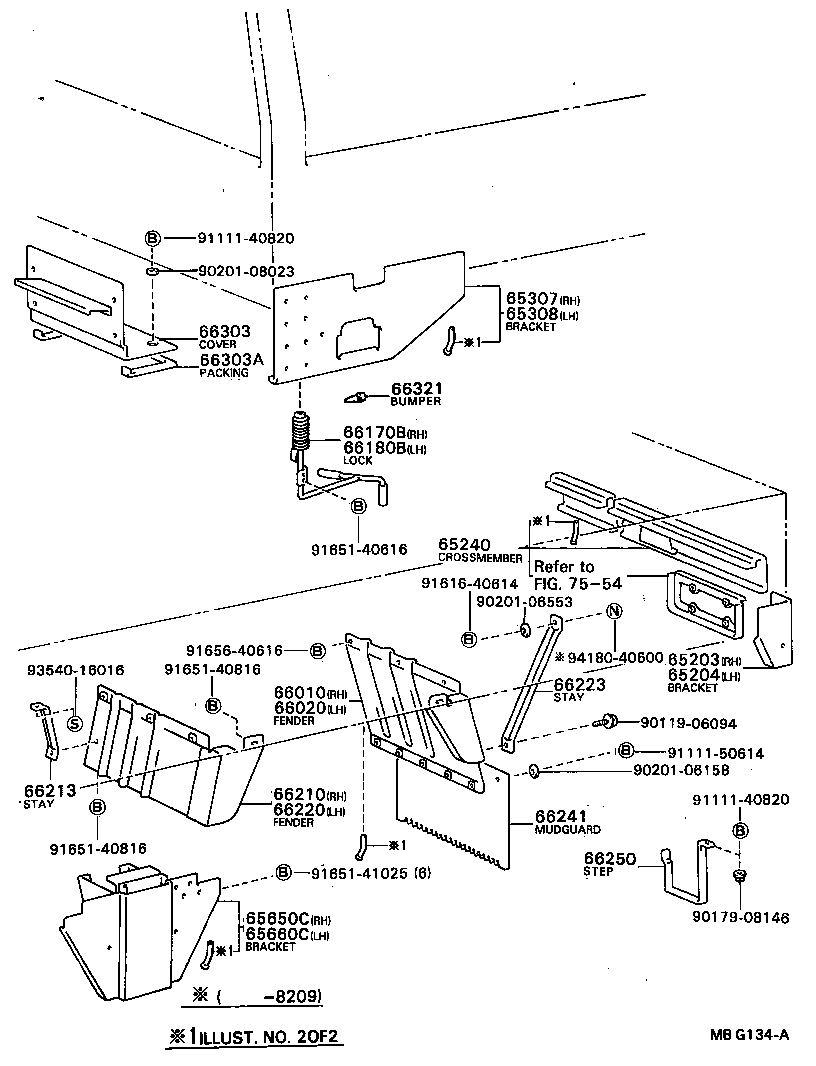

Figure MBD300B MBD300B 1977-08 → — Figure MBD298B MBD298B 1977-08 → 1984-08 Figure MBE970A MBE970A 1983-02 → 1984-08 Figure MB7064L MB7064L 1977-08 → 1984-08 Figure MBG134A MBG134A 1982-04 → 1984-08 Figure MBD568A MBD568A 1978-03 → 1984-08 Figure MBG133 MBG133 1982-12 → 1984-08

Part groups

PNCDescription
65154A Packing, Cross Sill, NO.1
65203 Bracket Sub-assy, Gate Bumper, RH
65204 Bracket Sub-assy, Gate Bumper, LH
65240 Crossmember, Rear Body Floor, Tail
65263 Reinforcement, Floor Side Frame
65307 Bracket Sub-assy, Guad Frame, RH
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65650C Bracket Assy, Center Column, RH
65660C Bracket Assy, Center Column, LH
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66170B Lock Assy, Side Gate, RH
66180B Lock Assy, Side Gate, LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66250 Step Assy, Rear
66303 Cover Sub-assy, Engine Service Hole
66303A Packing, Engine Service Hole Cover
66310 Cover Assy, Engine Service Hole
66311A Hook, Rope, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
