Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

32 part groups · 7 illustrations

Illustrations

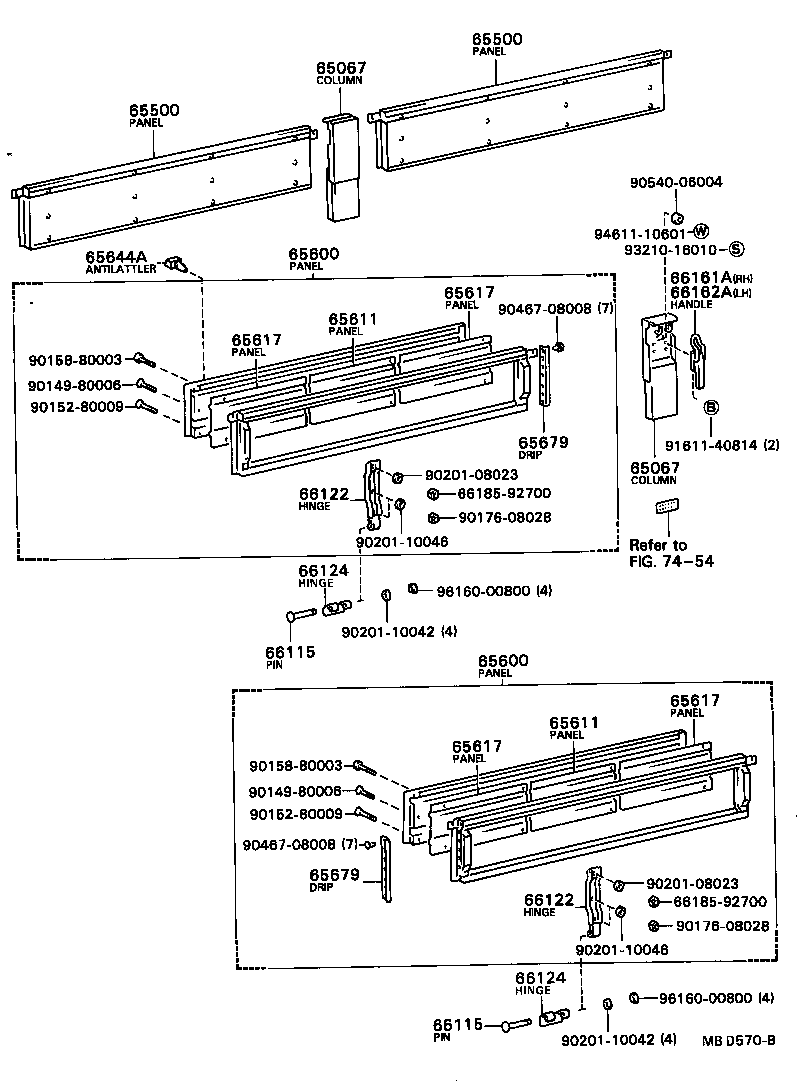

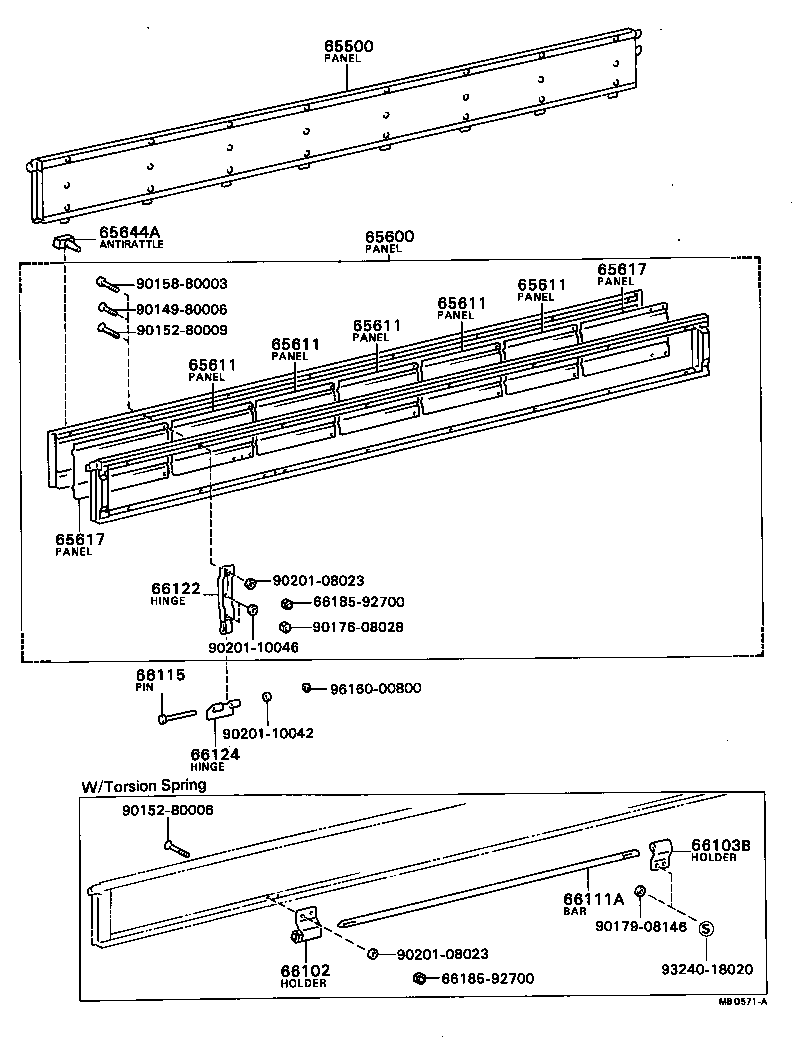

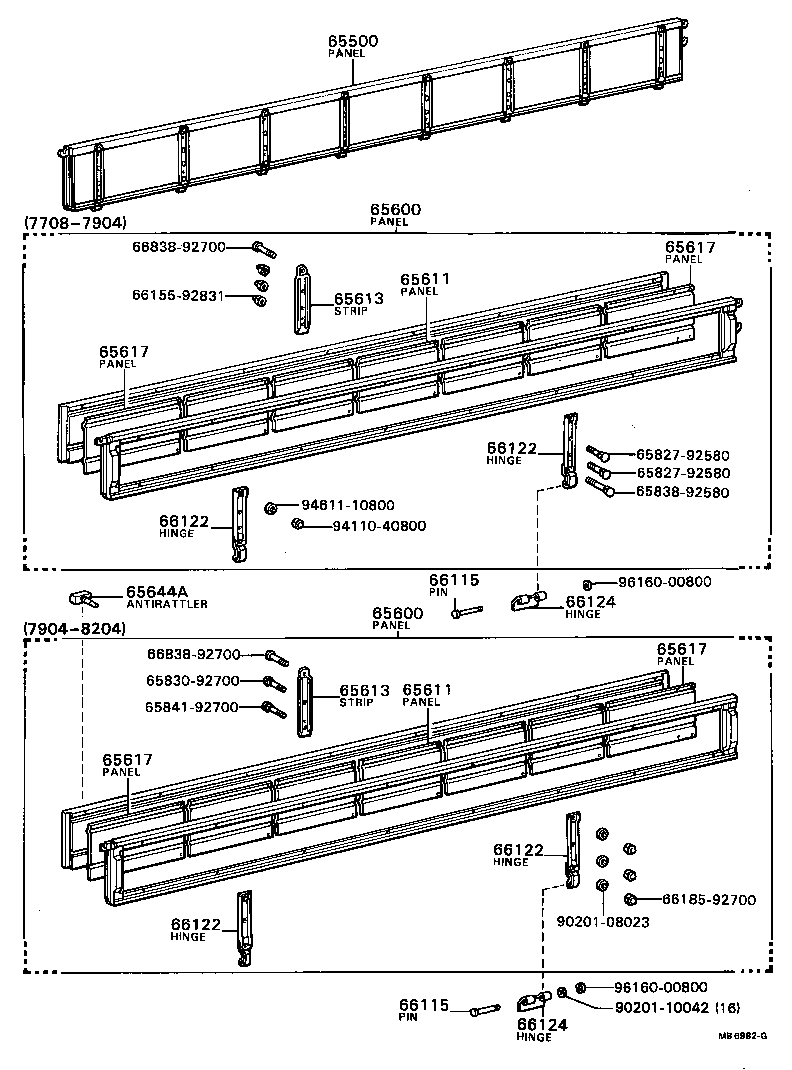

Figure MB7074B MB7074B 1977-08 → — Figure MB7073A MB7073A 1977-08 → 1984-08 Figure MBE972 MBE972 1983-02 → 1984-08 Figure MB6982G MB6982G 1977-08 → 1982-04 Figure MBD571A MBD571A 1982-04 → 1984-08 Figure MB8011A MB8011A 1978-03 → 1984-08 Figure MBD570B MBD570B 1982-04 → 1984-08

Part groups

PNCDescription
65067 Column Sub-assy, Center
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65350 Cover Assy, Battery Service Hole
65352 Packing, Battery Service Hole Cover
65500 Panel Assy, Rear Body Side, RH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65611 Panel, Side Gate
65613 Strip, Side Gate Hinge, Inside
65617 Panel, Side Gate, Corner
65644A Anti-rattler, Side Gate
65679 Drip, Side Gate
66102 Holder Sub-assy, Torsion Bar, Front
66103B Holder Sub-assy, Torsion Bar, Rear
66111A Bar, Torsion Hinge
66115 Pin, Gate Hinge
66120 Hinge Assy, Side Gate
66120B Retainer, Side Gate Hinge, Lower
66122 Hinge, Side Gate, Male
66124 Hinge, Side Gate, Female
66124B Hinge, Side Gate, Female
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66161A Handle, Side Gate Latch, RH
66162A Handle, Side Gate Latch, LH
66311 Hook, Rope
66321B Bumper, Gate Rubber
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
