Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

27 part groups · 10 illustrations

Illustrations

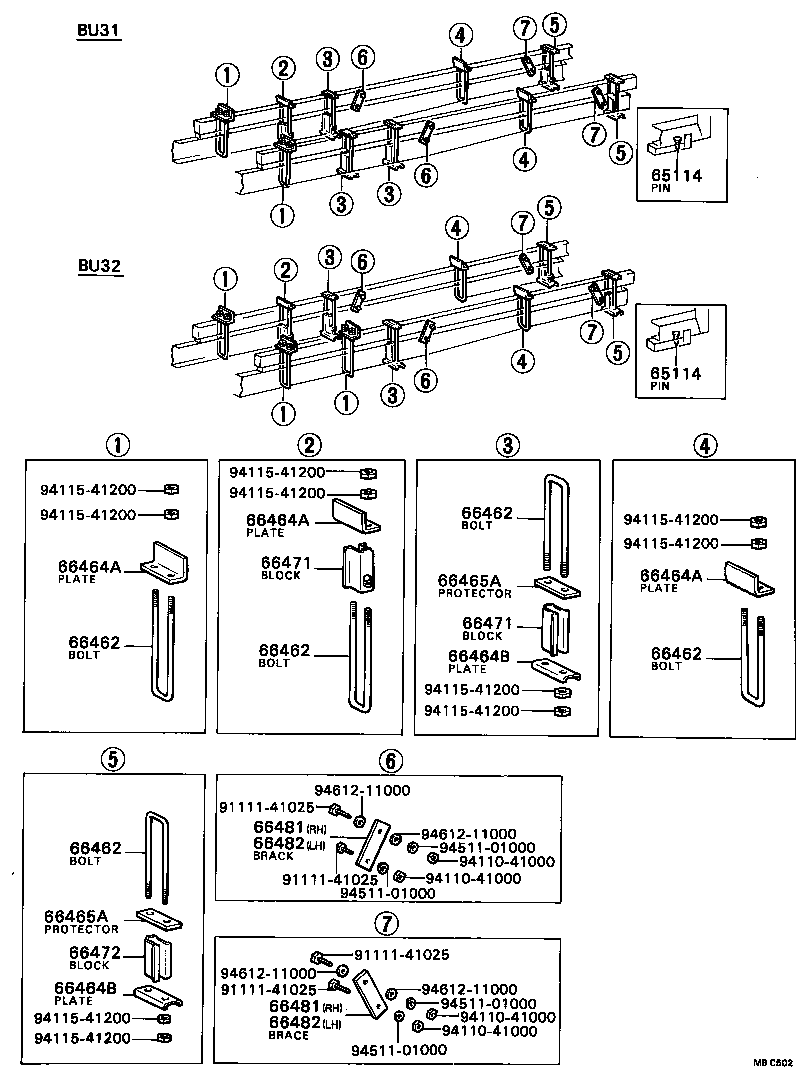

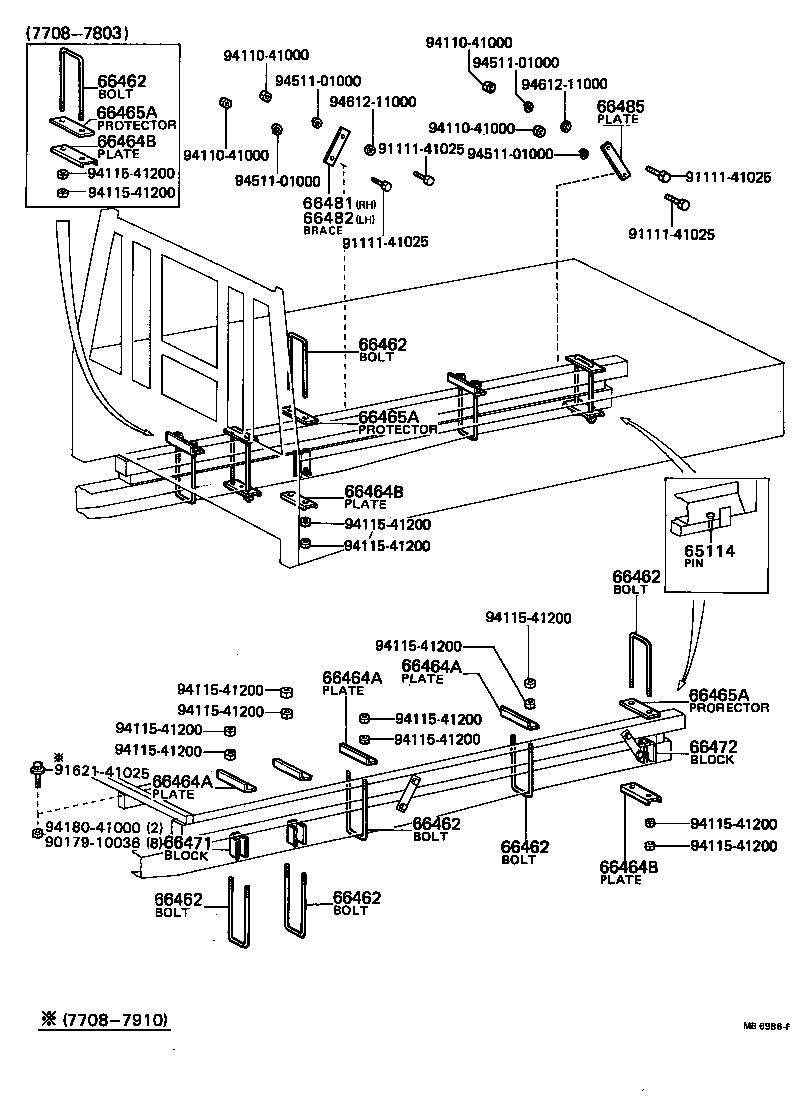

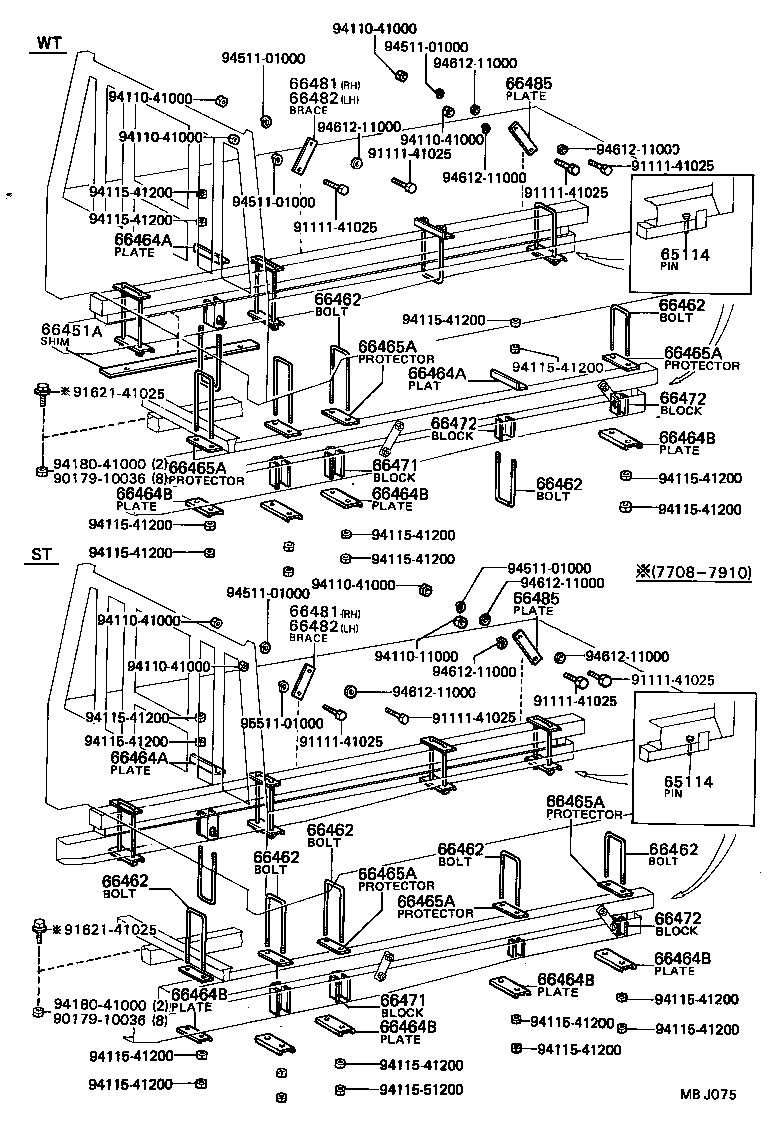

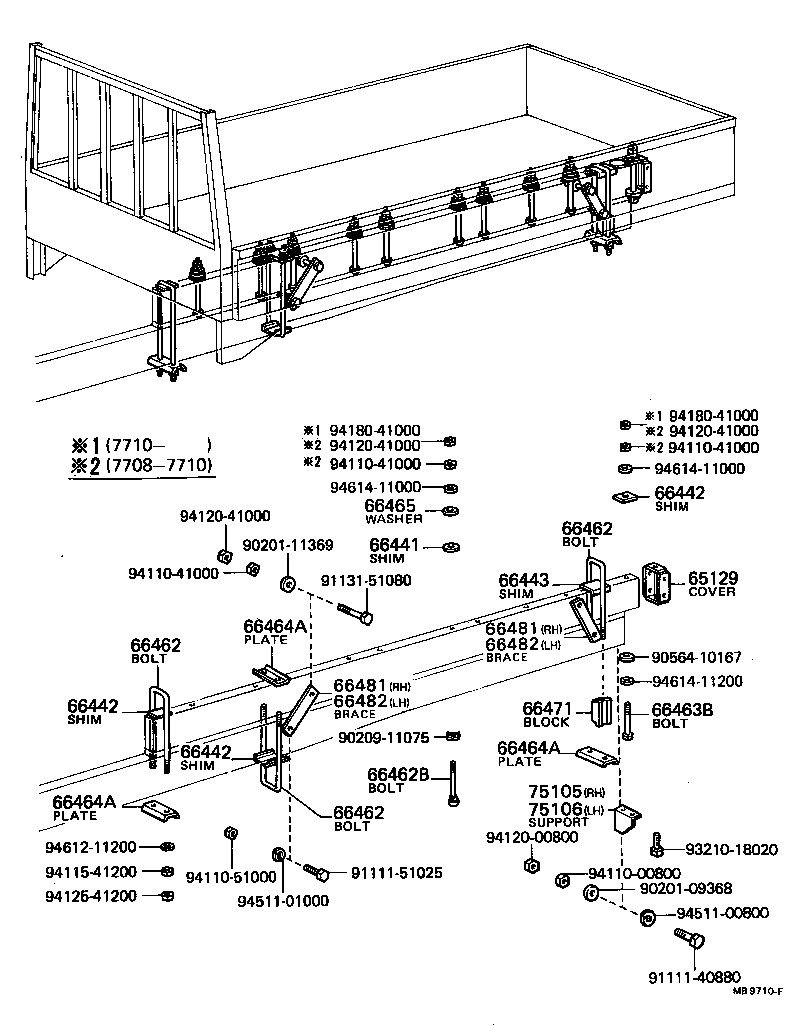

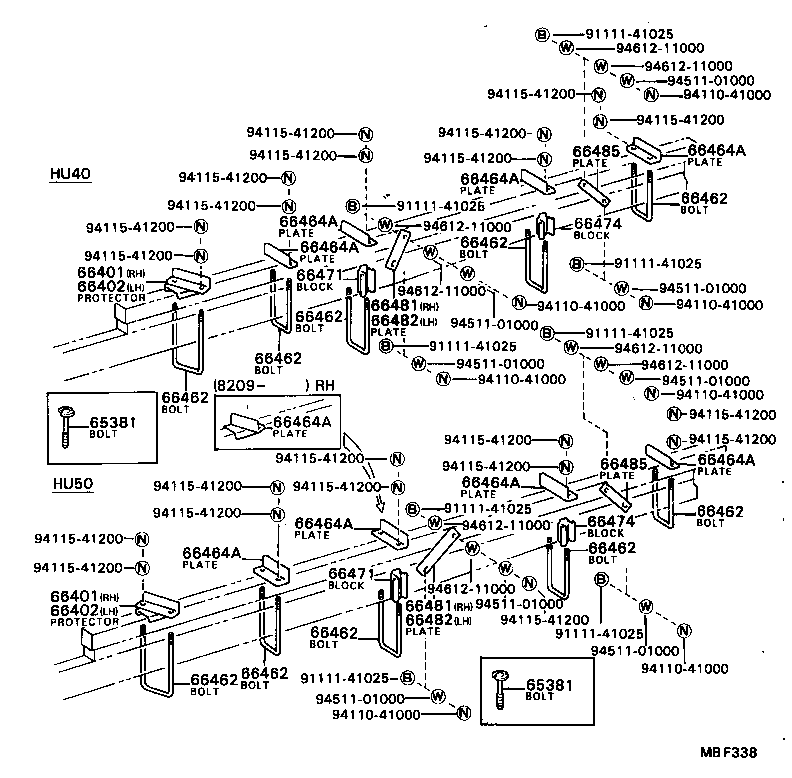

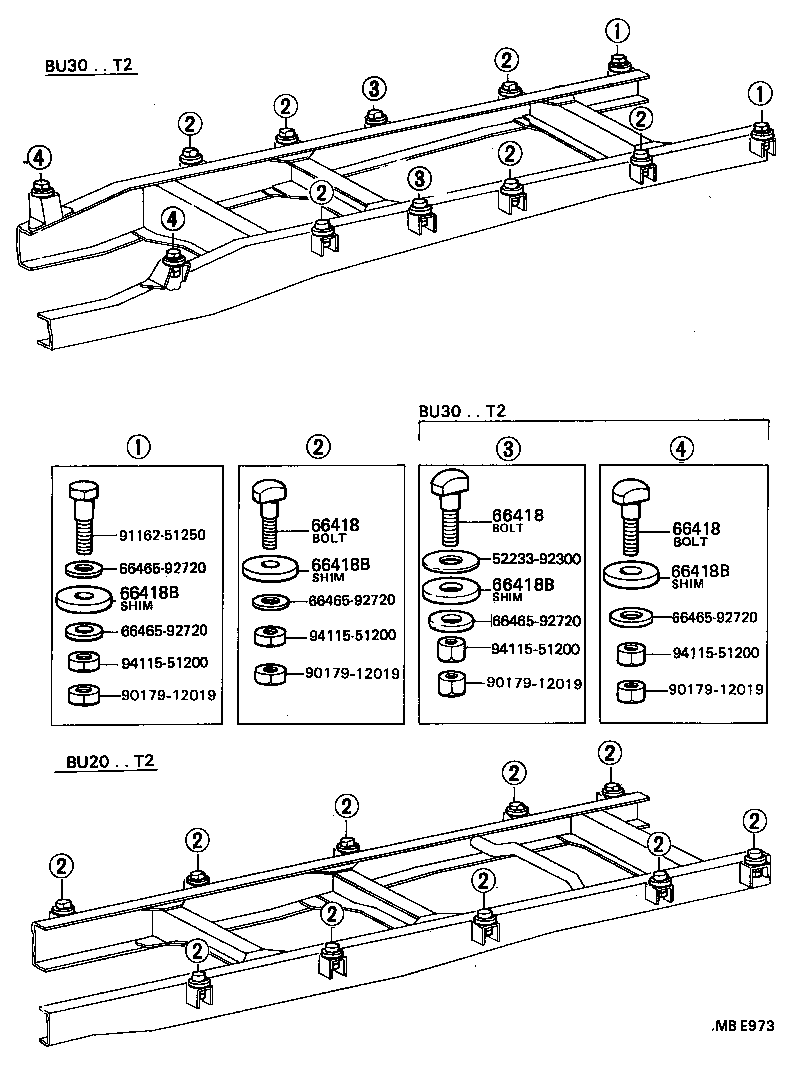

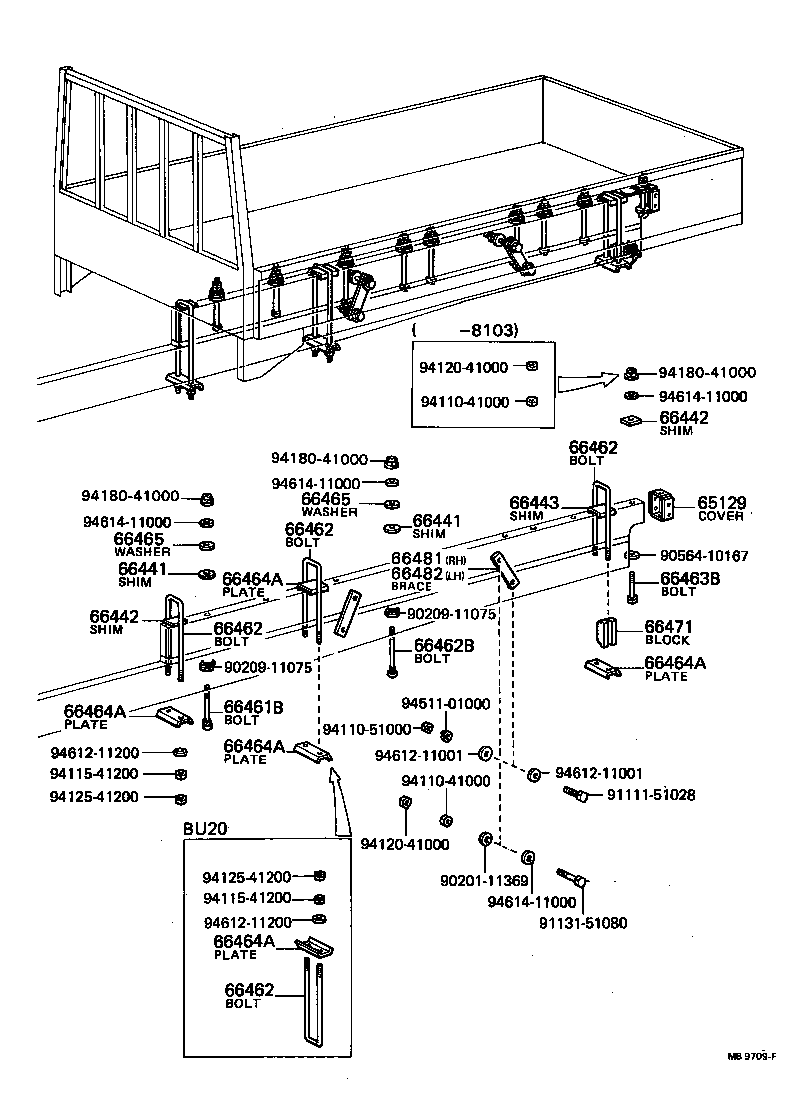

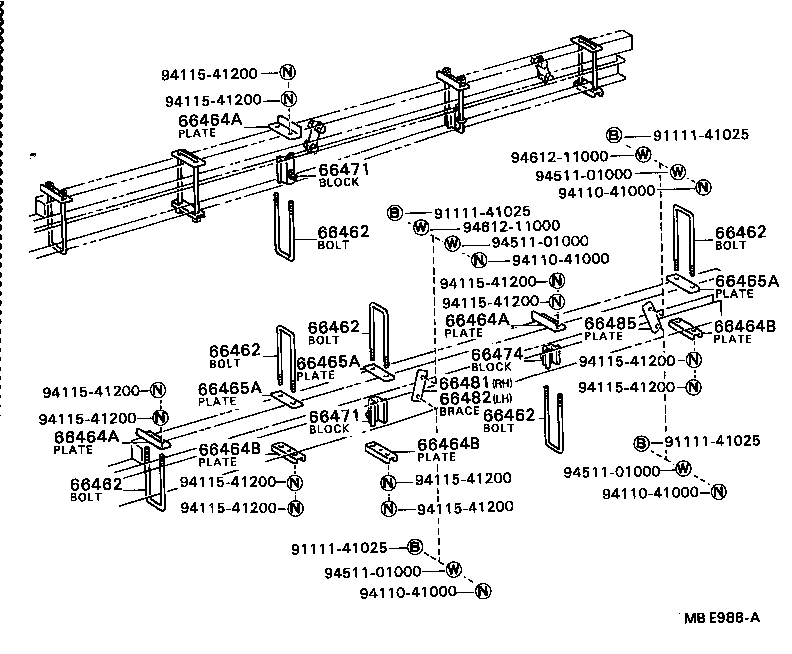

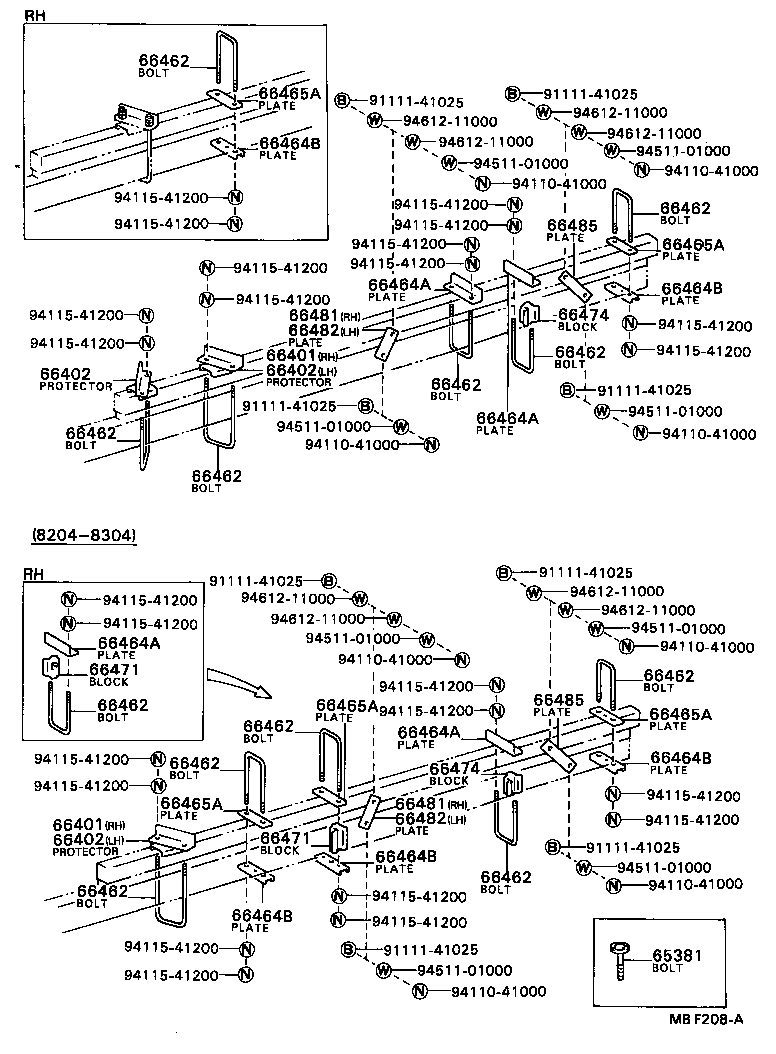

Figure MB7180C MB7180C 1977-08 → — Figure MB9709F MB9709F 1977-08 → 1984-08 Figure MBE973 MBE973 1983-02 → 1984-08 Figure MB9710F MB9710F 1977-08 → 1984-08 Figure MBJ075 MBJ075 1977-08 → 1984-08 Figure MBC502 MBC502 1981-04 → 1984-08 Figure MBE988A MBE988A 1983-02 → 1984-08 Figure MB6986F MB6986F 1977-08 → 1981-04 Figure MBF208A MBF208A 1982-04 → 1984-08 Figure MBF338 MBF338 1982-04 → 1984-08

Part groups

PNCDescription
65114 Pin, Main Sill, Anchor
65129 Cover, Main Sill Rear End
65381 Bolt, Wood Cross Sill
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66418B Shim, Mounting
66441 Shim, Mounting, NO.1
66442 Shim, Mounting, NO.2
66443 Shim, Mounting, NO.3
66451A Shim, Wood Main Sill, Lower Front
66461B Bolt, Sill Main, NO.1
66462 Bolt, U(FOR MAIN SILL)
66462B Bolt, Sill Main, NO.2
66463B Bolt, Sill Main, NO.3
66464A Plate, U Bolt
66464B Plate, U Bolt, NO.1
66465 Washer, Plate(FOR DECK MOUNTING)
66465A Protector, U Bolt
66471 Block, U Bolt, NO.1
66472 Block, U Bolt, NO.2
66474 Block, U Bolt, NO.4
66481 Brace, Sill TO Frame, RH
66482 Brace, Sill TO Frame, LH
66485 Plate, Body Slide Stop
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
