Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03

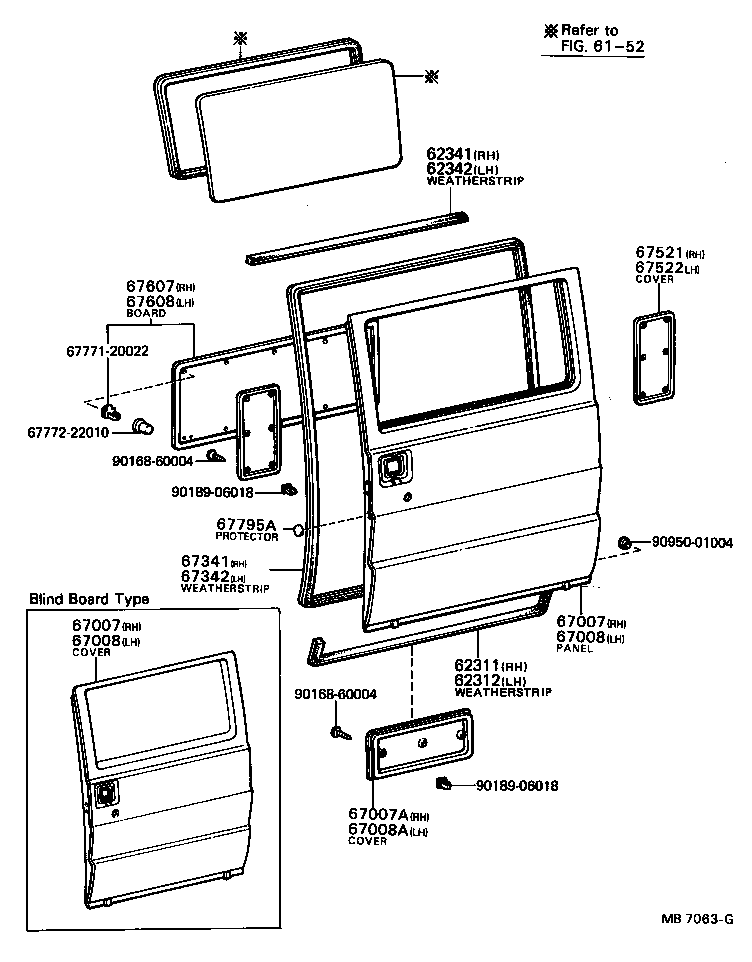

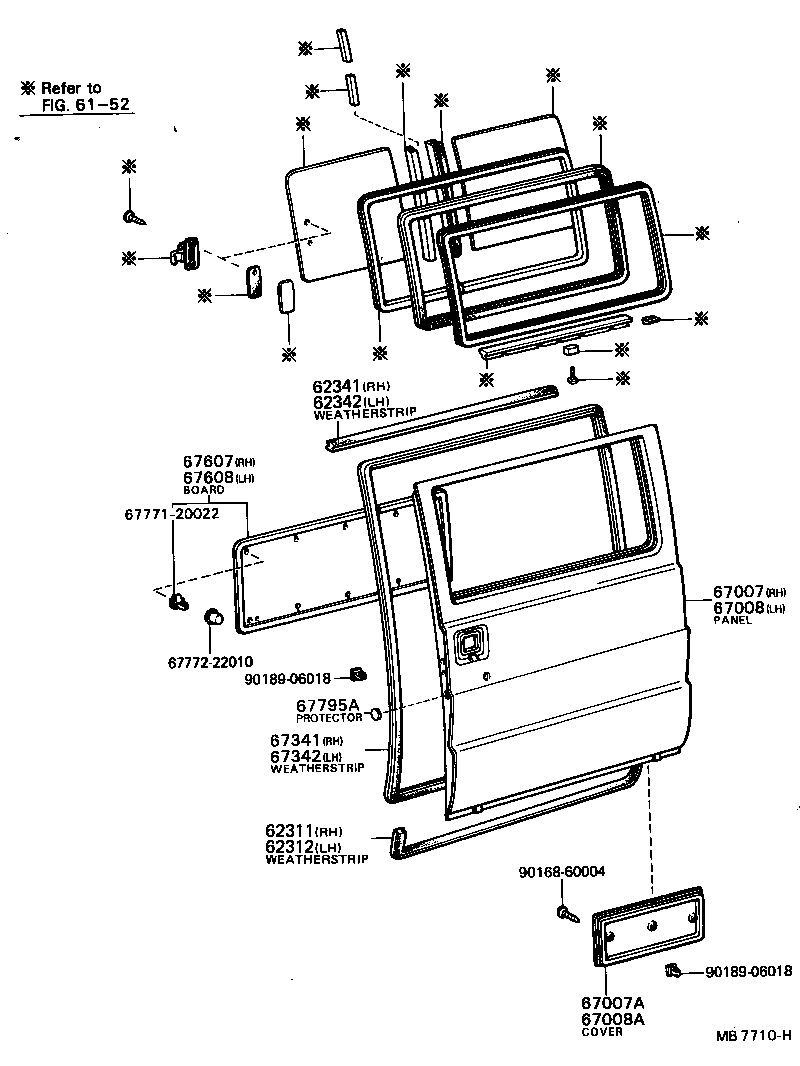

Rear Door Panel & Glass
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62311 | Weatherstrip, Door Opening Trim, Lower RH |
| 62312 | Weatherstrip, Door Opening Trim, Lower LH |
| 62341 | Weatherstrip, Door Opening, Upper RH |
| 62342 | Weatherstrip, Door Opening, Upper LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67007 | Panel Sub-assy, Slide Door, RH |
| 67007A | Cover Sub-assy, Slide Door Panel Lower, RH |
| 67008 | Panel Sub-assy, Slide Door, LH |
| 67008A | Cover Sub-assy, Slide Door Panel Lower, LH |
| 67267 | Bracket, Door Inside Panel, Lower |
| 67341 | Weatherstrip, Slide Door, RH |
| 67342 | Weatherstrip, Slide Door, LH |
| 67435 | Frame, Rear Door Window Lower, RH |
| 67436 | Frame, Rear Door Window, Lower LH |
| 67521 | Cover Sub-assy, Slide Door Panel, RH |
| 67522 | Cover Sub-assy, Slide Door Panel, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67607 | Board Sub-assy, Slide Door Trim, RH |
| 67608 | Board Sub-assy, Slide Door Trim, LH |
| 67622 | Cover, Rear Door Inside Panel Lower Hole |
| 67795A | Protector, Slide Door Switch |
| 67803 | Cover Sub-assy, Rear Door Service Hole, RH |
| 67804 | Cover Sub-assy, Rear Door Service Hole, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868B | Clip, Door Glass Weatherstrip(FOR REAR DOOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142 | Run, Rear Door Glass |
| 68163 | Weatherstrip, Rear Door Glass, Outer |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
