Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 6 illustrations

Illustrations

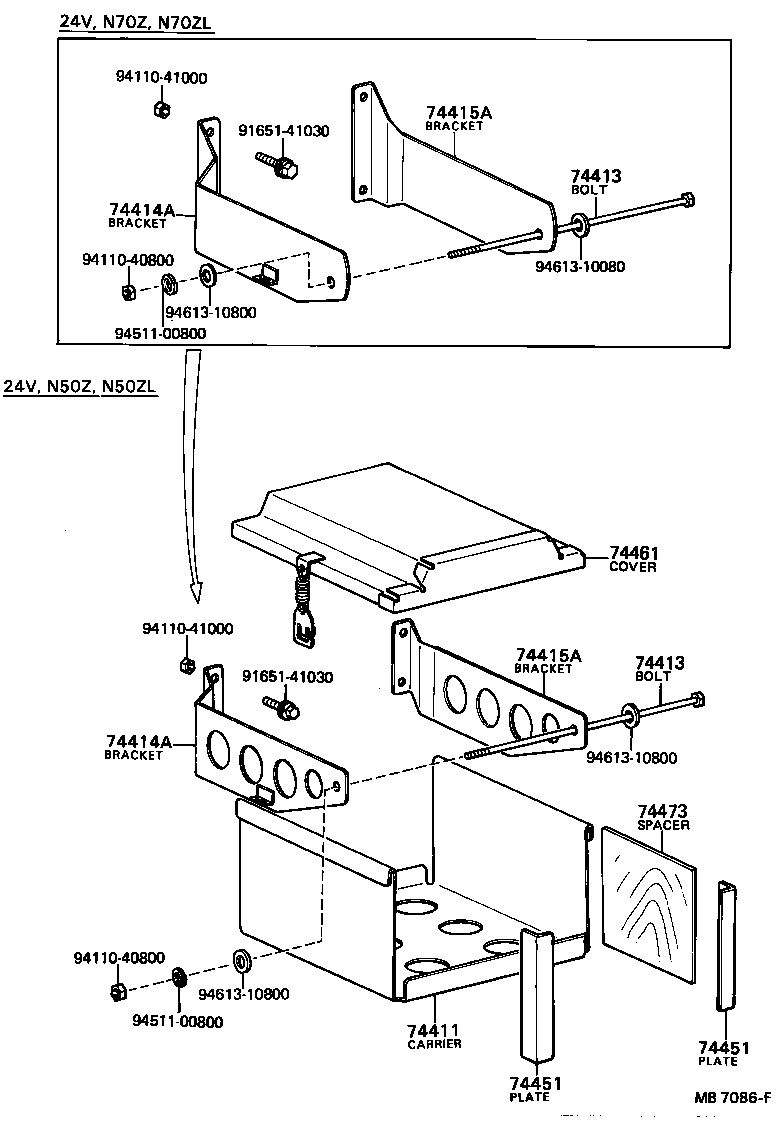

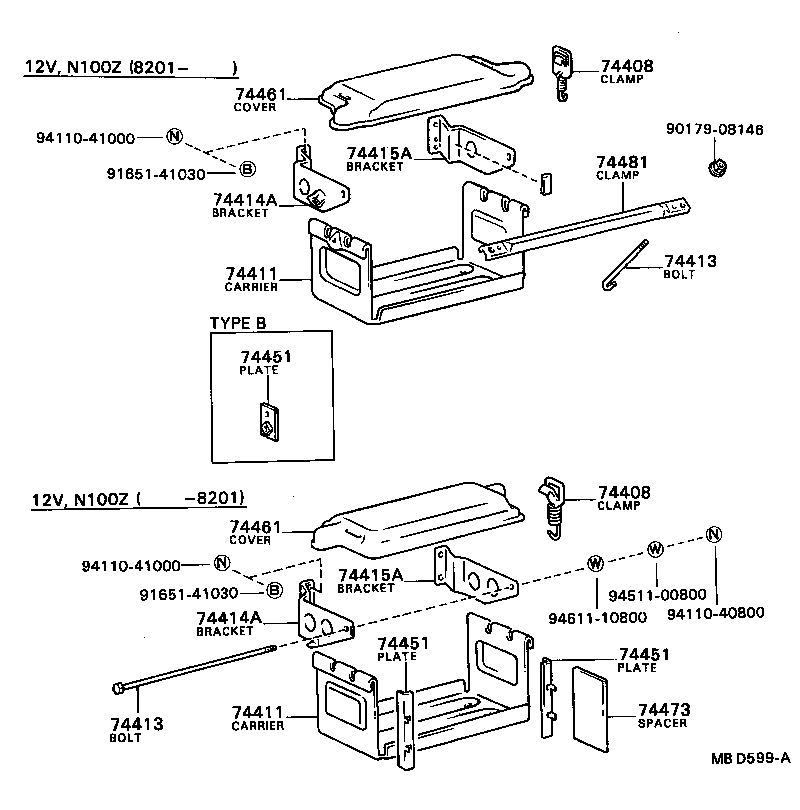

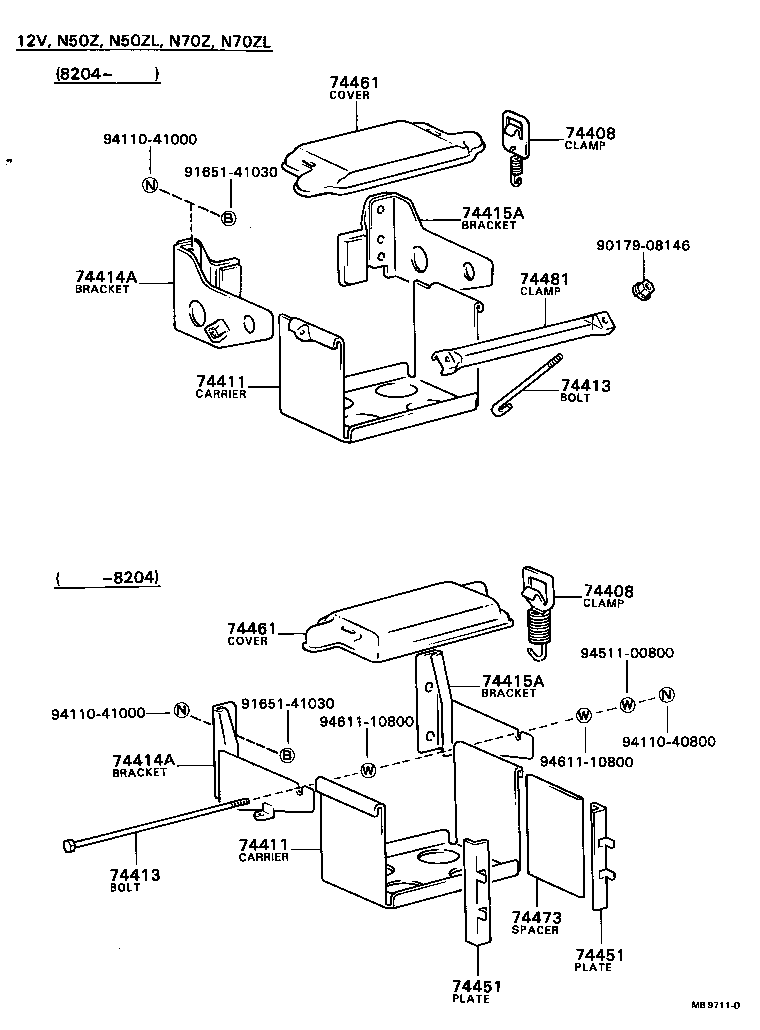

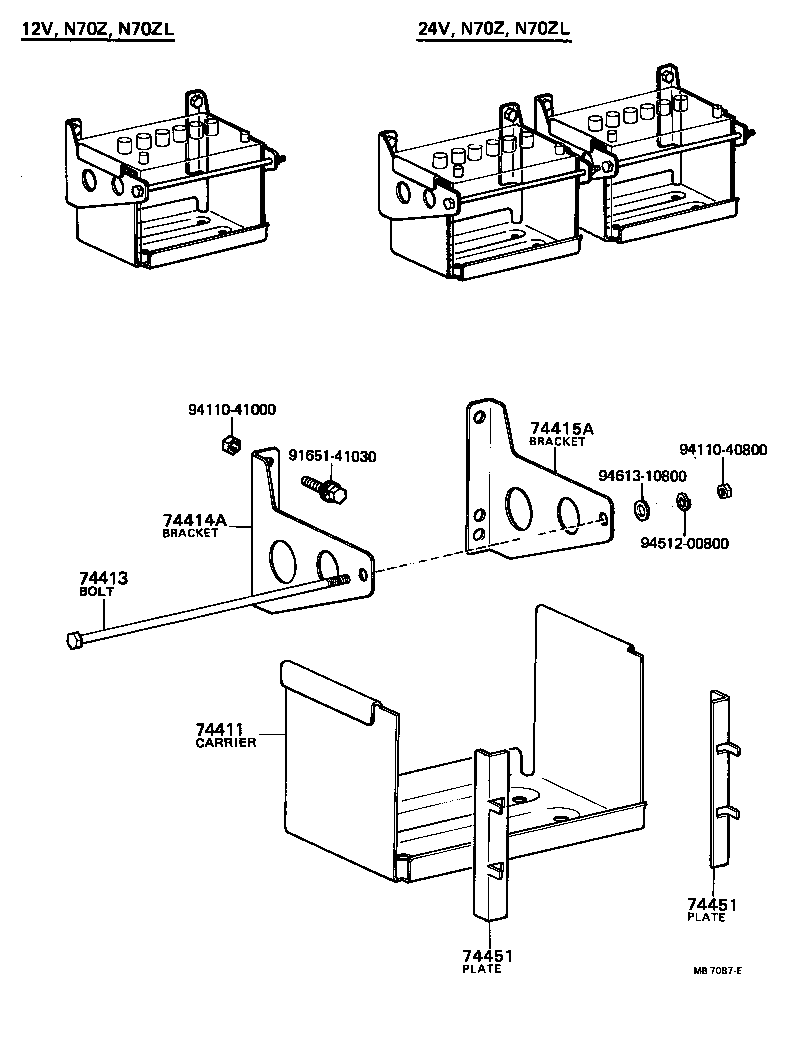

Figure MB7082E MB7082E 1977-08 → 1984-08 Figure MBD599A MBD599A 1977-08 → — Figure MB9711D MB9711D 1977-08 → — Figure MB7085B MB7085B 1977-08 → 1984-08 Figure MB7086F MB7086F 1977-08 → 1984-08 Figure MB7087E MB7087E 1977-08 → 1984-08

Part groups

PNCDescription
74408 Clamp Sub-assy, Battery Cover
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414A Bracket, Battery, NO.1
74415A Bracket, Battery, NO.2
74451 Plate, Battery Carrier Support
74461 Cover, Battery
74473 Spacer, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
