Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

44 part groups · 13 illustrations

Illustrations

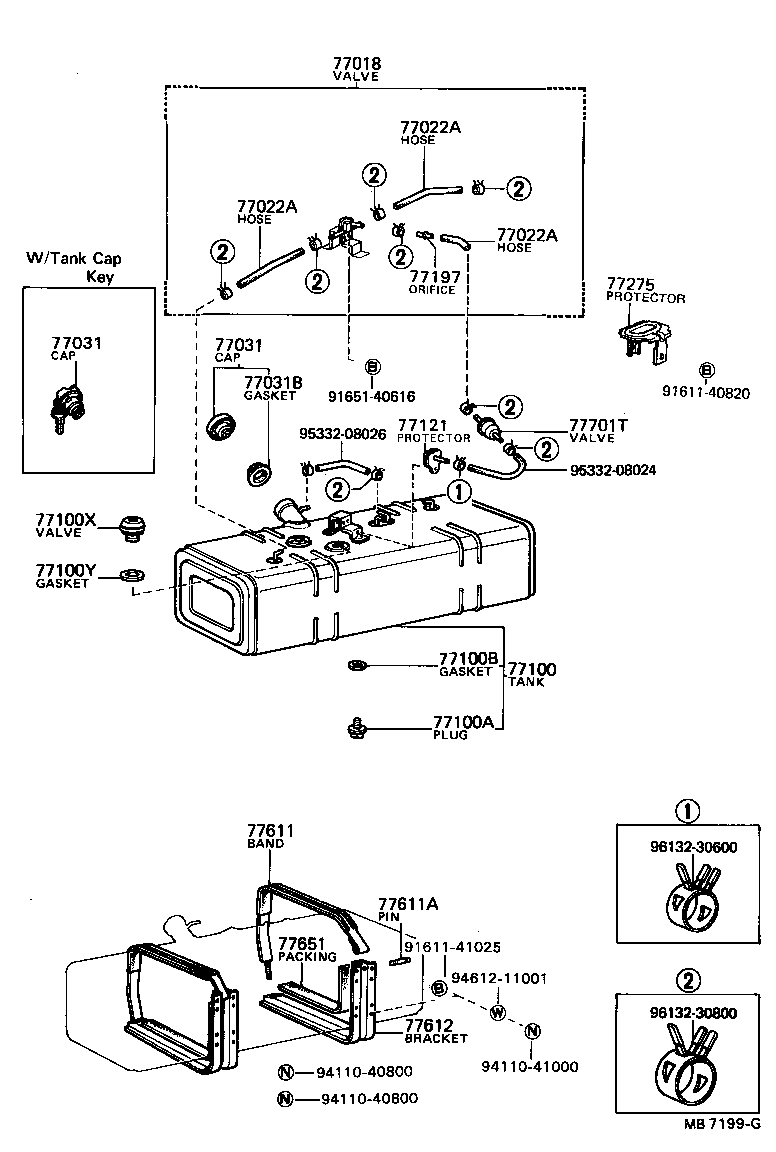

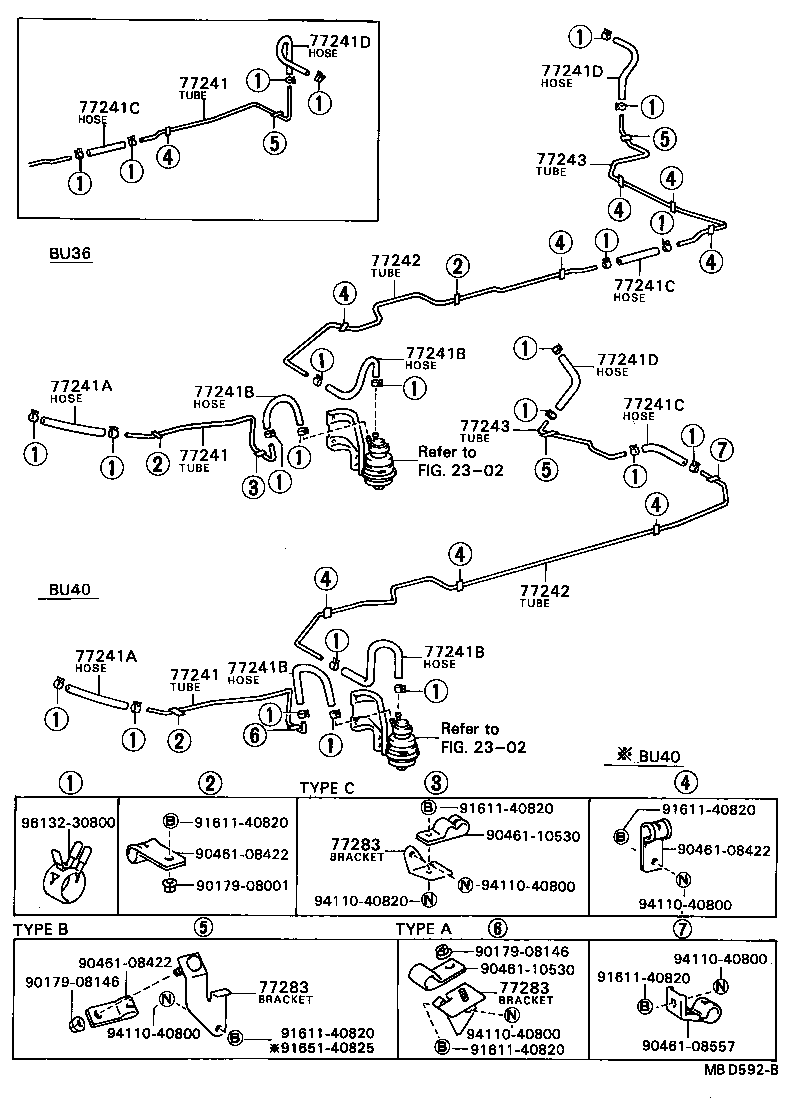

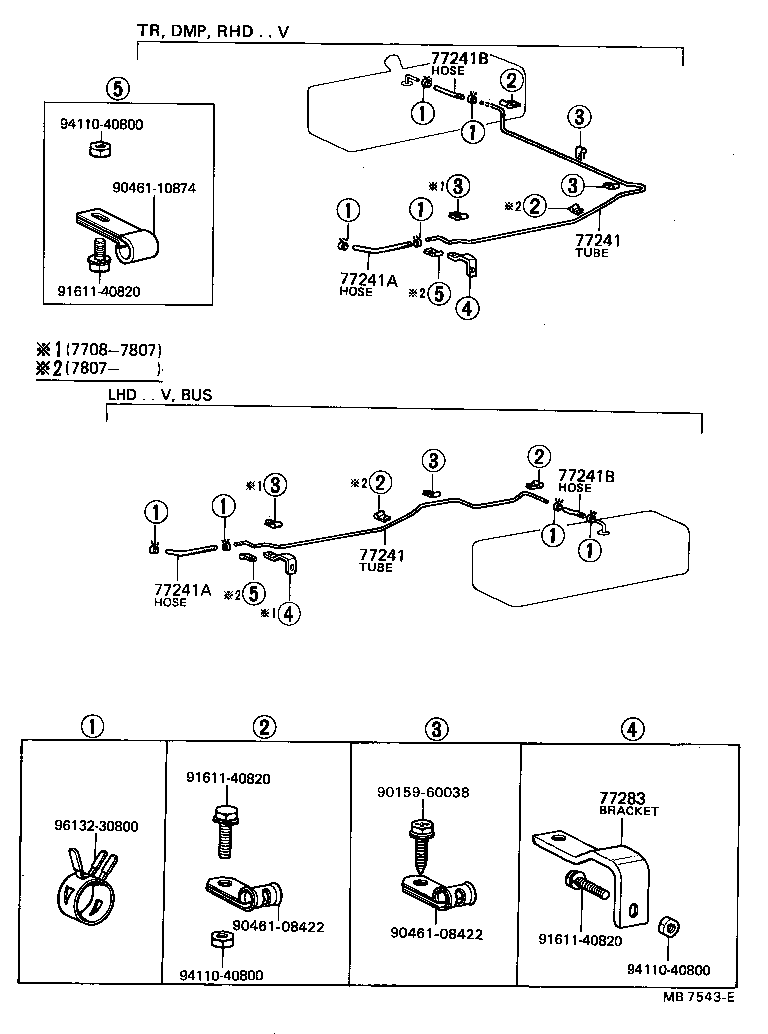

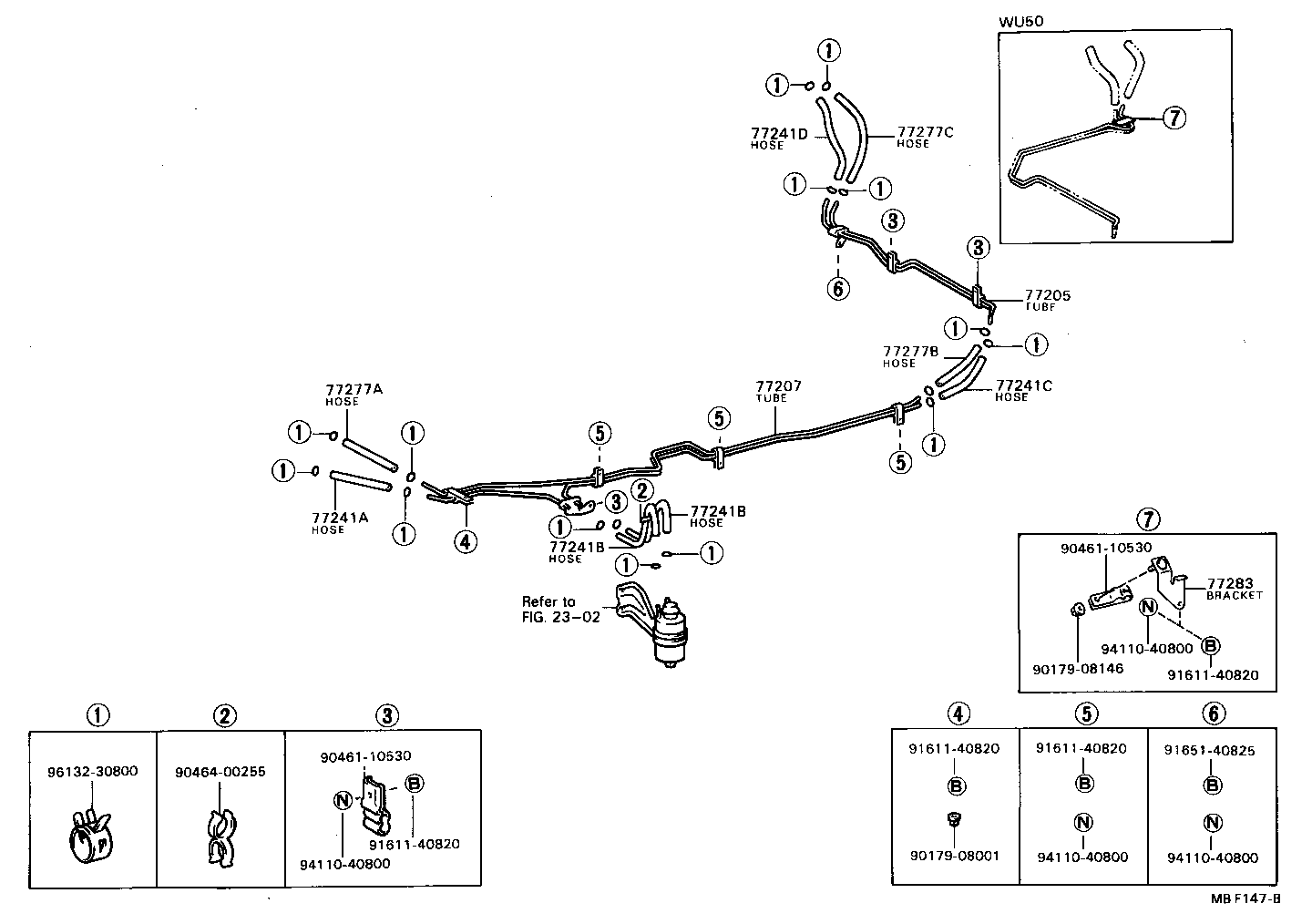

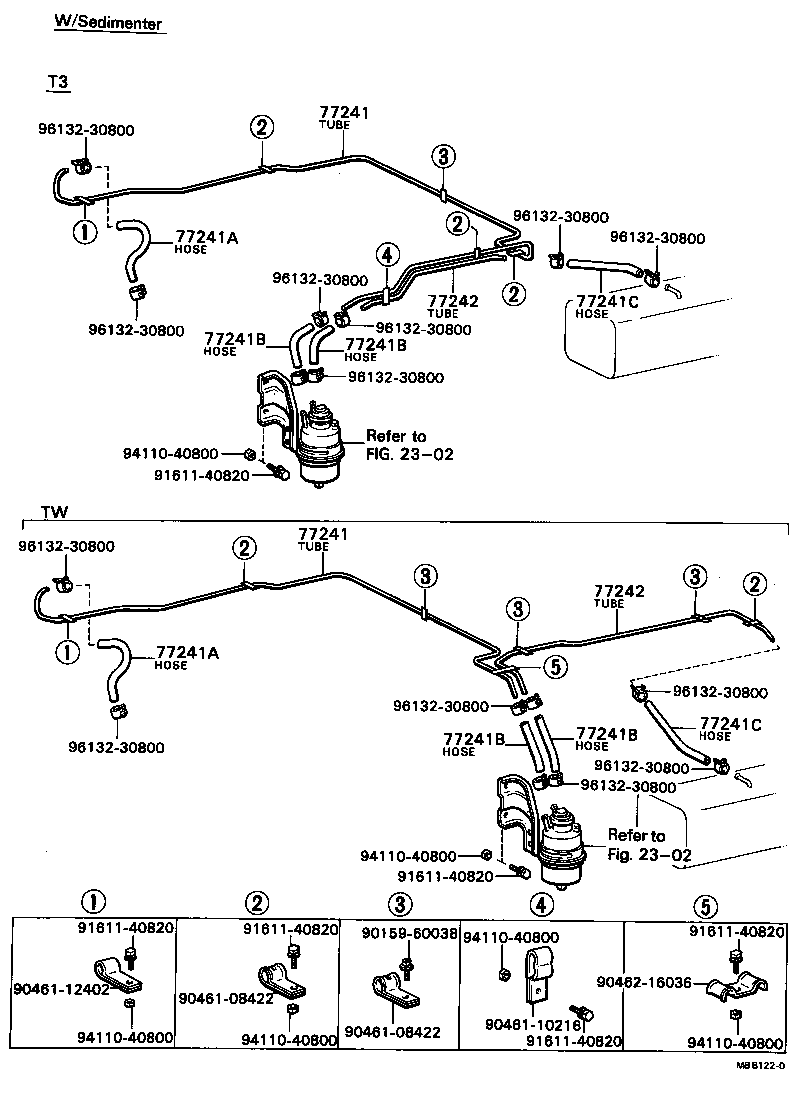

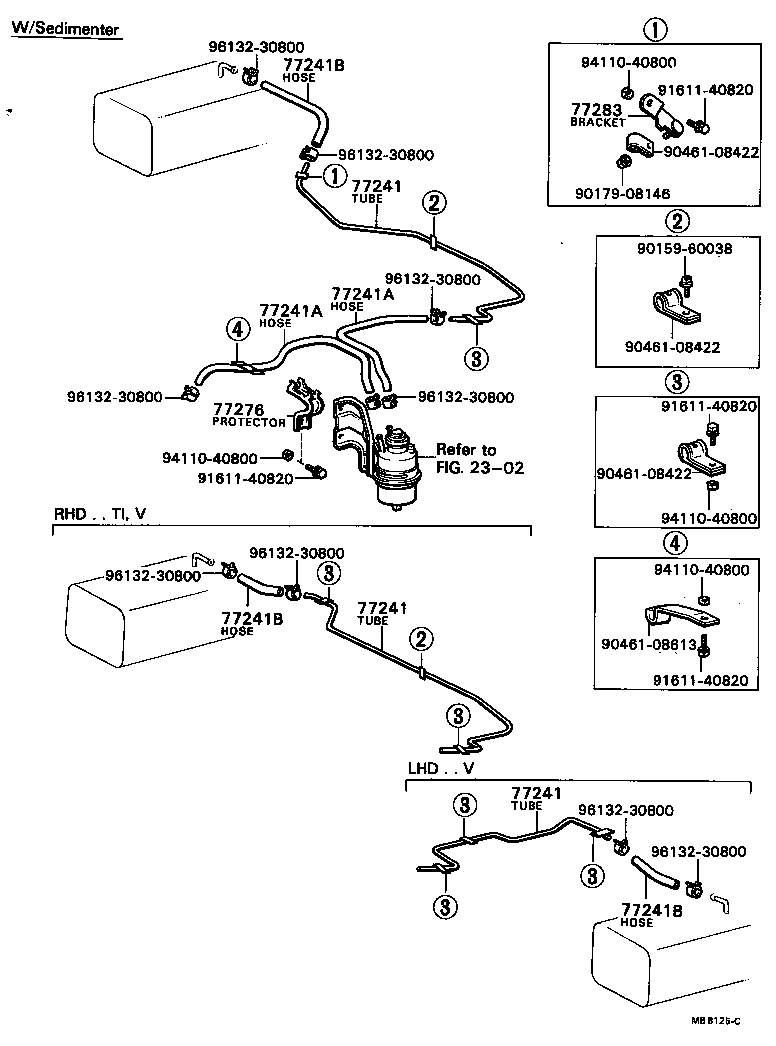

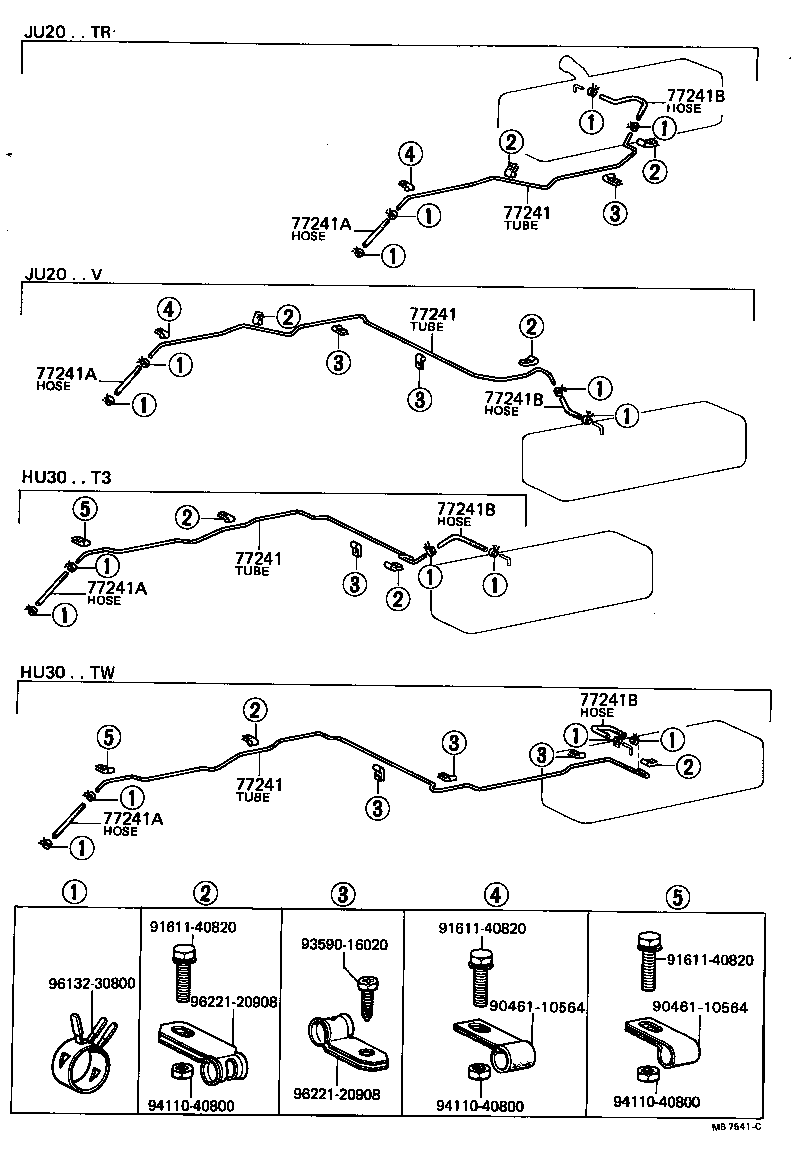

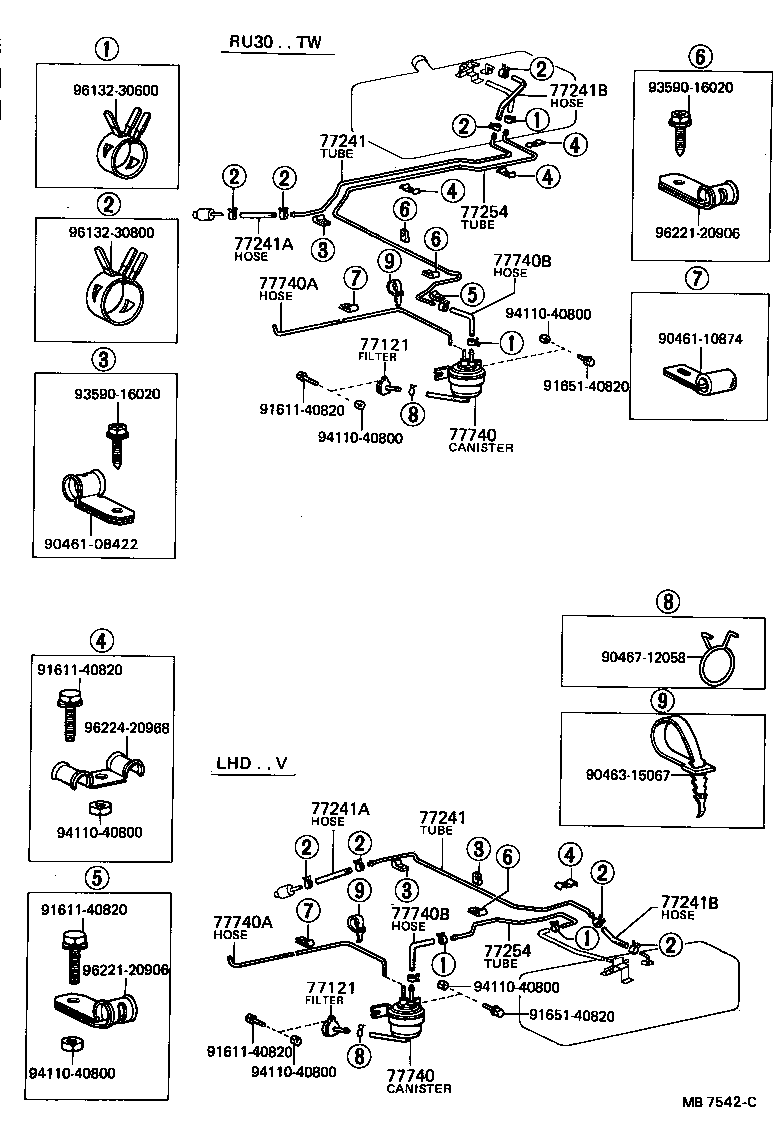

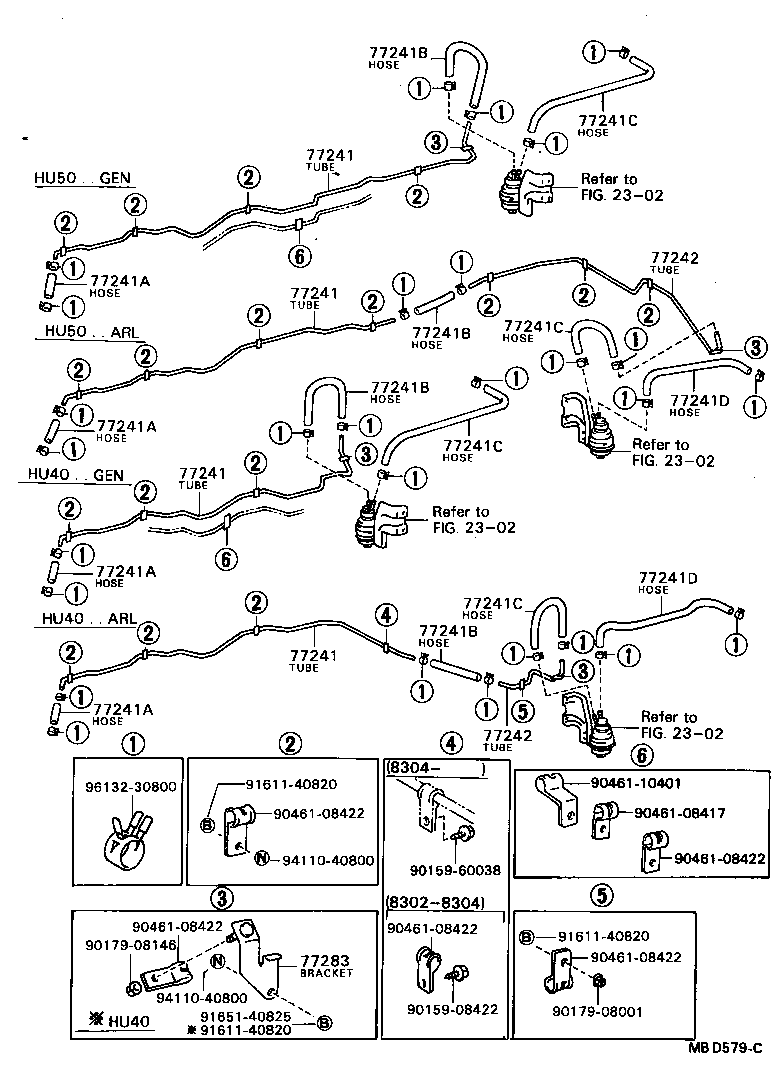

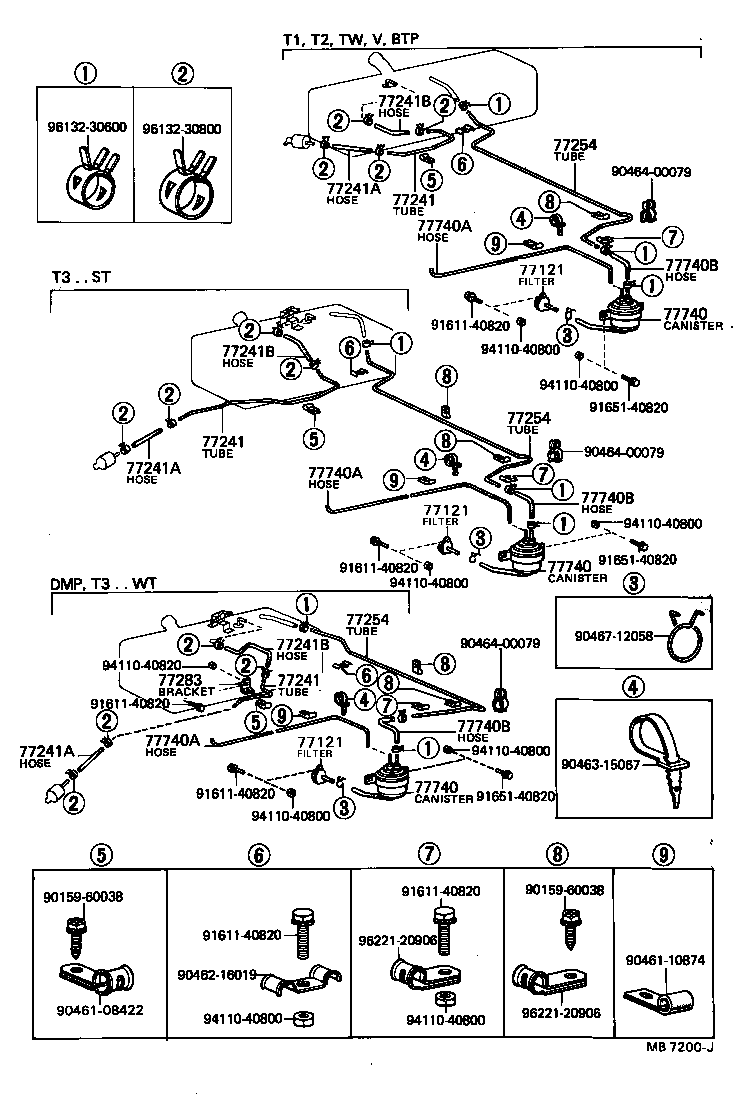

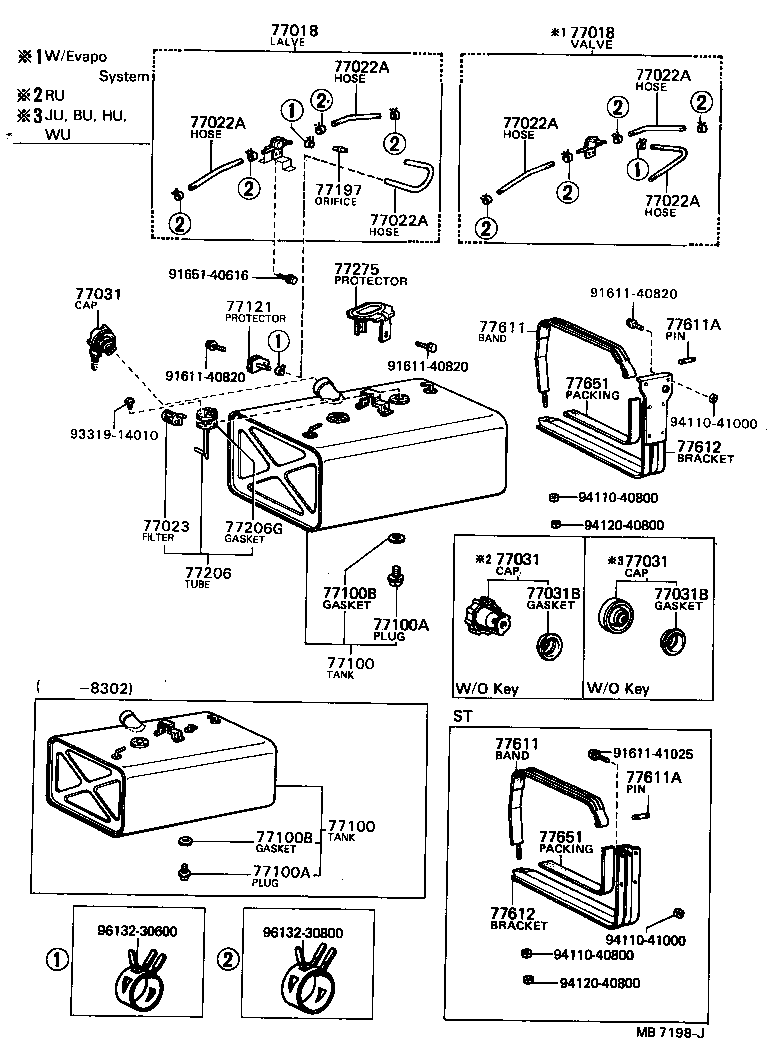

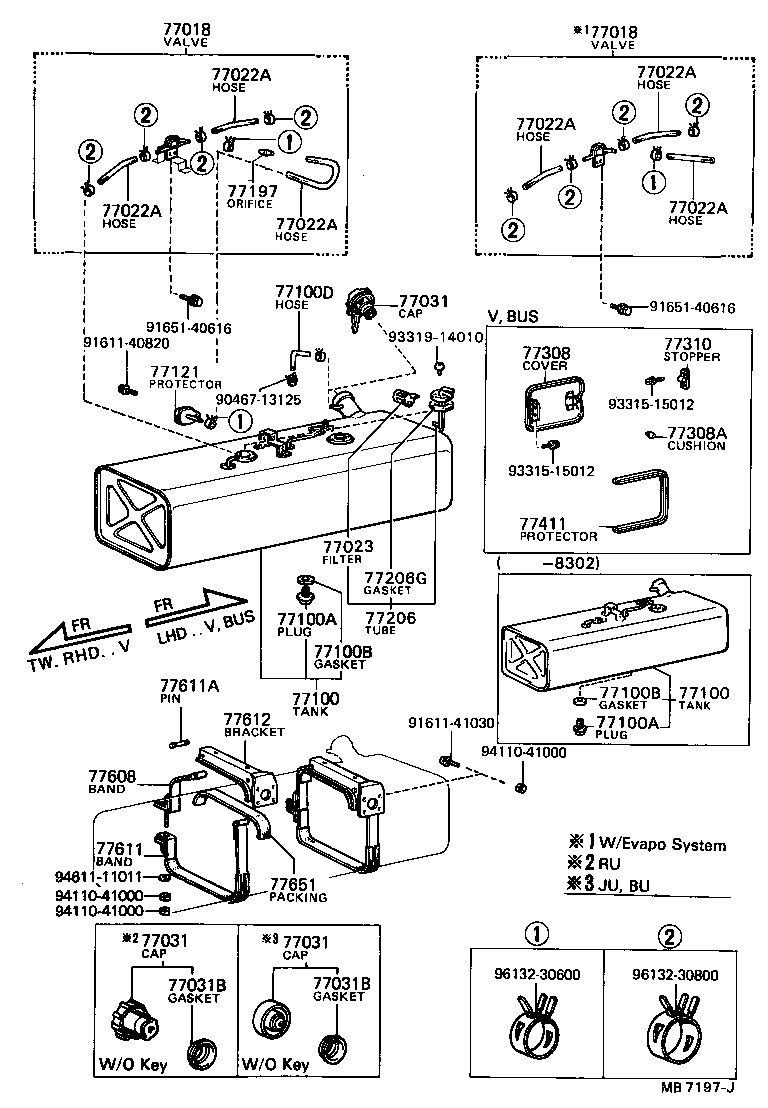

Figure MB7196G MB7196G 1977-08 → — Figure MB7197J MB7197J 1977-08 → 1984-08 Figure MB7198J MB7198J 1977-08 → — Figure MB7199G MB7199G 1977-08 → 1984-08 Figure MB7200J MB7200J 1977-08 → 1984-08 Figure MB7542C MB7542C 1977-08 → 1984-08 Figure MB7541C MB7541C 1977-08 → 1981-04 Figure MBB122D MBB122D 1979-12 → 1981-04 Figure MBD579C MBD579C 1982-04 → 1984-08 Figure MB7543E MB7543E 1977-08 → — Figure MBB125C MBB125C 1979-12 → — Figure MBD592B MBD592B 1982-04 → 1984-08 Figure MBF147B MBF147B 1983-04 → 1984-08

Part groups

PNCDescription
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100X Valve, Check
77100Y Gasket(FOR CHECK VALVE)
77121 Protector, Fuel Tube
77197 Orifice, Fuel Vapor
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206G Gasket (FOR FUEL TANK SUCTION TUBE)
77207 Tube Sub-assy, Fuel
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77241C Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1)
77241D Hose, Fuel, NO.4 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77243 Tube, Fuel Main, NO.3
77254 Tube, Fuel Emission, NO.1
77275 Protector, Fuel Evaporative Separator
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277C Hose, Fuel, NO.3(FOR RETURN TUBE, NO.1)
77283 Bracket, Fuel Tube
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77310 Stopper, Fuel Inlet Box
77411 Protector, Fuel Inlet Box
77608 Band Sub-assy, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77651 Packing, Fuel Tank Bracket
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
