Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

16 part groups · 4 illustrations

Illustrations

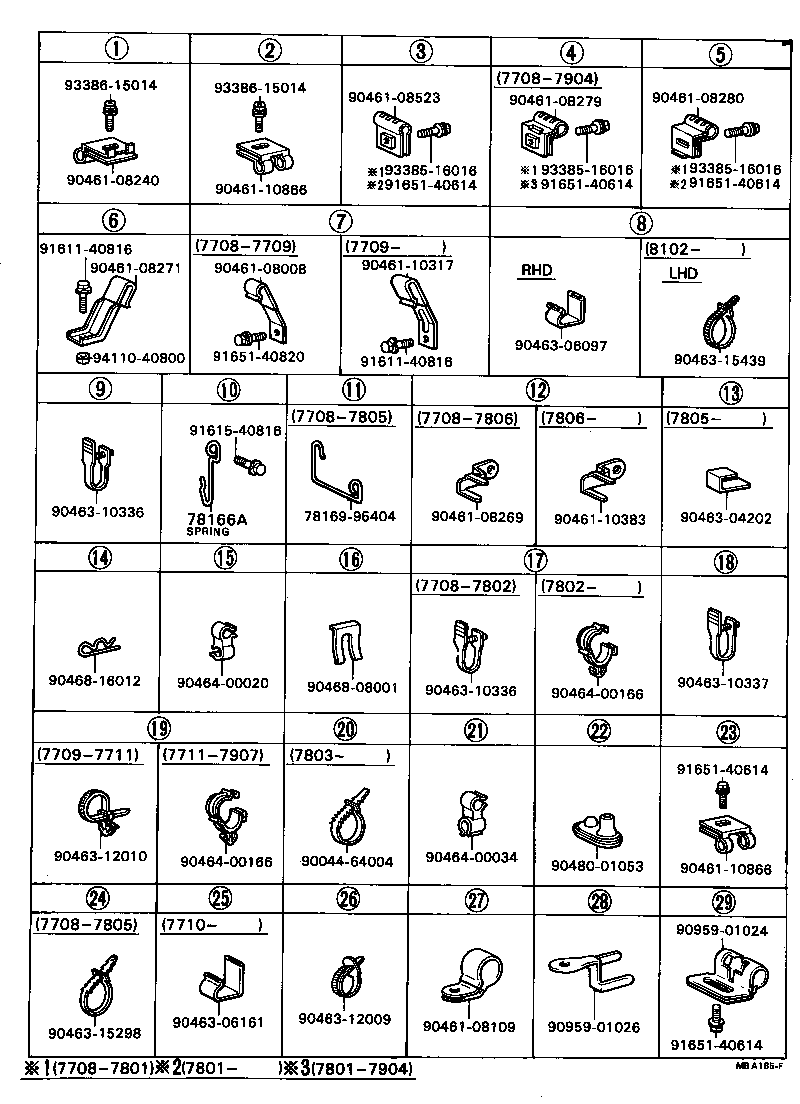

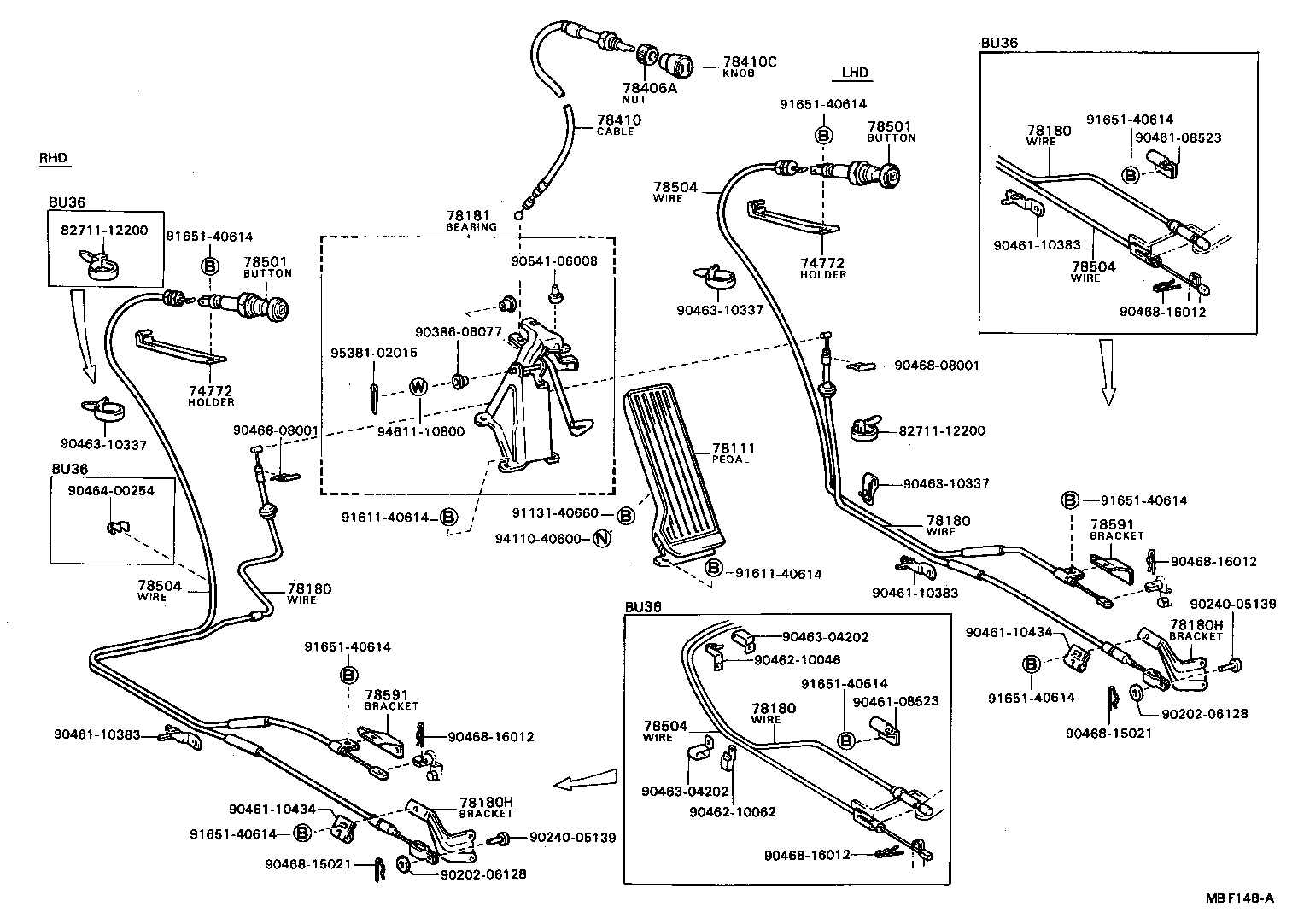

Figure MB7090I MB7090I 1977-08 → 1984-08 Figure MBF148A MBF148A 1982-04 → 1984-08 Figure MBD580B MBD580B 1982-04 → 1984-08 Figure MBA185F MBA185F 1977-08 → —

Part groups

PNCDescription
74772 Holder, Stop And Throttle Wire
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78166A Spring, Clamp, NO.1
78180 Wire Assy, Accelerator
78180H Bracket, Accelerator Control Cable
78181 Bearing, Accelerator Pedal Rod Support
78310 Cable Assy, Choke
78406A Nut, Holder (FOR THROTTLE BUTTON)
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
78501 Button Sub-assy, Stop
78504 Wire Sub-assy, Stop Flexible
78591 Bracket, Stop Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
