Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

9 part groups · 2 illustrations

Illustrations

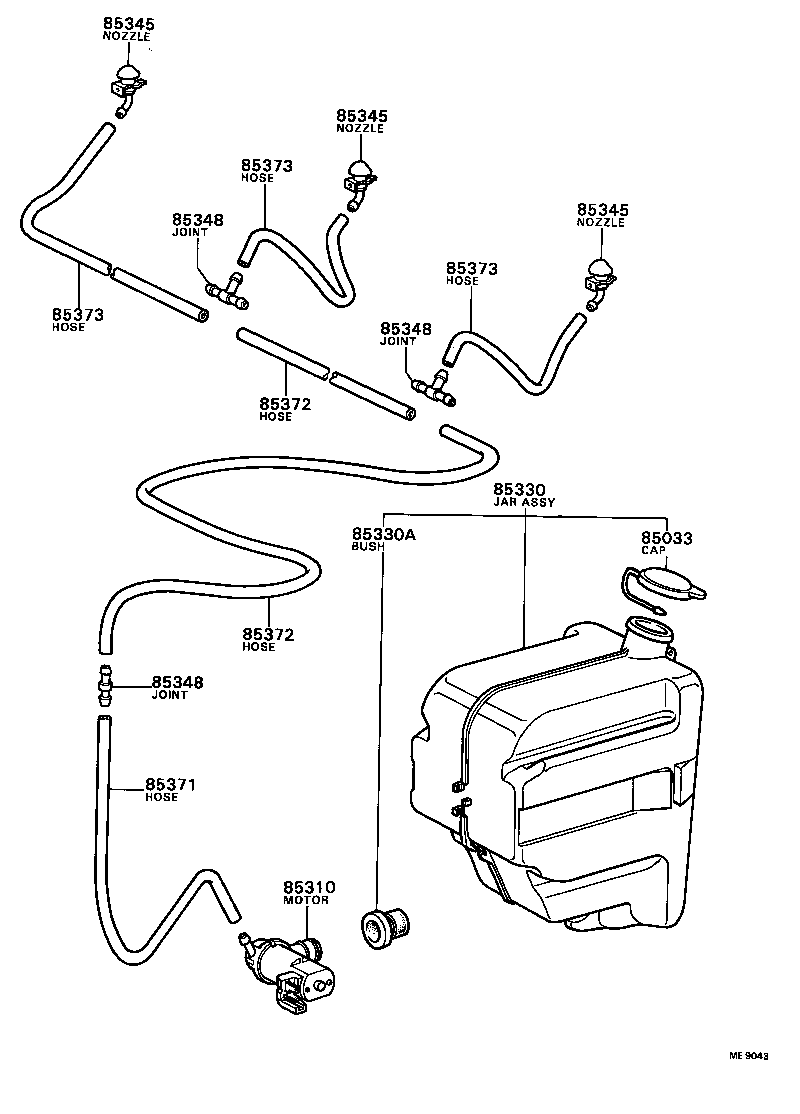

Figure ME6524B ME6524B 1977-08 → — Figure ME9043 ME9043 1982-04 → 1984-08

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
