Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03
Mirror

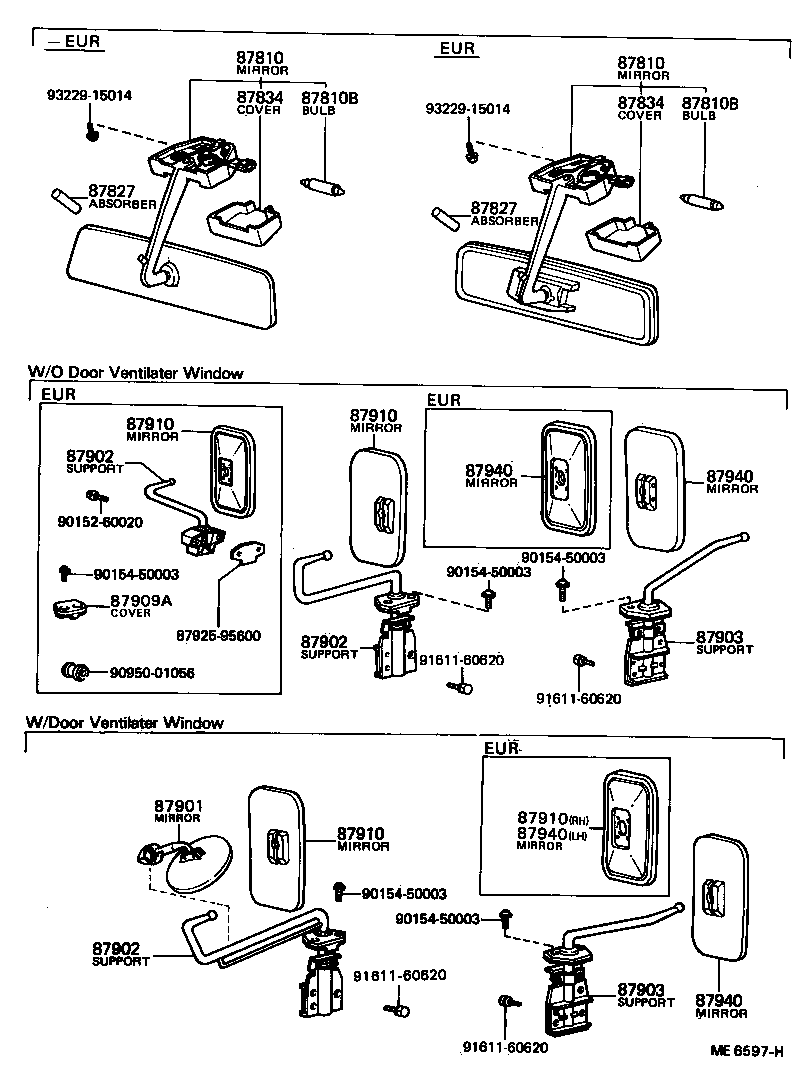

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87827 | Absorber, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901 | Mirror Sub-assy, Outer Under View |
| 87902 | Support, Rear View Outside Mirror, RH |
| 87903 | Support, Rear View Outside Mirror, LH |
| 87909A | Cover, Outer Rear View Mirror |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
