Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 5 illustrations

Illustrations

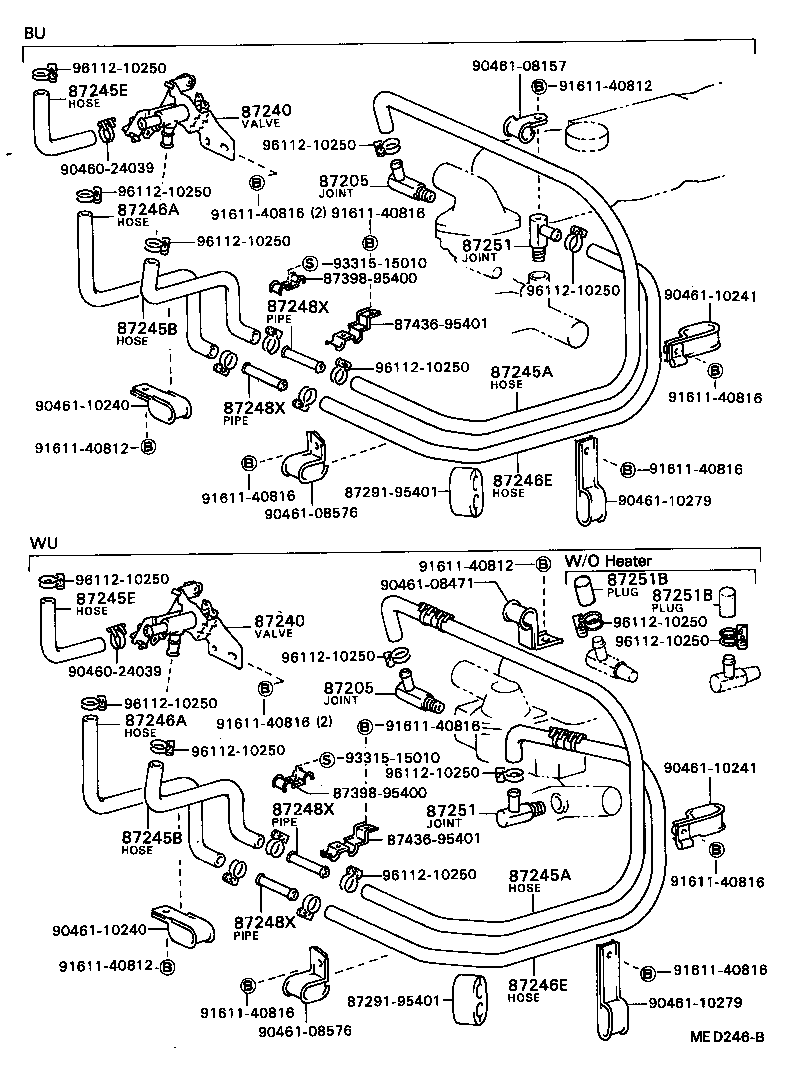

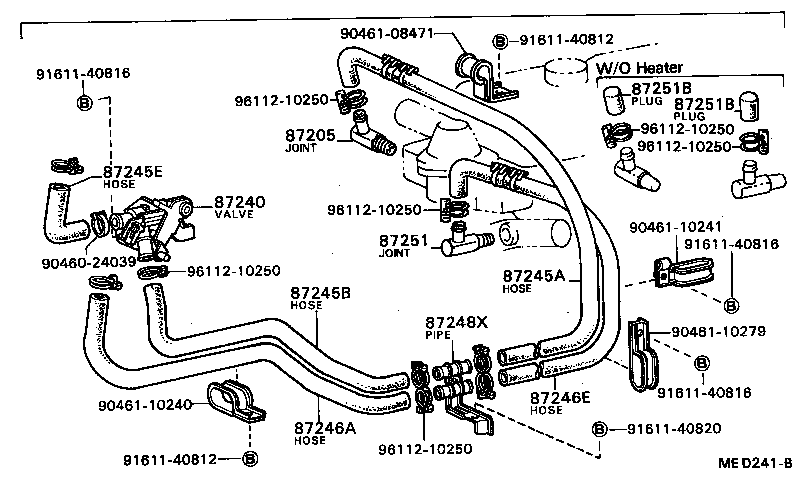

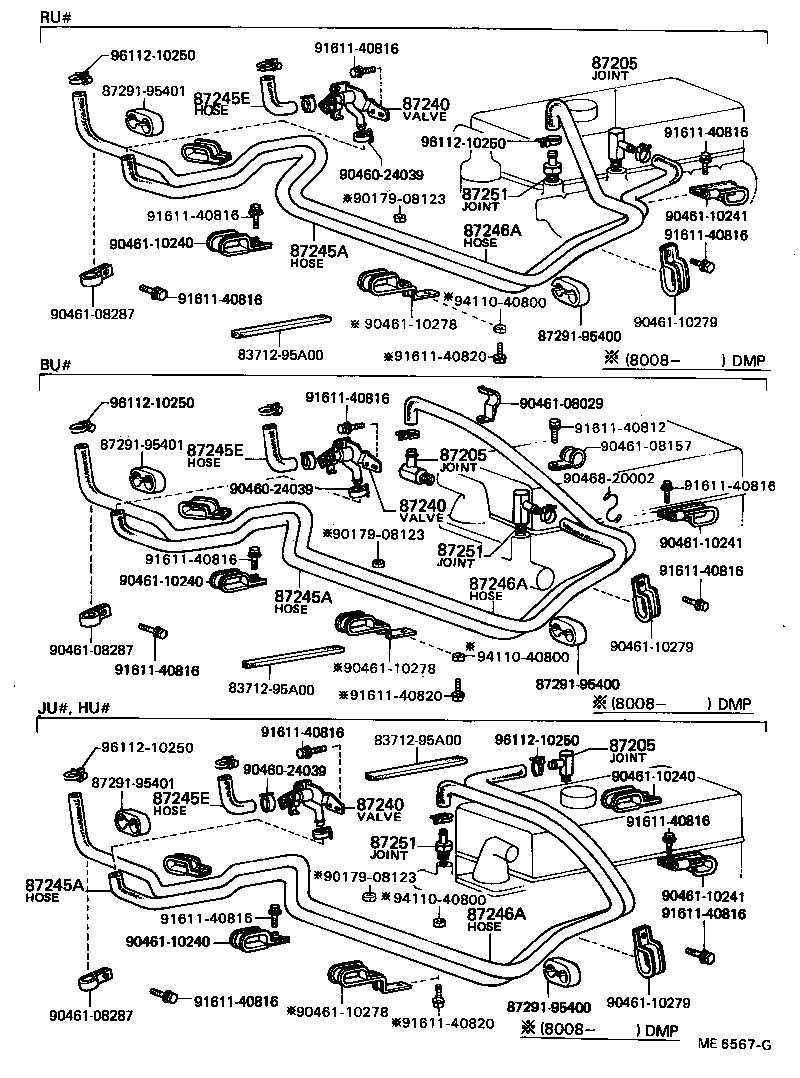

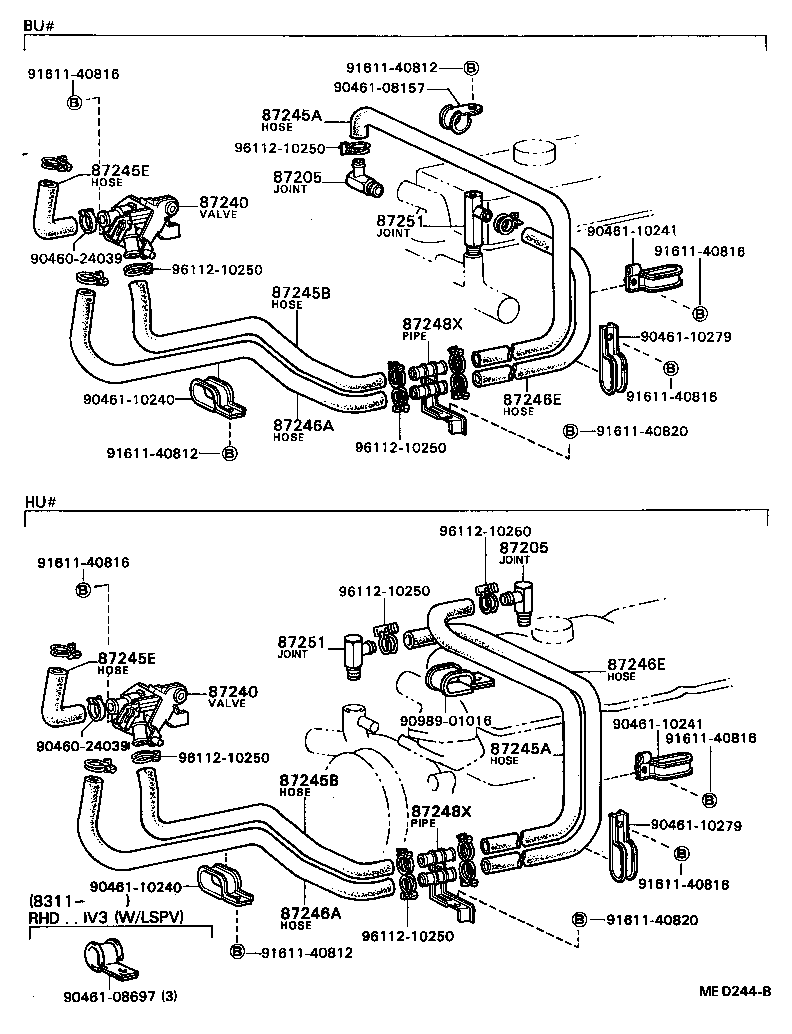

Figure MED248 MED248 1977-08 → — Figure ME6567G ME6567G 1977-08 → 1984-08 Figure MED244B MED244B 1982-04 → 1984-08 Figure MED241B MED241B 1983-04 → 1984-08 Figure MED246B MED246B 1983-02 → 1984-08

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248X Pipe, Heater Water
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
