Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

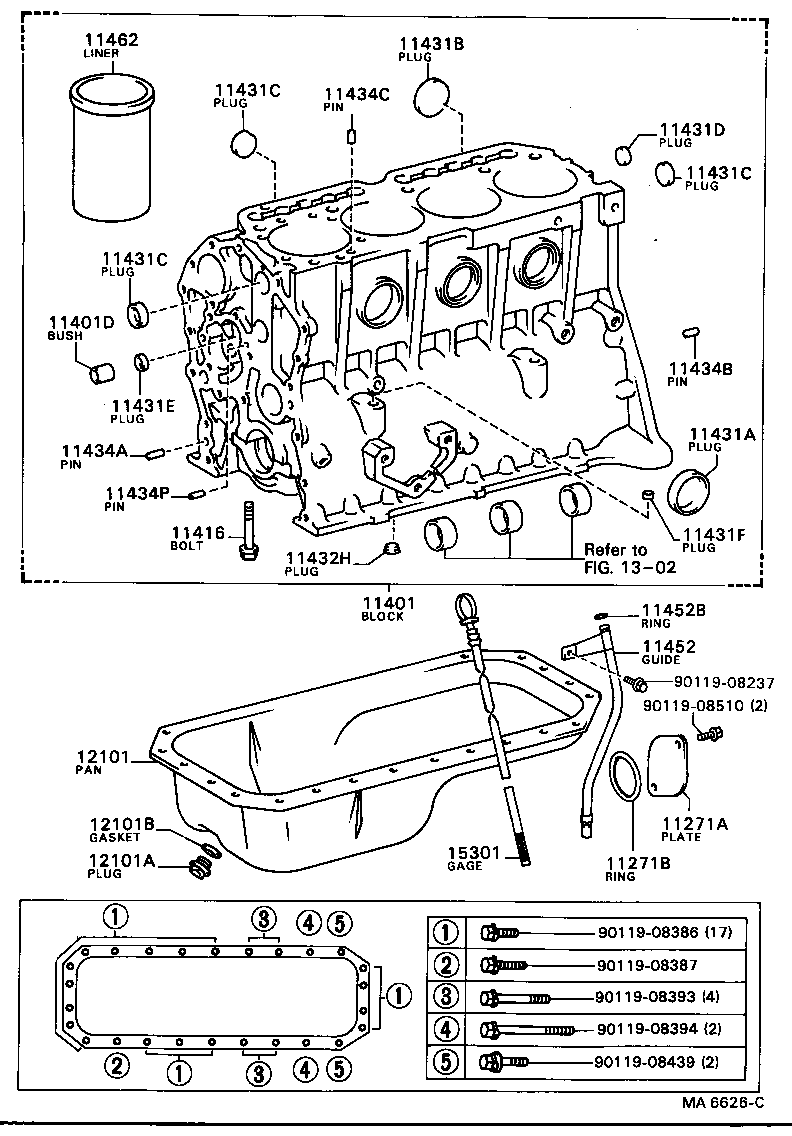

Exploded illustration MA6626C 11462 — LINER, CYLINDER (4 parts) 11431B — PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) (4 parts) 11431C — PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) (2 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (2 parts) 11431D — PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) (2 parts) 11431C — PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) (2 parts) 11431C — PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) (2 parts) 11401D — BUSH(FOR OIL PUMP COVER) (1 parts) 11434B — PIN, STRAIGHT(FOR CLUTCH HOUSING SET) (4 parts) 11431E — PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) (1 parts) 11431A — PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) (2 parts) 11434A — PIN, STRAIGHT(FOR TIMING GEAR COVER SET) (3 parts) 11434P — PIN, STRAIGHT(FOR OIL PUMP SET) (1 parts) 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (3 parts) 11431F — PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) (1 parts) 11432H — PLUG, W/HEAD TAPER SCREW, NO.5 (1 parts) 1302 — not listed in this catalogue 11401 — BLOCK SUB-ASSY, CYLINDER (8 parts) 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (1 parts) 11452 — GUIDE, OIL LEVEL GAGE (3 parts) 9011908237 — not listed in this catalogue 9011908510 — not listed in this catalogue 12101 — PAN SUB-ASSY, OIL (4 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (5 parts) 11271A — COVER, CYLINDER BLOCK, REAR (1 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (3 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (5 parts) 11271B — RING, O(FOR CYLINDER BLOCK REAR PLATE) (1 parts) 9011908386 — not listed in this catalogue 9011908387 — not listed in this catalogue 9011908393 — not listed in this catalogue 9011908394 — not listed in this catalogue 9011908439 — not listed in this catalogue
MA6626C · 25 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
11271A — Cover, Cylinder Block, Rear
11271-78010 Cover, Cylinder Block, Rear
1984-09 → 1987-08 ended
1W WU9# —
11271B — Ring, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001 Ring, O(FOR CYLINDER BLOCK REAR PLATE)
1984-09 → 1987-08 ended
1W WU9# —
11401 — Block Sub-assy, Cylinder
11401-39445 Block Sub-assy, Cylinder
1984-09 → 1987-08 ended
22R RU75,85 —
11401-79085 Block Sub-assy, Cylinder
1984-09 → 1985-02 ended
3Y,4Y YU6#,70,80 —
11401-79086 Block Sub-assy, Cylinder
1985-02 → 1986-08 ended
3Y,4Y YU6#,70,80 —
11401-79145 note Block Sub-assy, Cylinder
1984-09 → 1985-02 ended
3Y YU60 TW1;3Y,4Y YU60,80 +3 —
11401-79146 note Block Sub-assy, Cylinder
1985-02 → 1986-08 ended
3Y YU60 TW1;3Y,4Y YU60,80 +3 —
11401-79205 Block Sub-assy, Cylinder
1986-08 → 1987-08 ended
4Y YU6#,71,81 —
11401-79335 note Block Sub-assy, Cylinder
1986-08 → 1987-08 ended
4Y YU62 TW1;4Y YU62,81 +2 —
11410-78010 Block Sub-assy, Cylinder
1984-09 → 1987-08 ended
1W WU9# —
11401D — Bush(FOR OIL PUMP COVER)
90999-71055 Bush(FOR OIL PUMP COVER)
1984-09 → 1987-08 ended
1W WU9# —
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90105-14024 note Bolt(FOR CRANKSHAFT BEARING CAP SET)
1984-09 → 1987-08 ended
1W WU9# —
90910-02032 Bolt(FOR CRANKSHAFT BEARING CAP SET)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90910-02042 note Bolt(FOR CRANKSHAFT BEARING CAP SET)
1984-09 → 1987-08 ended
22R RU75,85 —
11431A — Plug, Tight, NO.1(FOR CYLINDER BLOCK)
90331-50002 Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
96411-01800 Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
11431B — Plug, Tight, NO.2(FOR CYLINDER BLOCK)
90331-40003 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
96411-43500 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1984-09 → 1986-08 ended
3Y,4Y YU6#,70,80 —
96411-43500 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1986-08 → 1987-08 ended
4Y YU6#,71,81 —
96411-44000 note Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
22R RU75,85 —
11431C — Plug, Tight, NO.3(FOR CYLINDER BLOCK)
90331-36001 note Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
96411-45000 Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
11431D — Plug, Tight, NO.4(FOR CYLINDER BLOCK)
90331-24001 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
96411-45000 note Plug, Tight, NO.4(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
11431E — Plug, Tight, NO.5(FOR CYLINDER BLOCK)
90331-17002 note Plug, Tight, NO.5(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
11431F — Plug, Tight, NO.6(FOR CYLINDER BLOCK)
90331-14005 note Plug, Tight, NO.6(FOR CYLINDER BLOCK)
1984-09 → 1987-08 ended
1W WU9# —
11432H — Plug, W/Head Taper Screw, NO.5
90344-21001 Plug, W/Head Taper Screw, NO.5
1984-09 → 1987-08 ended
1W WU9# —
11434A — Pin, Straight(FOR TIMING GEAR COVER SET)
90250-08015 note Pin, Straight(FOR TIMING GEAR COVER SET)
1984-09 → 1987-08 ended
1W WU9# —
90250-08120 note Pin, Straight(FOR TIMING GEAR COVER SET)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90253-11021 note Pin, Straight(FOR TIMING GEAR COVER SET)
1984-09 → 1987-08 ended
22R RU75,85 —
11434B — Pin, Straight(FOR CLUTCH HOUSING SET)
90250-08120 note Pin, Straight(FOR CLUTCH HOUSING SET)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
1984-09 → 1987-08 ended
22R RU75,85 —
90250-10113 note Pin, Straight(FOR CLUTCH HOUSING SET)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90250-12003 note Pin, Straight(FOR CLUTCH HOUSING SET)
1984-09 → 1987-08 ended
1W WU9# —
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90250-08016 note Pin, Straight (FOR CYLINDER HEAD SET)
1984-09 → 1987-08 ended
1W WU9# —
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
1984-09 → 1987-08 ended
22R RU75,85 —
11434P — Pin, Straight(FOR OIL PUMP SET)
90250-05022 note Pin, Straight(FOR OIL PUMP SET)
1984-09 → 1987-08 ended
1W WU9# —
11452 — Guide, Oil Level Gage
11452-35010 Guide, Oil Level Gage
1984-09 → 1987-08 ended
22R RU75,85 —
11452-71020 Guide, Oil Level Gage
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
11452-78010 Guide, Oil Level Gage
1984-09 → 1987-08 ended
1W WU9# —
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
90301-09006 Ring, O(FOR OIL LEVEL GAGE GUIDE)
1984-09 → 1987-08 ended
1W WU9# —
11462 — Liner, Cylinder
11461-78020 note Liner, Cylinder
1984-09 → 1987-08 ended
1W WU9# —
11461-78030 note Liner, Cylinder
1984-09 → 1987-08 ended
1W WU9# —
11461-78040 note Liner, Cylinder
1984-09 → 1987-08 ended
1W WU9# —
11461-78050 note Liner, Cylinder
1984-09 → 1987-08 ended
1W WU9# —
12101 — Pan Sub-assy, Oil
12101-35020 Pan Sub-assy, Oil
1984-09 → 1987-08 ended
22R RU75,85 —
12101-71020 Pan Sub-assy, Oil
1984-09 → 1985-04 ended
3Y,4Y YU6#,70,80 —
12101-71021 Pan Sub-assy, Oil
1985-04 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12111-78010 Pan Sub-assy, Oil
1984-09 → 1987-08 ended
1W WU9# —
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
1984-09 → 1987-08 ended
22R RU75,85 —
90341-12012 Plug(FOR OIL PAN DRAIN)
1985-04 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90341-18089 Plug(FOR OIL PAN DRAIN)
1984-09 → 1985-04 ended
1W WU9# —
90341-18089 Plug(FOR OIL PAN DRAIN)
1984-09 → 1985-04 ended
3Y,4Y YU6#,70,80 —
90341-18089 Plug(FOR OIL PAN DRAIN)
1985-04 → 1987-08 ended
1W WU9# —
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90202-18001 note Gasket(FOR OIL PAN DRAIN PLUG)
1984-09 → 1987-08 ended
1W WU9# —
90430-12009 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-04 → 1985-04 ended
3Y,4Y YU6#,70,80 —
90430-12011 note Gasket(FOR OIL PAN DRAIN PLUG)
1984-09 → 1987-08 ended
22R RU75,85 —
90430-12011 note Gasket(FOR OIL PAN DRAIN PLUG)
1985-04 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90430-18244 note Gasket(FOR OIL PAN DRAIN PLUG)
1984-09 → 1985-04 ended
3Y,4Y YU6#,70,80 —
15301 — Gage Sub-assy, Oil Level
15301-35020 Gage Sub-assy, Oil Level
1984-09 → 1987-08 ended
22R RU75,85 —
15301-71020 Gage Sub-assy, Oil Level
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
15301-78010 Gage Sub-assy, Oil Level
1984-09 → 1987-08 ended
1W WU9# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
