Toyota Dyna
1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe
Discontinued model
Data version 1988-01

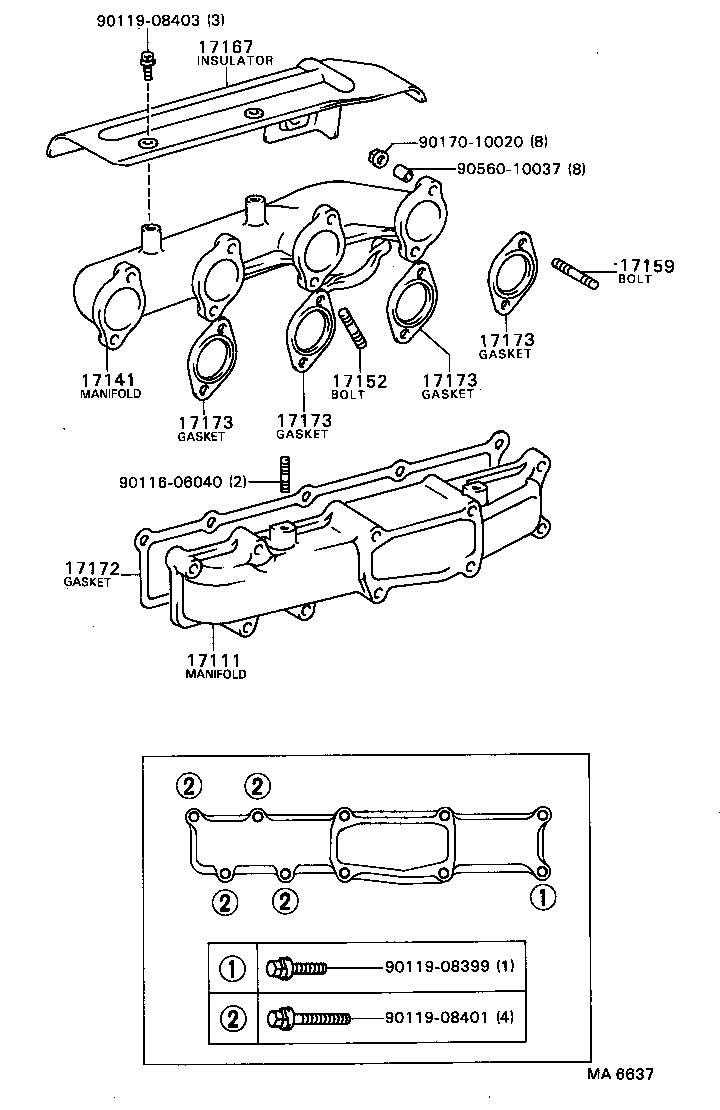

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17111-35040 |
Manifold, Intake
1984-09 → 1987-08
ended
|
22R RU75,85 | — | |
| 17111-71020 |
Manifold, Intake
1984-09 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 17111-78010 |
Manifold, Intake
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17141 — Manifold, Exhaust | ||||
| 17141-35100 |
Manifold, Exhaust
1984-09 → 1986-06
ended
|
22R RU75,85 | — | |
| 17141-35130 |
Manifold, Exhaust
1986-06 → 1987-08
ended
|
22R RU75,85 | — | |
| 17141-71020 |
Manifold, Exhaust
1984-09 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 17141-78010 |
Manifold, Exhaust
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1984-09 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 90116-10087 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1984-09 → 1987-08
ended
|
22R RU75,85 | — | |
| 90116-10110 |
Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08172 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1987-08
ended
|
22R RU75,85 | — | |
| 90116-10063 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 90116-10064 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1987-08
ended
|
22R RU75,85 | — | |
| 90116-10067 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1987-08
ended
|
22R RU75,85 | — | |
| 90116-10077 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-56020 |
Insulator, Exhaust Manifold Heat, NO.1
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17167-71020 |
Insulator, Exhaust Manifold Heat, NO.1
1984-09 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 17172 — Gasket, Manifold TO Cylinder Head | ||||
| 17172-71010 |
Gasket, Manifold TO Cylinder Head
1984-09 → 1985-06
ended
|
3Y,4Y YU6#,70,80 | — | |
| 17172-71011 |
Gasket, Manifold TO Cylinder Head
1985-06 → 1985-08
ended
|
3Y,4Y YU6#,70,80 | — | |
| 17172-73010 |
Gasket, Manifold TO Cylinder Head
1985-08 → 1987-08
ended
|
3Y,4Y YU6#,7#,8# | — | |
| 17172-78010 |
Gasket, Manifold TO Cylinder Head
1984-09 → 1987-08
ended
|
1W WU9# | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-35060 |
Gasket, Exhaust Manifold TO Head
1984-09 → 1984-10
ended
|
22R RU75,85 | — | |
| 17173-35060 |
Gasket, Exhaust Manifold TO Head
1986-06 → 1987-08
ended
|
22R RU75,85 | — | |
| 17173-35090 |
Gasket, Exhaust Manifold TO Head
1984-10 → 1986-06
ended
|
22R RU75,85 | — | |
| 17173-78010 |
Gasket, Exhaust Manifold TO Head
1984-09 → 1987-08
ended
|
1W WU9# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
