Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

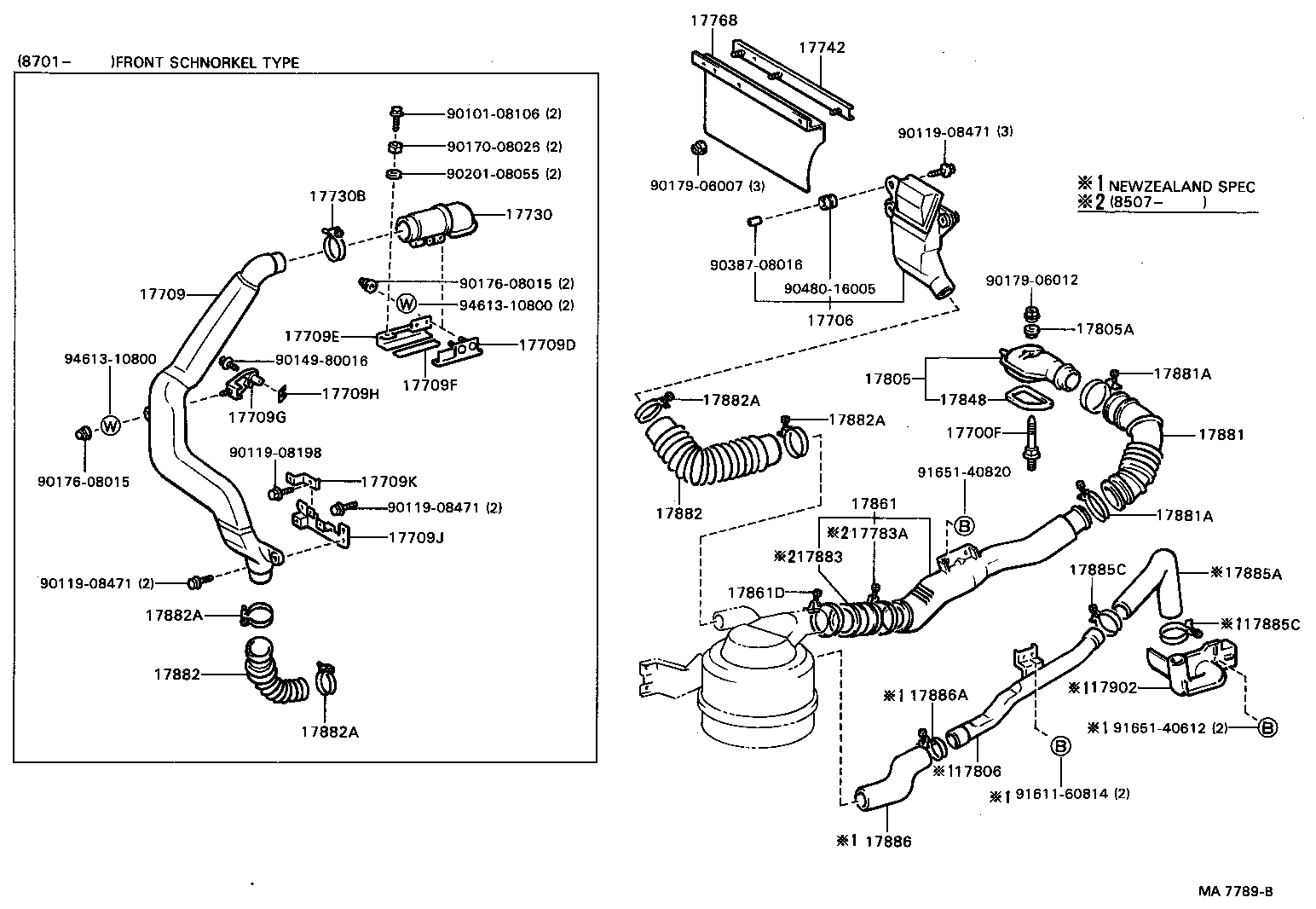

Exploded illustration MA7789B 17768 — COVER, AIR CLEANER INLET (4 parts) 17742 — PLATE, AIR CLEANER INLET COVER (2 parts) 9010108106 — not listed in this catalogue 9011908471 — not listed in this catalogue 9017008026 — not listed in this catalogue 9020108055 — not listed in this catalogue 9017906007 — not listed in this catalogue 17730B — CLAMP, HOSE(FOR PRECLEANER HOSE) (10 parts) 17730 — PRECLEANER ASSY, AIR W/HOSE (10 parts) 9038708016 — not listed in this catalogue 9017906012 — not listed in this catalogue 9017608015 — not listed in this catalogue 9048016005 — not listed in this catalogue 17709 — INLET SUB-ASSY, AIR CLEANER (14 parts) 9461310800 — not listed in this catalogue 17706 — INLET SUB-ASSY, AIR CLEANER, NO.2 (4 parts) 17805A — GASKET & WASHER, SEAL (1 parts) 17709E — BRACKET, AIR CLEANER INLET, NO.2 (2 parts) 17709D — BRACKET, AIR CLEANER INLET, NO.1 (2 parts) 9461310800 — not listed in this catalogue 9014980016 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (11 parts) 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (4 parts) 17709F — PAD, AIR CLEANER INLET, NO.2 (2 parts) 17709H — PAD, AIR CLEANER INLET, NO.1 (2 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (13 parts) 17709G — BRACKET SUB-ASSY, AIR CLEANER INLET PIPE (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (13 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17881 — HOSE, AIR CLEANER, NO.1 (7 parts) 9011908198 — not listed in this catalogue 9165140820 — not listed in this catalogue 17709K — BRACKET, AIR CLEANER INLET, NO.4 (2 parts) 9017608015 — not listed in this catalogue 17861 — CONNECTOR, INTAKE AIR (10 parts) 9011908471 — not listed in this catalogue 17882 — HOSE, AIR CLEANER, NO.2 (10 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (11 parts) 17783A — not listed in this catalogue 17709J — BRACKET, AIR CLEANER INLET, NO.3 (2 parts) 17883 — HOSE, AIR CLEANER, NO.3 (4 parts) 17885C — CLAMP(FOR AIR CLEANER HOSE, NO.5) (2 parts) 17885A — HOSE, AIR CLEANER, NO.5 (2 parts) 9011908471 — not listed in this catalogue 17861D — CLAMP(FOR INTAKE AIR CONNECTOR) (3 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (13 parts) 17885C — CLAMP(FOR AIR CLEANER HOSE, NO.5) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (10 parts) 17902 — INLET SUB-ASSY, HOT AIR INTAKE, NO.1 (3 parts) 17886A — CLAMP(FOR AIR CLEANER HOSE, NO.6) (1 parts) 9165140612 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (13 parts) 17806 — PIPE SUB-ASSY, AIR CLEANER, NO.2 (1 parts) 9161160814 — not listed in this catalogue 17886 — HOSE, AIR CLEANER, NO.6 (1 parts)
MA7789B · 36 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
135 parts on this figure
Part number Description Fitment Price
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06018 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
90116-06021 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-09 → 1987-08 ended
22R RU75,85 —
17706 — Inlet Sub-assy, Air Cleaner, NO.2
53097-95402 Inlet Sub-assy, Air Cleaner, NO.2
1985-08 → 1987-08 ended
3Y,4Y YU60,62,8# RHD (GEN,SA) —
53097-95402 Inlet Sub-assy, Air Cleaner, NO.2
1984-09 → 1985-08 ended
3Y,4Y YU60,80 RHD —
53097-95403 Inlet Sub-assy, Air Cleaner, NO.2
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 LHD GEN —
53097-95403 Inlet Sub-assy, Air Cleaner, NO.2
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# LHD GEN —
17709 — Inlet Sub-assy, Air Cleaner
53097-95404 Inlet Sub-assy, Air Cleaner
1984-09 → 1985-08 ended
1W WU9# —
53097-95404 Inlet Sub-assy, Air Cleaner
1984-09 → 1985-08 ended
22R RU75,85 —
53097-95405 note Inlet Sub-assy, Air Cleaner
1984-09 → 1985-08 ended
22R RU75,85 —
53097-95405 note Inlet Sub-assy, Air Cleaner
1984-09 → 1985-08 ended
1W WU9# GEN —
53097-95407 note Inlet Sub-assy, Air Cleaner
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 —
53097-95407 note Inlet Sub-assy, Air Cleaner
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
53097-95409 Inlet Sub-assy, Air Cleaner
1985-08 → 1987-08 ended
22R RU75,85 —
53097-95409 Inlet Sub-assy, Air Cleaner
1985-08 → 1987-08 ended
1W WU9# —
53097-95410 note Inlet Sub-assy, Air Cleaner
1985-08 → 1987-08 ended
22R RU75,85 GEN —
53097-95410 note Inlet Sub-assy, Air Cleaner
1985-08 → 1987-08 ended
1W WU9# GEN —
53097-95411 note Inlet Sub-assy, Air Cleaner
1987-02 → 1987-08 ended
1W WU9# LHD IV3 —
53097-95421 note Inlet Sub-assy, Air Cleaner
1987-02 → 1987-08 ended
1W WU9# LHD IV3 —
53980-95400 note Inlet Sub-assy, Air Cleaner
1987-01 → 1987-08 ended
4Y YU62 TW1 —
53980-95400 note Inlet Sub-assy, Air Cleaner
1987-01 → 1987-08 ended
4Y YU71 —
17709D — Bracket, Air Cleaner Inlet, NO.1
53772-95401 note Bracket, Air Cleaner Inlet, NO.1
1987-01 → 1987-08 ended
4Y YU71 —
53772-95401 note Bracket, Air Cleaner Inlet, NO.1
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709E — Bracket, Air Cleaner Inlet, NO.2
53773-95402 note Bracket, Air Cleaner Inlet, NO.2
1987-01 → 1987-08 ended
4Y YU71 —
53773-95402 note Bracket, Air Cleaner Inlet, NO.2
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709F — Pad, Air Cleaner Inlet, NO.2
53967-95402 note Pad, Air Cleaner Inlet, NO.2
1987-01 → 1987-08 ended
4Y YU71 —
53967-95402 note Pad, Air Cleaner Inlet, NO.2
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709G — Bracket Sub-assy, Air Cleaner Inlet Pipe
53907-95402 note Bracket Sub-assy, Air Cleaner Inlet Pipe
1987-01 → 1987-08 ended
4Y YU71 —
53907-95402 note Bracket Sub-assy, Air Cleaner Inlet Pipe
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709H — Pad, Air Cleaner Inlet, NO.1
53966-95402 note Pad, Air Cleaner Inlet, NO.1
1987-01 → 1987-08 ended
4Y YU71 —
53966-95402 note Pad, Air Cleaner Inlet, NO.1
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709J — Bracket, Air Cleaner Inlet, NO.3
53764-95405 note Bracket, Air Cleaner Inlet, NO.3
1987-01 → 1987-08 ended
4Y YU71 —
53764-95405 note Bracket, Air Cleaner Inlet, NO.3
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17709K — Bracket, Air Cleaner Inlet, NO.4
53765-95404 note Bracket, Air Cleaner Inlet, NO.4
1987-01 → 1987-08 ended
4Y YU71 —
53765-95404 note Bracket, Air Cleaner Inlet, NO.4
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17730 — Precleaner Assy, Air W/Hose
17730-56010 Precleaner Assy, Air W/Hose
1985-08 → 1986-05 ended
3Y YU61 —
17730-56010 note Precleaner Assy, Air W/Hose
1984-09 → 1986-05 ended
3Y,4Y YU60,80 T3 —
17730-56011 Precleaner Assy, Air W/Hose
1986-05 → 1987-08 ended
3Y,4Y YU61,63 —
17730-56011 note Precleaner Assy, Air W/Hose
1986-05 → 1987-08 ended
22R RU75,85 —
17730-56011 note Precleaner Assy, Air W/Hose
1986-05 → 1987-08 ended
1W WU9# —
17730-56011 note Precleaner Assy, Air W/Hose
1986-05 → 1987-08 ended
3Y,4Y YU60,62,8# T3 —
17730-56020 note Precleaner Assy, Air W/Hose
1987-01 → 1987-08 ended
4Y YU71 —
17730-56020 note Precleaner Assy, Air W/Hose
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17730-58010 note Precleaner Assy, Air W/Hose
1984-09 → 1986-05 ended
1W WU9# —
17730-58010 note Precleaner Assy, Air W/Hose
1984-09 → 1986-05 ended
22R RU75,85 —
17730B — Clamp, Hose(FOR PRECLEANER HOSE)
96111-10780 note Clamp, Hose(FOR PRECLEANER HOSE)
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 —
96111-10780 Clamp, Hose(FOR PRECLEANER HOSE)
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
96111-10780 note Clamp, Hose(FOR PRECLEANER HOSE)
1986-05 → 1987-08 ended
22R RU75,85 —
96111-10780 note Clamp, Hose(FOR PRECLEANER HOSE)
1986-05 → 1987-08 ended
1W WU9# —
96111-10830 note Clamp, Hose(FOR PRECLEANER HOSE)
1984-09 → 1986-05 ended
1W WU9# —
96111-10830 note Clamp, Hose(FOR PRECLEANER HOSE)
1984-09 → 1986-05 ended
22R RU75,85 —
96111-10880 note Clamp, Hose(FOR PRECLEANER HOSE)
1986-05 → 1987-08 ended
1W WU9# —
96111-10880 note Clamp, Hose(FOR PRECLEANER HOSE)
1987-01 → 1987-08 ended
4Y YU62 TW1 —
96111-10880 note Clamp, Hose(FOR PRECLEANER HOSE)
1987-01 → 1987-08 ended
4Y YU71 —
96111-10880 note Clamp, Hose(FOR PRECLEANER HOSE)
1986-05 → 1987-08 ended
22R RU75,85 —
17742 — Plate, Air Cleaner Inlet Cover
53977-95400 Plate, Air Cleaner Inlet Cover
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
53977-95400 Plate, Air Cleaner Inlet Cover
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
17768 — Cover, Air Cleaner Inlet
53767-95400 Cover, Air Cleaner Inlet
1984-09 → 1985-08 ended
3Y,4Y YU60,80 RHD —
53767-95400 Cover, Air Cleaner Inlet
1985-08 → 1987-08 ended
3Y,4Y YU60,62,8# RHD (GEN,SA) —
53767-95401 Cover, Air Cleaner Inlet
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 LHD GEN —
53767-95401 Cover, Air Cleaner Inlet
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# LHD GEN —
17805 — Connector Sub-assy, Intake Air
17805-35020 Connector Sub-assy, Intake Air
1984-09 → 1985-03 ended
22R RU75,85 —
17805-35021 Connector Sub-assy, Intake Air
1985-03 → 1987-08 ended
22R RU75,85 —
17805-71010 Connector Sub-assy, Intake Air
1984-09 → 1984-10 ended
3Y,4Y YU6#,70,80 —
17805-71011 Connector Sub-assy, Intake Air
1984-10 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
17805A — Gasket & Washer, Seal
90210-09026 Gasket & Washer, Seal
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
17806 — Pipe Sub-assy, Air Cleaner, NO.2
17806-73010 note Pipe Sub-assy, Air Cleaner, NO.2
1984-09 → 1987-08 ended
3Y,4Y YU60,62 RHD GEN +1 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-35010 Gasket, Air Cleaner TO Carburetor
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
17848-35010 Gasket, Air Cleaner TO Carburetor
1984-09 → 1987-08 ended
22R RU75,85 —
17861 — Connector, Intake Air
17805-73050 Connector, Intake Air
1984-09 → 1985-01 ended
3Y,4Y YU60,80 RHD —
17805-73051 Connector, Intake Air
1985-01 → 1985-07 ended
3Y,4Y YU60,80 RHD —
17805-73052 Connector, Intake Air
1985-07 → 1985-08 ended
3Y,4Y YU60,80 RHD —
17805-73052 Connector, Intake Air
1985-08 → 1987-08 ended
3Y,4Y YU60,62,8# RHD (GEN,SA) —
17806-73020 Connector, Intake Air
1984-09 → 1985-01 ended
3Y,4Y YU6#,70,80 LHD GEN —
17806-73021 Connector, Intake Air
1985-01 → 1985-07 ended
3Y,4Y YU6#,70,80 LHD GEN —
17806-73022 Connector, Intake Air
1985-07 → 1985-08 ended
3Y,4Y YU6#,70,80 LHD GEN —
17806-73022 Connector, Intake Air
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# LHD GEN —
17886-58010 Connector, Intake Air
1984-09 → 1986-03 ended
1W WU9# —
17886-58030 Connector, Intake Air
1986-03 → 1987-08 ended
1W WU9# —
17861D — Clamp(FOR INTAKE AIR CONNECTOR)
96111-10750 Clamp(FOR INTAKE AIR CONNECTOR)
1985-07 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
96111-10750 Clamp(FOR INTAKE AIR CONNECTOR)
1985-08 → 1987-08 ended
3Y,4Y YU60,62,71,81 GEN —
96111-10830 Clamp(FOR INTAKE AIR CONNECTOR)
1984-09 → 1985-07 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
17881 — Hose, Air Cleaner, NO.1
17881-35020 Hose, Air Cleaner, NO.1
1984-09 → 1987-08 ended
22R RU75,85 —
17881-58080 Hose, Air Cleaner, NO.1
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
17881-58080 Hose, Air Cleaner, NO.1
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
17881-73050 note Hose, Air Cleaner, NO.1
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 —
17881-73050 Hose, Air Cleaner, NO.1
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
17881-78020 Hose, Air Cleaner, NO.1
1984-09 → 1986-05 ended
1W WU9# —
17881-78021 Hose, Air Cleaner, NO.1
1986-05 → 1987-08 ended
1W WU9# —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1986-08 ended
3Y YU60 EUR —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 (ARL,GEN,SA) —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1987-08 ended
22R RU75,85 —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1987-08 ended
1W WU9# —
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1987-08 ended
1W WU9# —
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-09 → 1987-08 ended
22R RU75,85 —
17882 — Hose, Air Cleaner, NO.2
17882-56090 note Hose, Air Cleaner, NO.2
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 —
17882-58090 Hose, Air Cleaner, NO.2
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
17883-58010 Hose, Air Cleaner, NO.2
1986-05 → 1987-08 ended
22R RU75,85 —
17883-58010 Hose, Air Cleaner, NO.2
1984-09 → 1986-05 ended
22R RU75,85 —
17883-58010 Hose, Air Cleaner, NO.2
1984-09 → 1986-05 ended
1W WU9# —
17883-58030 Hose, Air Cleaner, NO.2
1986-05 → 1987-08 ended
1W WU9# —
17883-95402 Hose, Air Cleaner, NO.2
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
17883-95402 Hose, Air Cleaner, NO.2
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
17883-95403 note Hose, Air Cleaner, NO.2
1987-01 → 1987-08 ended
4Y YU71 —
17883-95403 note Hose, Air Cleaner, NO.2
1987-01 → 1987-08 ended
4Y YU62 TW1 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-01 → 1987-08 ended
4Y YU62 TW1 —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-01 → 1987-08 ended
4Y YU71 —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-09 → 1987-08 ended
3Y,4Y YU60,62,8# T3 (ARL,GEN,SA) —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-08 → 1987-08 ended
3Y,4Y YU61,63 —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
1986-05 → 1987-08 ended
1W WU9# —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-09 → 1986-08 ended
3Y YU60 EUR —
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-01 → 1987-08 ended
4Y YU71 —
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-01 → 1987-08 ended
4Y YU62 TW1 —
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-09 → 1986-05 ended
22R RU75,85 —
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.2)
1986-03 → 1987-08 ended
22R RU75,85 —
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-09 → 1986-05 ended
1W WU9# —
17883 — Hose, Air Cleaner, NO.3
17883-58020 Hose, Air Cleaner, NO.3
1985-07 → 1985-08 ended
3Y,4Y YU6#,70,80 ARL,GEN,SA —
17883-58020 Hose, Air Cleaner, NO.3
1985-08 → 1987-08 ended
3Y,4Y YU60,62,7#,8# GEN,SA —
17883-73010 Hose, Air Cleaner, NO.3
1984-09 → 1986-08 ended
3Y YU60 EUR —
17883-73010 note Hose, Air Cleaner, NO.3
1986-10 → 1987-08 ended
4Y YU81 LHD IV3 —
17885A — Hose, Air Cleaner, NO.5
17881-74040 note Hose, Air Cleaner, NO.5
1985-02 → 1987-08 ended
3Y,4Y YU60,62 RHD GEN +1 —
17882-31060 note Hose, Air Cleaner, NO.5
1984-09 → 1985-02 ended
3Y YU60 RHD GEN +1 —
17885C — Clamp(FOR AIR CLEANER HOSE, NO.5)
90460-47036 note Clamp(FOR AIR CLEANER HOSE, NO.5)
1986-08 → 1987-08 ended
4Y YU62 RHD GEN +1 —
96111-10460 note Clamp(FOR AIR CLEANER HOSE, NO.5)
1984-09 → 1986-08 ended
3Y YU60 RHD GEN +1 —
17886 — Hose, Air Cleaner, NO.6
17881-34040 note Hose, Air Cleaner, NO.6
1984-09 → 1987-08 ended
3Y,4Y YU60,62 RHD GEN +1 —
17886A — Clamp(FOR AIR CLEANER HOSE, NO.6)
90467-37002 note Clamp(FOR AIR CLEANER HOSE, NO.6)
1984-09 → 1987-08 ended
3Y,4Y YU60,62 RHD GEN +1 —
17902 — Inlet Sub-assy, Hot Air Intake, NO.1
17895-73010 note Inlet Sub-assy, Hot Air Intake, NO.1
1984-09 → 1987-08 ended
3Y,4Y YU60,62 RHD GEN +1 —
17895-73020 Inlet Sub-assy, Hot Air Intake, NO.1
1984-09 → 1986-08 ended
3Y YU60 EUR —
17895-73020 note Inlet Sub-assy, Hot Air Intake, NO.1
1986-10 → 1987-08 ended
4Y YU81 LHD IV3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
