Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

36 part groups · 3 illustrations

Illustrations

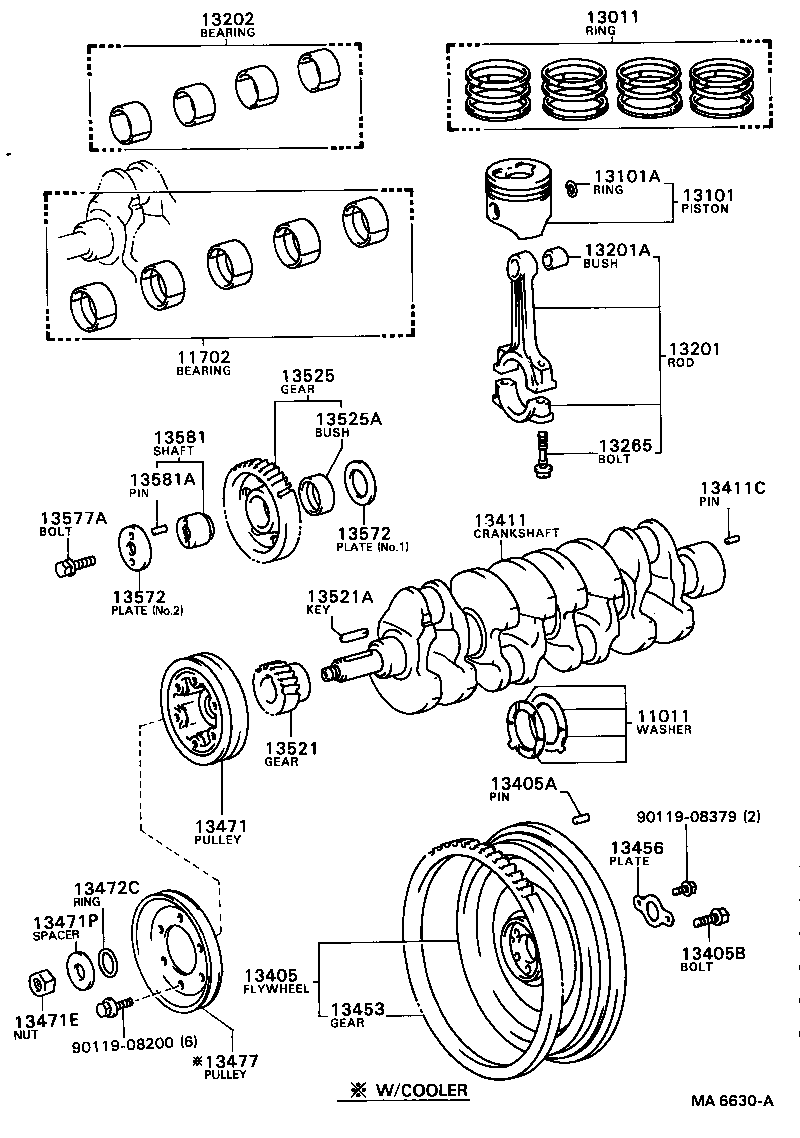

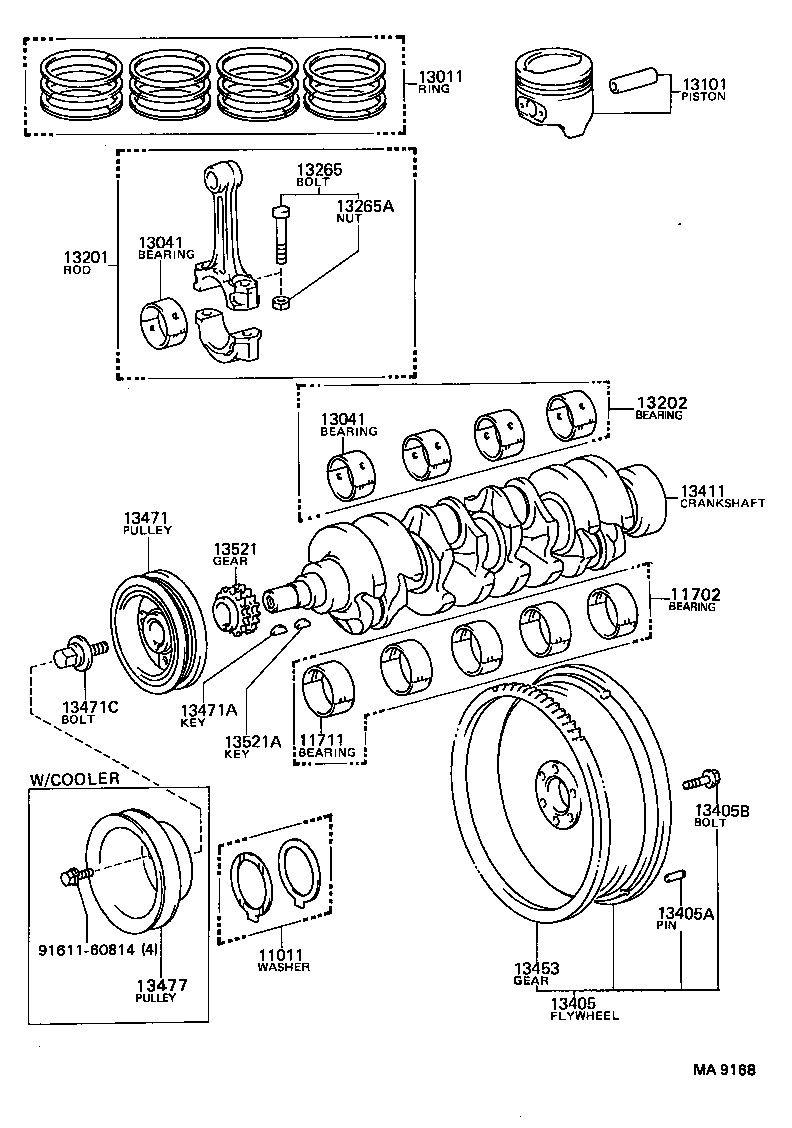

Figure MA7798A MA7798A 1984-09 → — Figure MA6630A MA6630A 1984-09 → — Figure MA9168 MA9168 1984-09 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13265A Nut, Hexagon(FOR CONNECTING ROD BOLT)
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13434 Spline, Oil Pump Drive
13434A Key(FOR OIL PUMP DRIVE SPLINE)
13453 Gear, Flywheel Ring
13456 Plate, Flywheel Bolt Lock, NO.2
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13471E Nut(FOR CRANKSHAFT PULLEY)
13471P Spacer(FOR CRANKSHAFT PULLEY)
13472C Ring, O(FOR CRANKSHAFT PULLEY HUB)
13477 Pulley, Crankshaft, NO.2
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13525 Gear, Idle, NO.1
13525A Bush, Idle Gear
13572 Plate, Idle Gear Thrust
13577A Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK)
13581 Shaft, Idle Gear, NO.1
13581A Pin, Straight(FOR IDLE GEAR SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
