Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

11 part groups · 3 illustrations

Illustrations

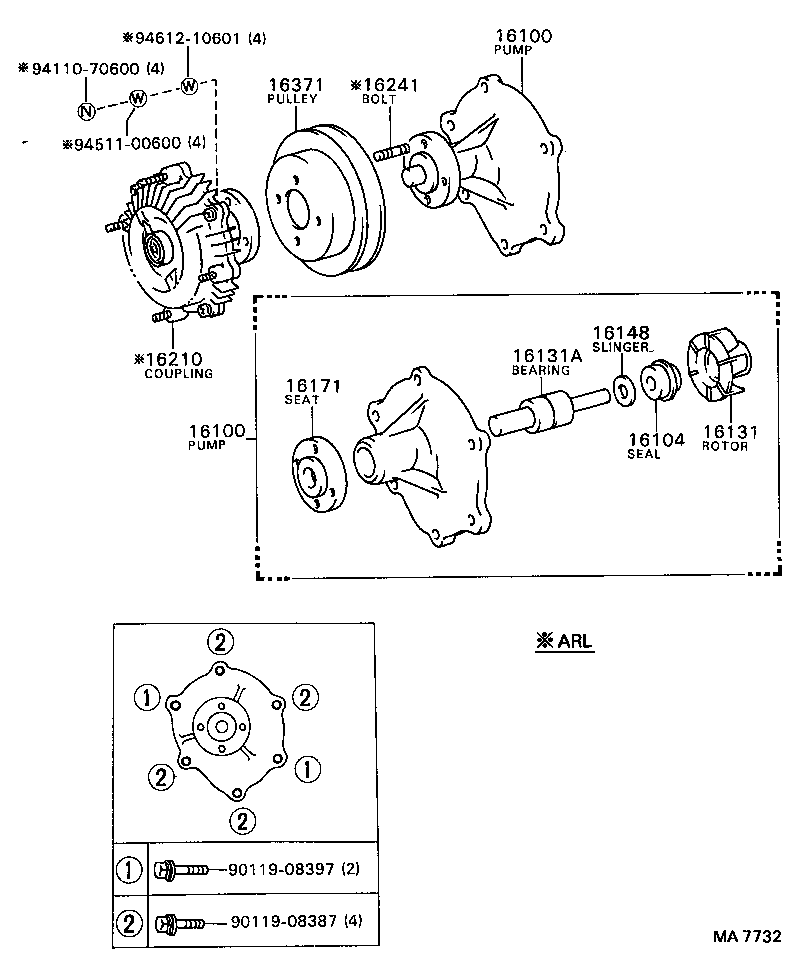

Figure MA7723A MA7723A 1984-09 → — Figure MA7732 MA7732 1984-09 → — Figure MA7702A MA7702A 1984-09 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100G Bolt, Stud(FOR WATER PUMP SET)
16104 Seal Set, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16148 Slinger, Water Pump
16171 Seat, Water Pump Pulley
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
