Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

56 part groups · 18 illustrations

Illustrations

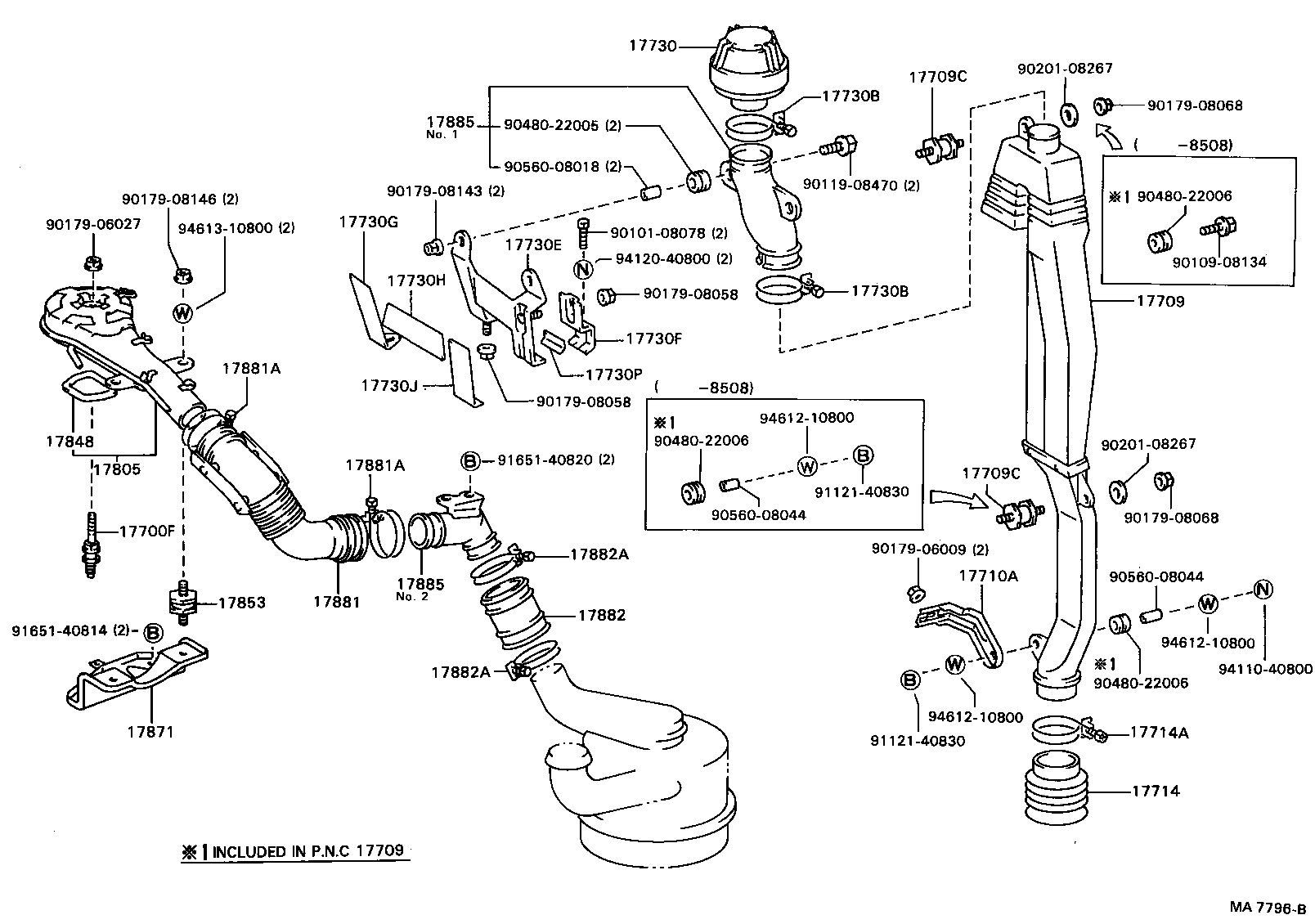

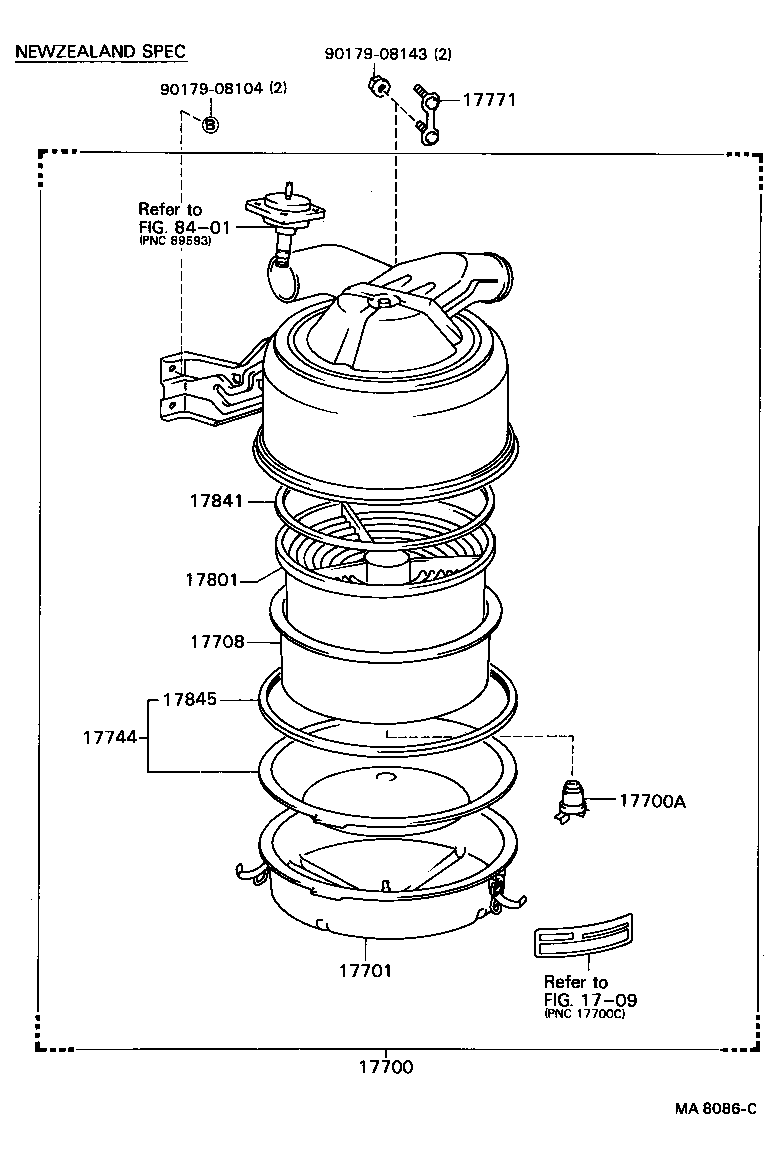

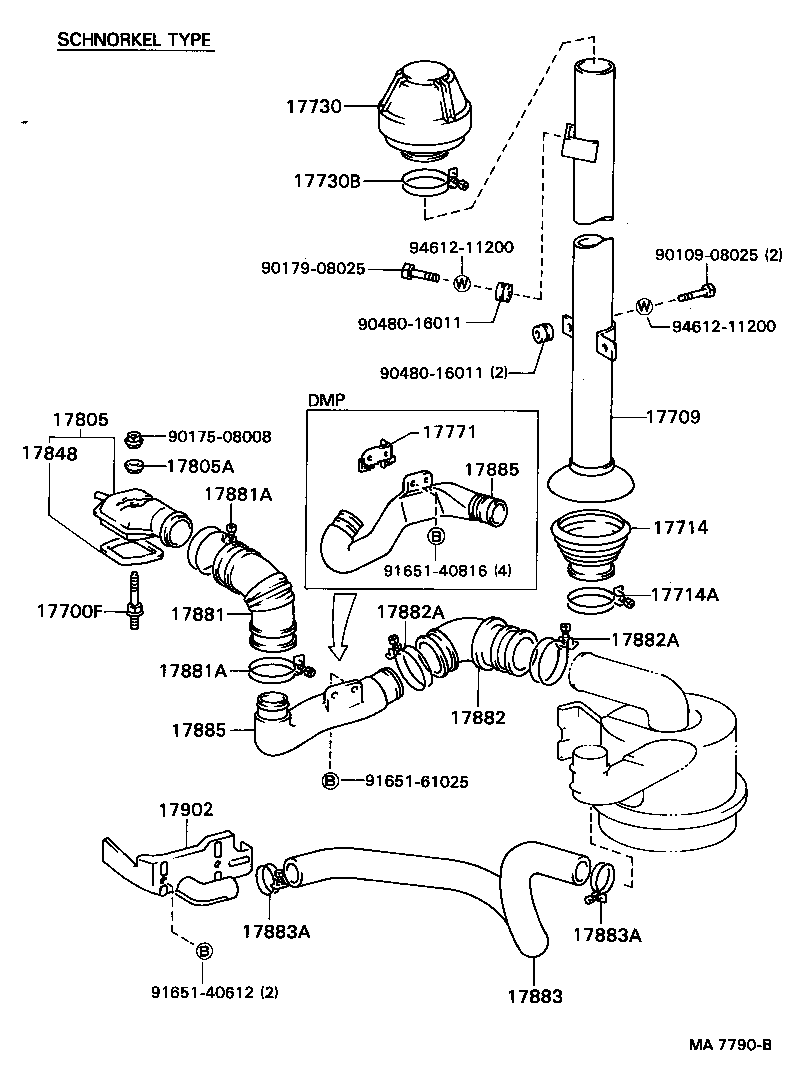

Figure MA7657C MA7657C 1984-09 → — Figure MA7680C MA7680C 1984-09 → — Figure MA7796B MA7796B 1984-09 → — Figure MA7657C MA7657C 1984-09 → — Figure MA7680C MA7680C 1984-09 → — Figure MA7683D MA7683D 1984-09 → — Figure MA7705C MA7705C 1984-09 → 1986-08 Figure MA8086C MA8086C 1984-09 → — Figure MA7761D MA7761D 1984-09 → — Figure MA7676C MA7676C 1984-09 → 1985-08 Figure MA7676C MA7676C 1985-08 → — Figure MA7677C MA7677C 1984-09 → — Figure MA7677C MA7677C 1985-08 → — Figure MA7678C MA7678C 1984-09 → — Figure MA7678C MA7678C 1985-08 → — Figure MA7789B MA7789B 1984-09 → — Figure MA7790B MA7790B 1984-09 → — Figure MA7790B MA7790B 1985-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17708 Baffle Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17709C Cushion, Air Cleaner Inlet
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709F Pad, Air Cleaner Inlet, NO.2
17709G Bracket Sub-assy, Air Cleaner Inlet Pipe
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17714 Rubber Seal, Air Intake
17714A Clamp(FOR AIR INTAKE RUBBER SEAL)
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730E Bracket, Precleaner, NO.1
17730F Bracket, Precleaner, NO.2
17730G Pad, Precleaner
17730H Pad, Precleaner, NO.2
17730J Pad, Precleaner, NO.3
17730P Pad, Precleaner, NO.4
17742 Plate, Air Cleaner Inlet Cover
17744 Cup, Precleaner
17768 Cover, Air Cleaner Inlet
17771 Bracket, Air Cleaner Inlet Duct
17788 Gage, Air Cleaner Oil Level
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17893 Resonator, Intake Air
17902 Inlet Sub-assy, Hot Air Intake, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
