Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

5 part groups · 6 illustrations

Illustrations

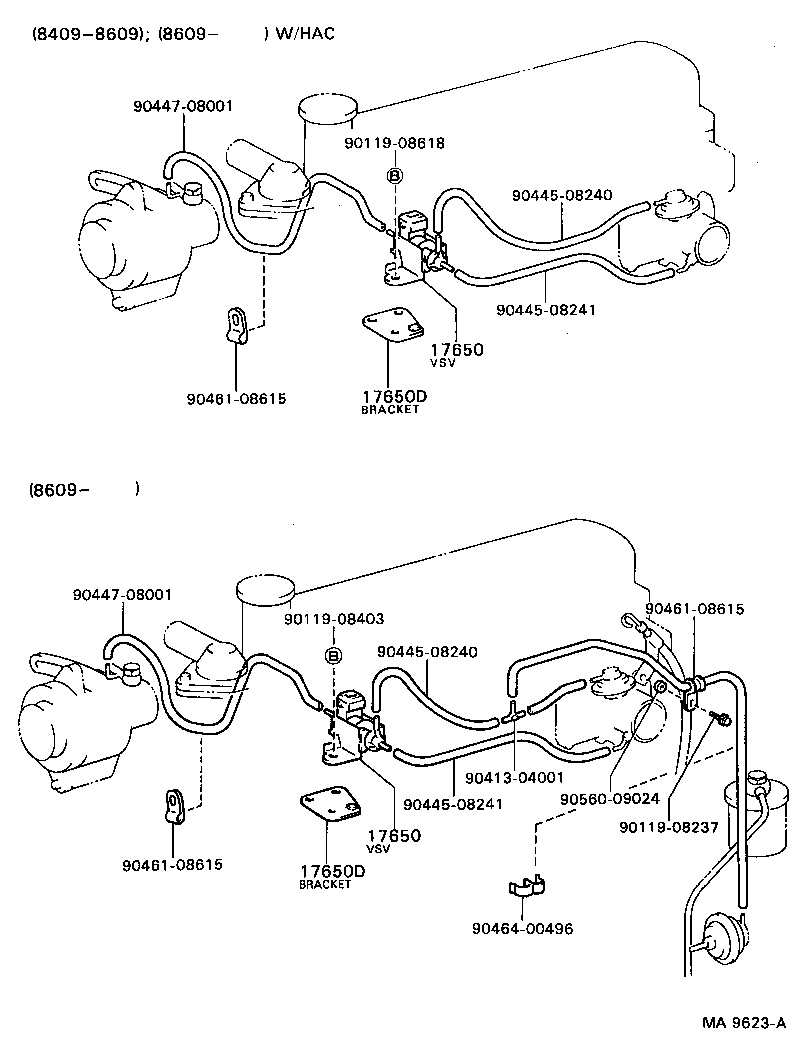

Figure MA9504A MA9504A 1984-09 → — Figure MA7797B MA7797B 1984-09 → — Figure MA9504A MA9504A 1984-09 → — Figure MA9623A MA9623A 1984-09 → — Figure MA9504A MA9504A 1984-09 → — Figure MA7706A MA7706A 1984-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23269 Union(FOR GAS FILTER)
23281 Valve, Vacuum Transmitting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
