Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

20 part groups · 3 illustrations

Illustrations

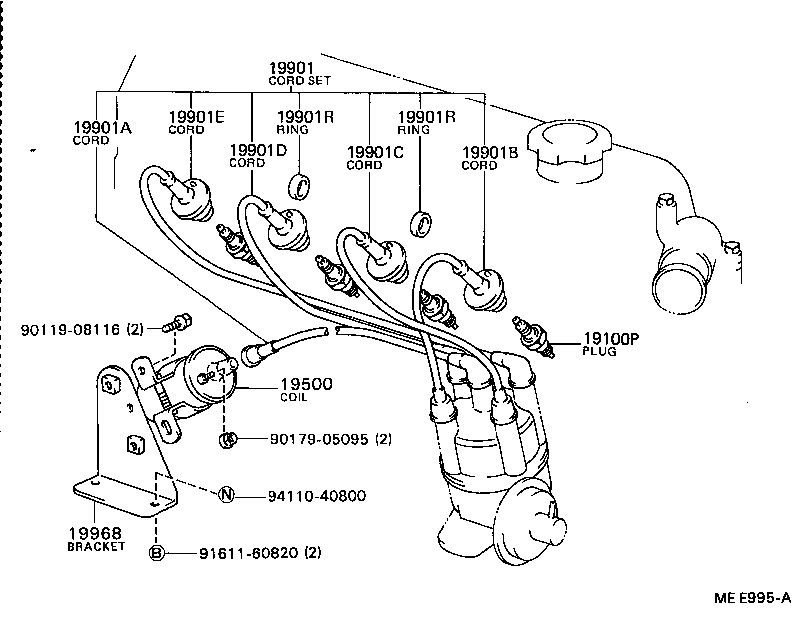

Figure MEF067 MEF067 1984-09 → — Figure MED283 MED283 1984-09 → — Figure MEE995A MEE995A 1984-09 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19944 Plate, Resistive Cord Clamp Support, NO.2
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19965 Band, Ignition Coil, NO.1
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
