Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

27 part groups · 3 illustrations

Illustrations

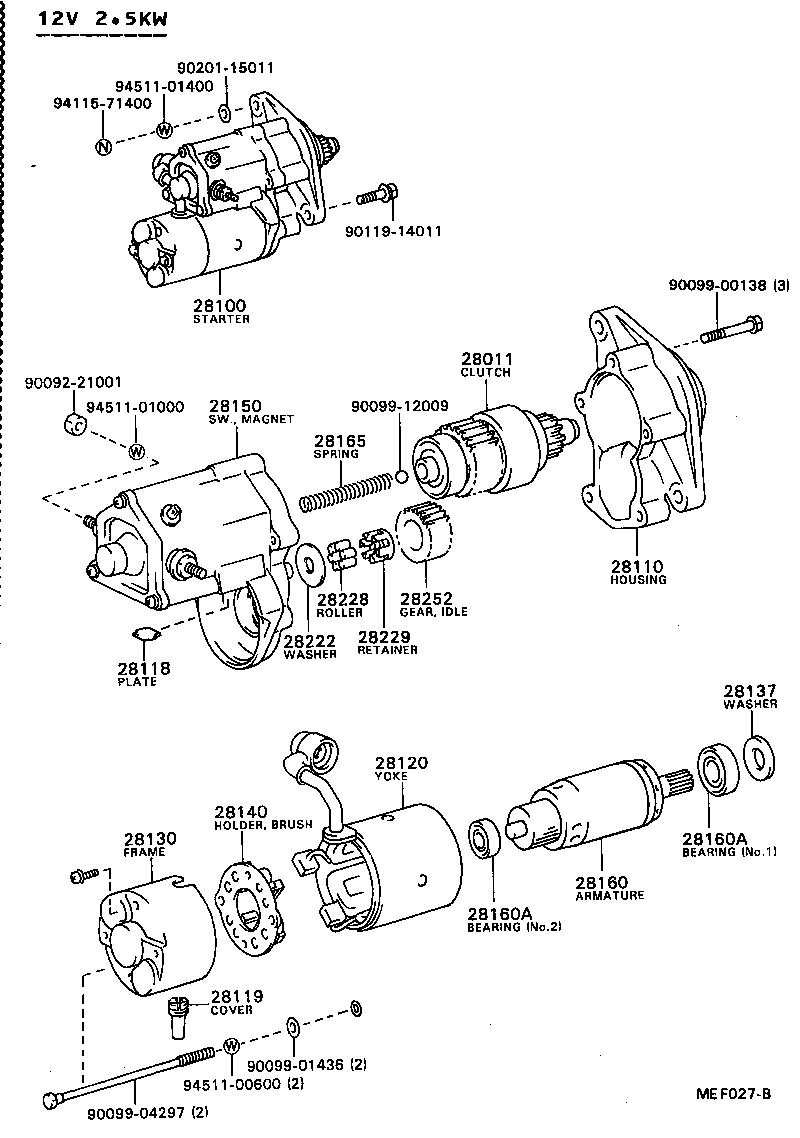

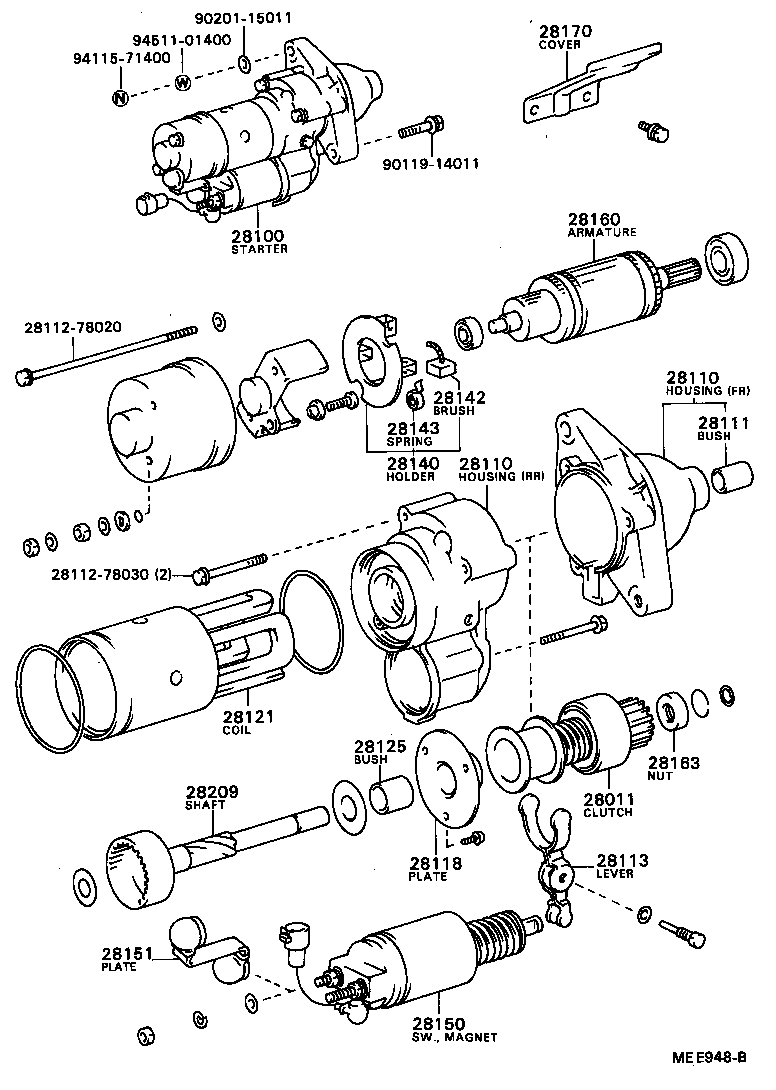

Figure MEH715 MEH715 1984-09 → — Figure MEF027B MEF027B 1984-09 → — Figure MEE948B MEE948B 1984-09 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28121 Coil, Starter Field
28125 Bush, Starter Center Bearing
28130 Frame Assy, Starter Commutator End
28137 Washer, Felt, Starter
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28151 Plate, Lead, Switch Connecting
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28163 Nut OR Collar, Pinion Stop, Starter
28165 Spring, Starter Magnet Switch Return
28170 Cover Assy, Starter
28209 Shaft Sub-assy, Starter
28222 Washer, Starter Idle Gear Clutch
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
