Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

9 part groups · 2 illustrations

Illustrations

Figure MEF751

MEF751 1984-09 → —

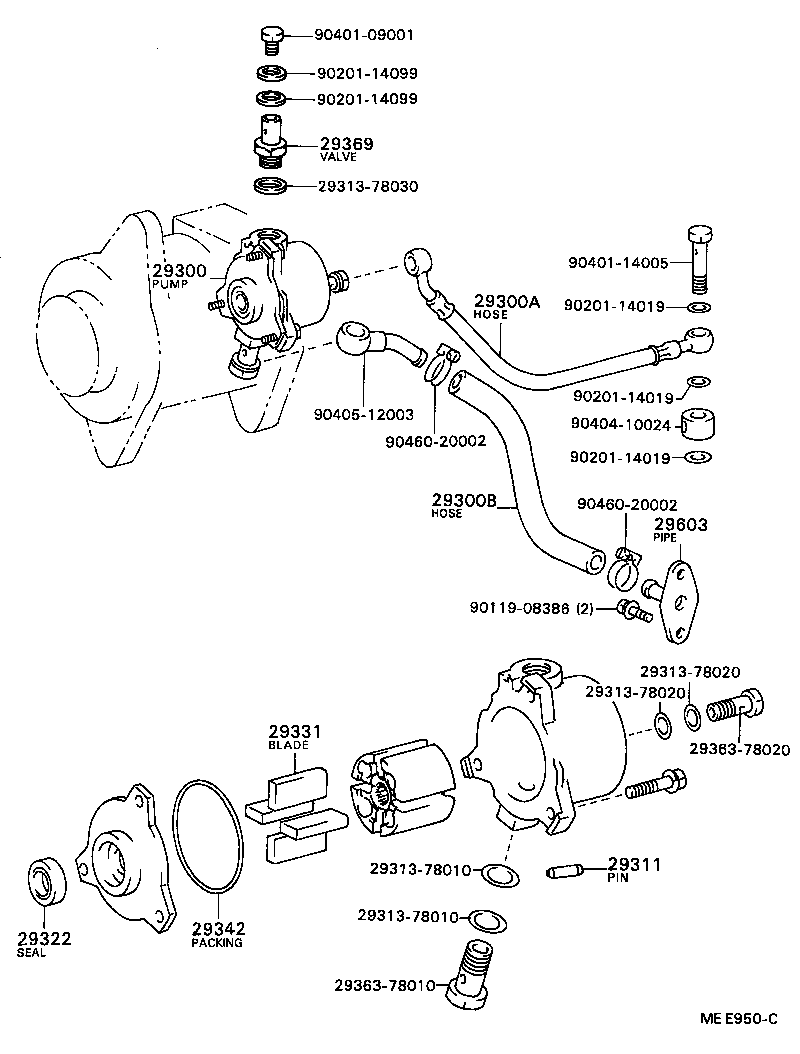

Figure MEE950C

MEE950C 1984-09 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300A	Hose, Vacuum Pump Oil Inlet
29300B	Hose, Vacuum Pump Oil Outlet
29311	Pin, Vacuum Pump Dowel, NO.1
29322	Bush, Oil Seal, Vacuum Pump
29331	Blade, Vacuum Pump, A
29342	Packing, Vacuum Pump
29369	Valve Sub-assy, Check
29603	Pipe, Vacuum Pump Oil Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
