Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

13 part groups · 2 illustrations

Illustrations

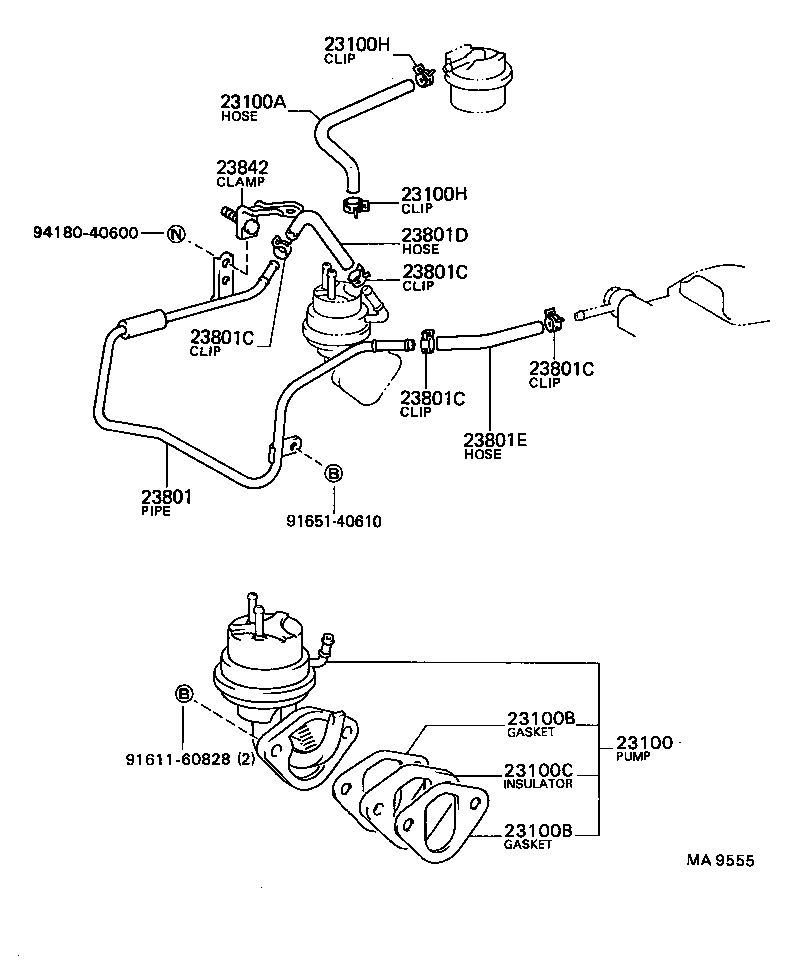

Figure MF2833A MF2833A 1984-09 → — Figure MA9555 MA9555 1984-09 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23100P Hose(FOR FUEL PUMP TO FUEL TUBE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23801E Hose, Fuel Pipe, NO.2
23814 Pipe, Fuel Delivery
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
