Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 5 illustrations

Illustrations

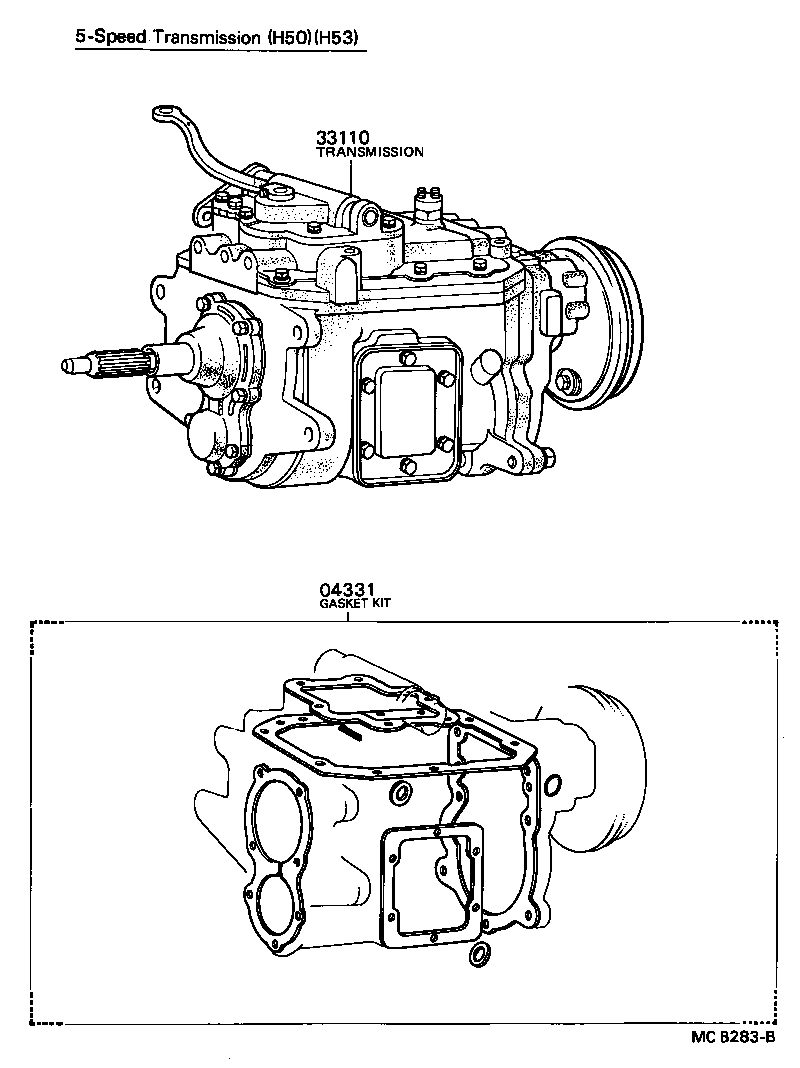

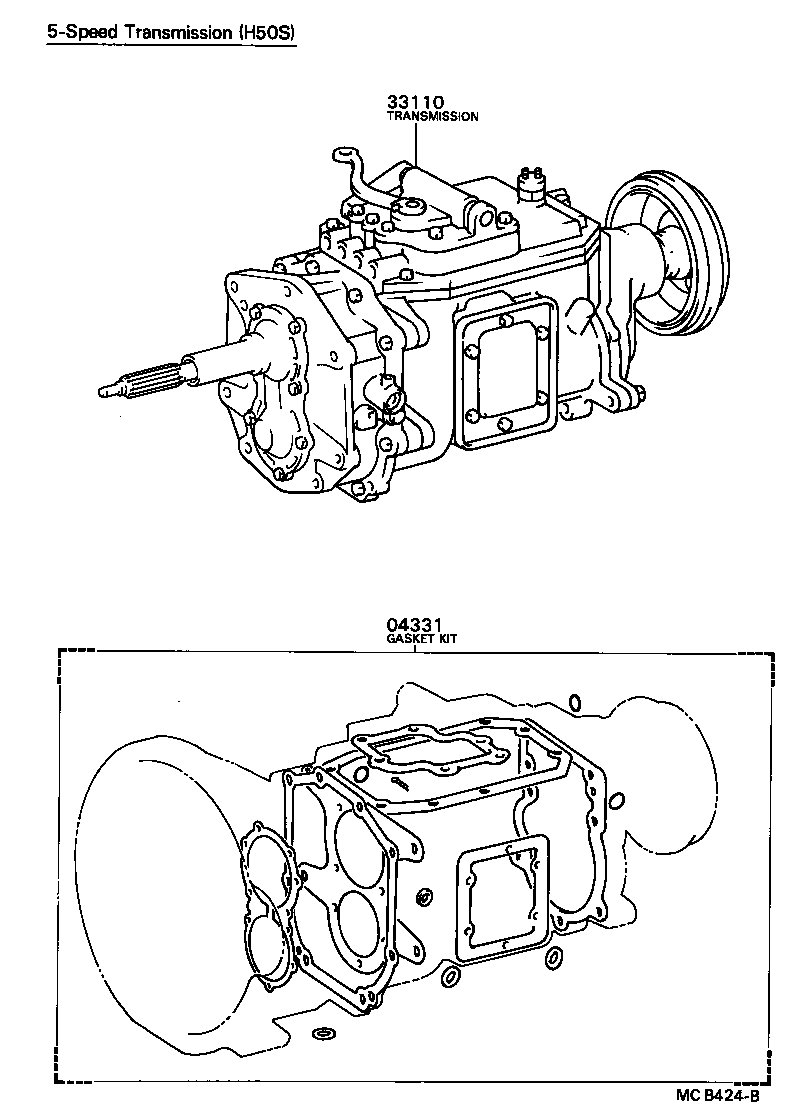

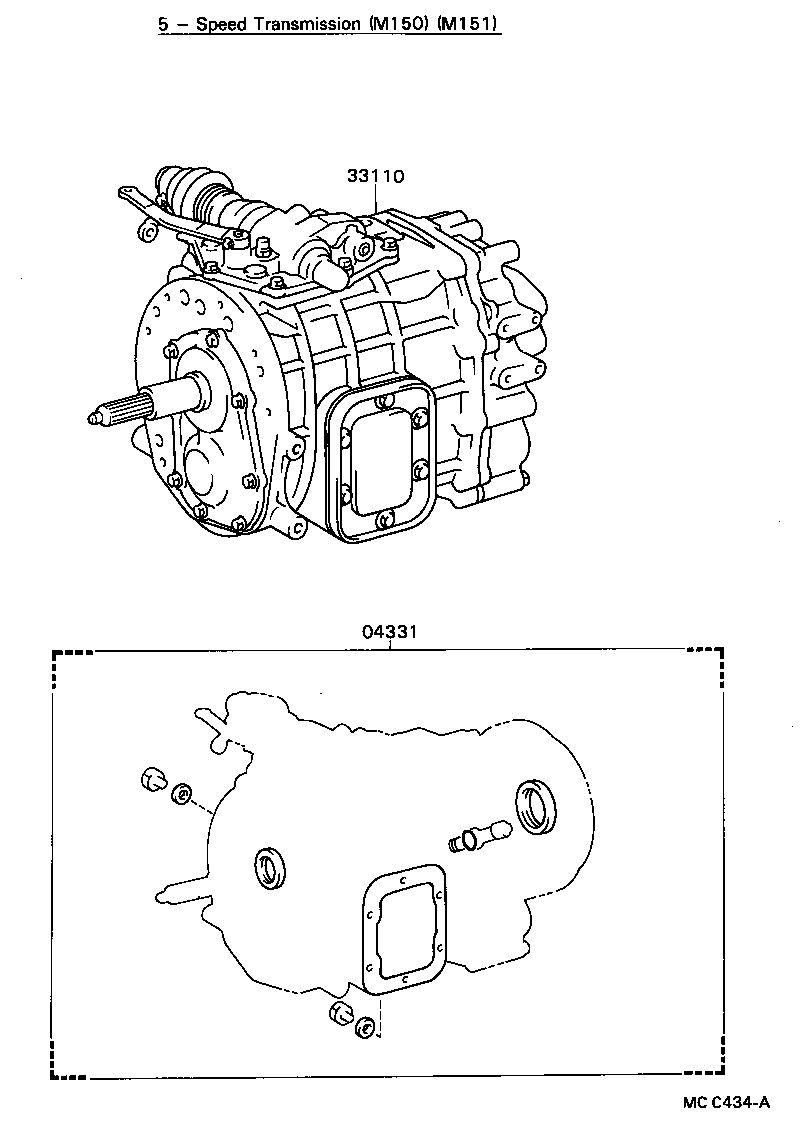

Figure MCB282B MCB282B 1984-09 → 1985-08 Figure MCC434A MCC434A 1985-08 → — Figure MCB424B MCB424B 1985-08 → — Figure MCB283B MCB283B 1984-09 → 1985-08 Figure MCB283B MCB283B 1985-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
