Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

31 part groups · 2 illustrations

Illustrations

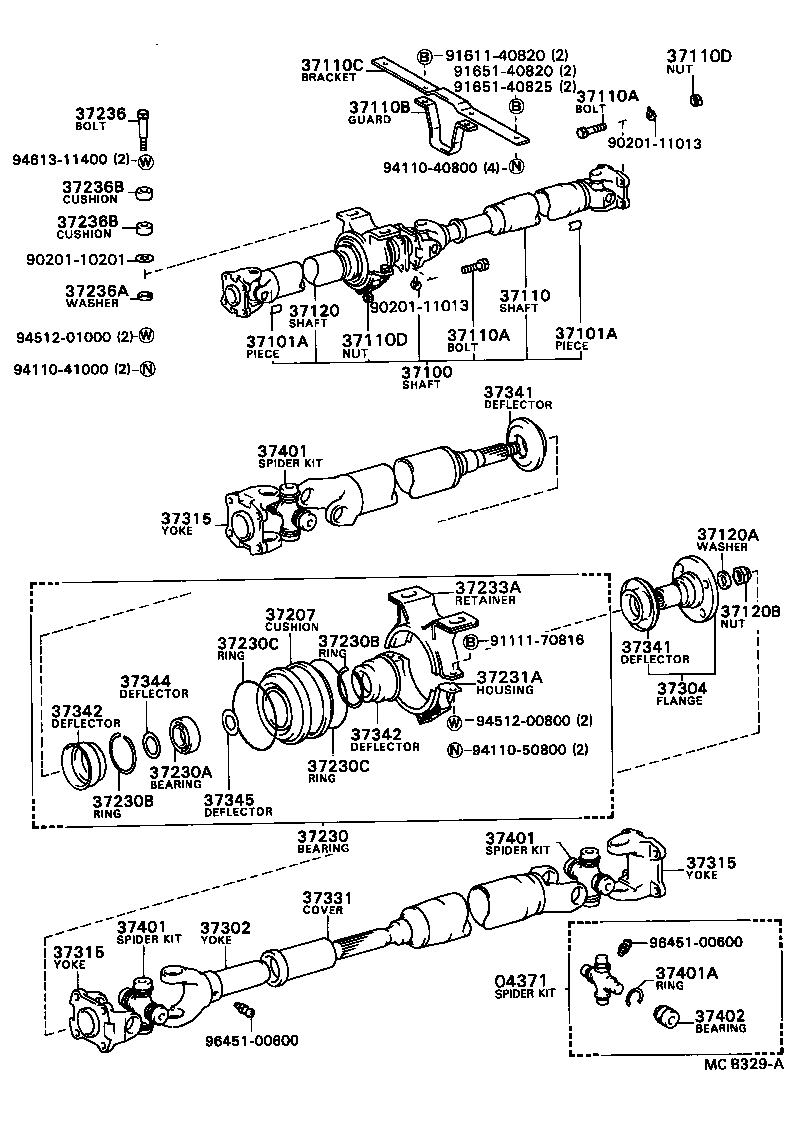

Figure MCB328B MCB328B 1984-09 → — Figure MCB329A MCB329A 1984-09 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37230A Bearing, NO.1 (FOR CENTER SUPPORT)
37230B Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
37230C Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
37231A Housing, Center Support Bearing, NO.1
37233A Housing, Center Support Bearing, NO.2
37236 Bolt, Center Support Bearing Housing
37236A Washer, Plate (FOR CENTER SUPPORT BEARING HOUSING)
37236B Cushion (FOR CENTER SUPPORT BEARING HOUSING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37341 Deflector, Propeller Shaft Dust, NO.1
37342 Deflector, Propeller Shaft Dust, NO.2
37344 Deflector, Propeller Shaft Dust, NO.3
37345 Deflector, Propeller Shaft Dust, NO.4
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
