Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

17 part groups · 6 illustrations

Illustrations

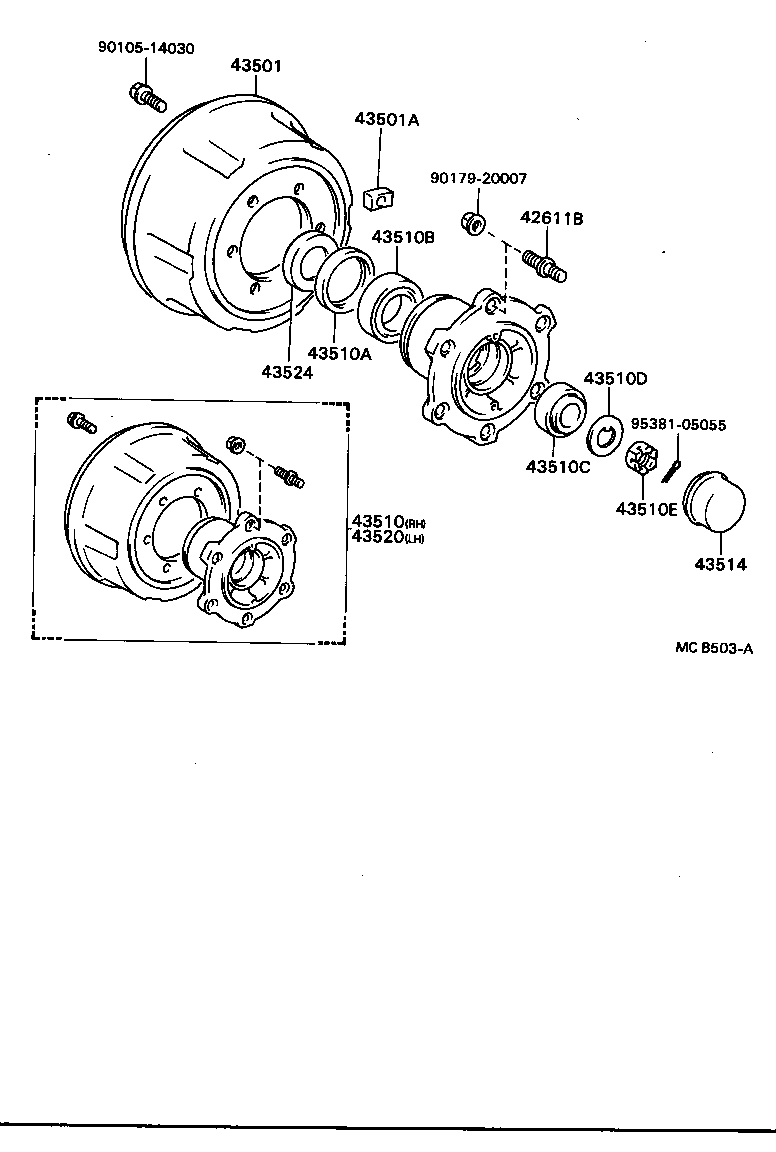

Figure MCB337 MCB337 1984-09 → — Figure MCB972B MCB972B 1984-09 → — Figure MC8462C MC8462C 1984-09 → 1985-08 Figure MC8462C MC8462C 1984-09 → — Figure MC8462C MC8462C 1985-08 → — Figure MCB503A MCB503A 1984-09 → —

Part groups

PNCDescription
42611B Bolt, Hub (FOR FRONT AXLE)
43501 Drum Sub-assy, Front Brake
43501A Piece, Balance (FOR FRONT BRAKE DRUM)
43501B Bolt, Set (FOR FRONT BRAKE DRUM SETTING)
43502 Hub Sub-assy, Front Axle
43510 Hub And Brake Drum Assy, Front Axle, RH
43510A Seal, Oil (FOR FRONT AXLE HUB)
43510B Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
43510C Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
43510D Washer, Claw (FOR STEERING KNUCKLE WASHER)
43510E Nut (FOR STEERING KNUCKLE)
43510F Ring, Shaft Snap (FOR FRONT AXLE HUB)
43512 Disc, Front
43514 Cap, Front Hub Grease
43520 Hub And Brake Drum Assy, Front Axle, LH
43524 Spacer, Front Wheel Inner Bearing
43525 Cap, Front Wheel Adjusting Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
