Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

22 part groups · 2 illustrations

Illustrations

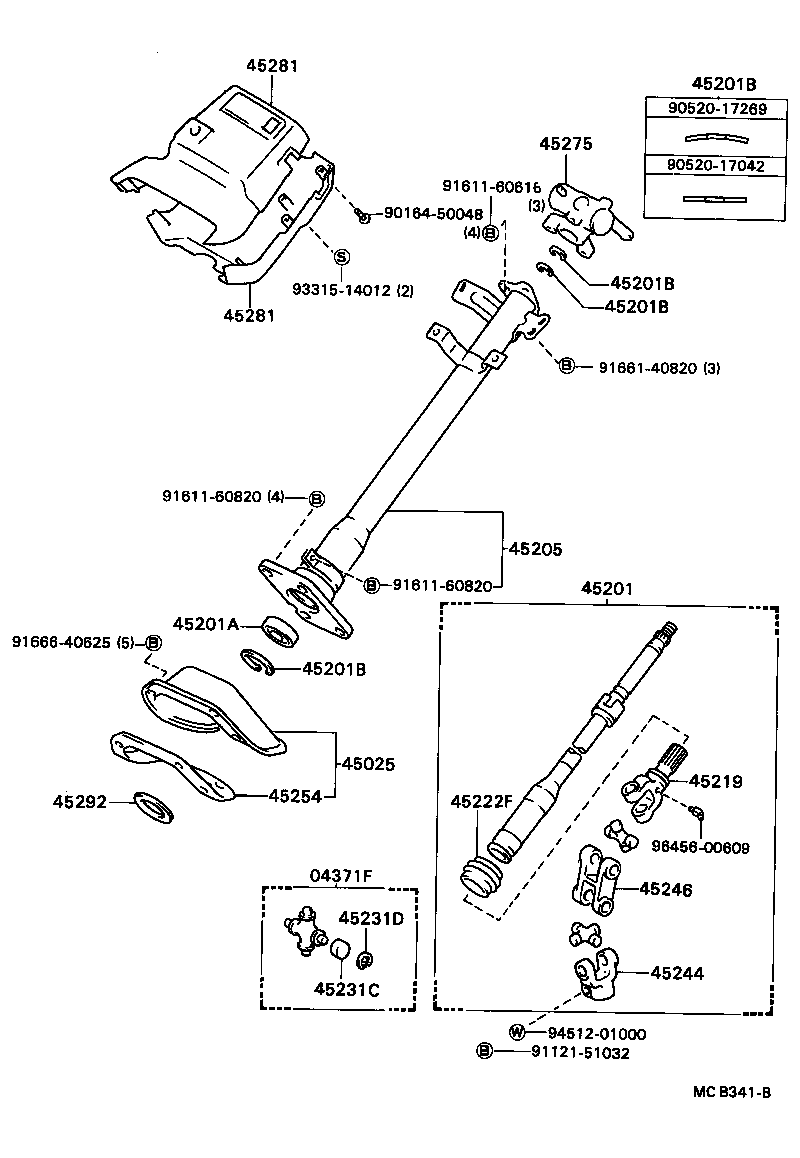

Figure MCB340B MCB340B 1984-09 → — Figure MCB341B MCB341B 1984-09 → —

Part groups

PNCDescription
04371F Spider Kit, Universal Joint(FOR STEERING MAIN SHAFT)
45025 Cover, Steering Intermediate Shaft
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201Q Ring(FOR STEERING COLUMN RING)
45205 Tube Sub-assy, Steering Column
45219 Yoke, Steering Sliding
45222F Cover, Dust
45224 Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
45231C Bearing, Universal Joint Spider(FOR STEERING MAIN SHAFT)
45231D Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45244 Yoke, Steering Worm
45246 Yoke, Steering Intermediate
45254 Shield, Steering Column Hole
45263 Ring, Steering Column, NO.1
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45292 Seal, Main Shaft Lower Dust
45298 Plug, Steering Column Cover
45872 Cover, Steering Column Tube
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
