Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

18 part groups · 4 illustrations

Illustrations

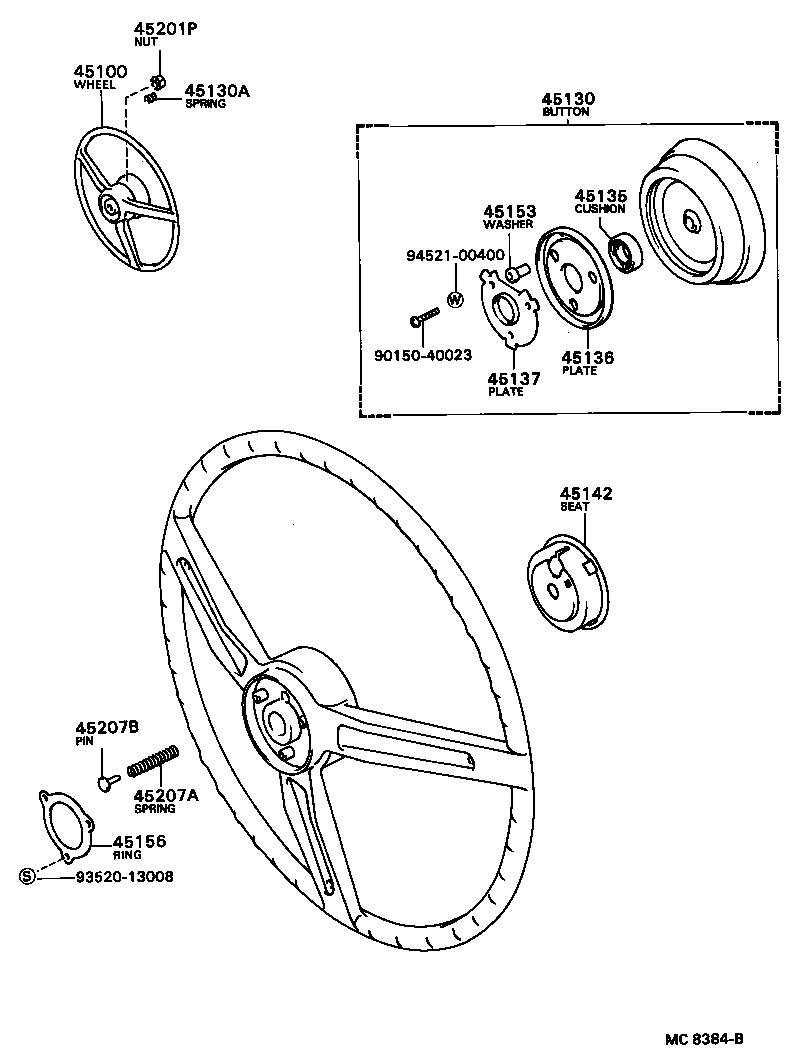

Figure MCB350 MCB350 1984-09 → — Figure MCB350 MCB350 1985-08 → — Figure MC8384B MC8384B 1984-09 → 1985-08 Figure MC8384B MC8384B 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45135 Cushion, Horn Button
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45137 Plate, Horn Button Stop
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45153 Washer, Horn Button Set
45156 Seat, Horn Lead Spring
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45207A Spring, Compression(FOR HORN EARTH)
45207B Pin, W/Head(FOR HORN EARTH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
