Toyota Dyna
1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe
Discontinued model
Data version 1988-01

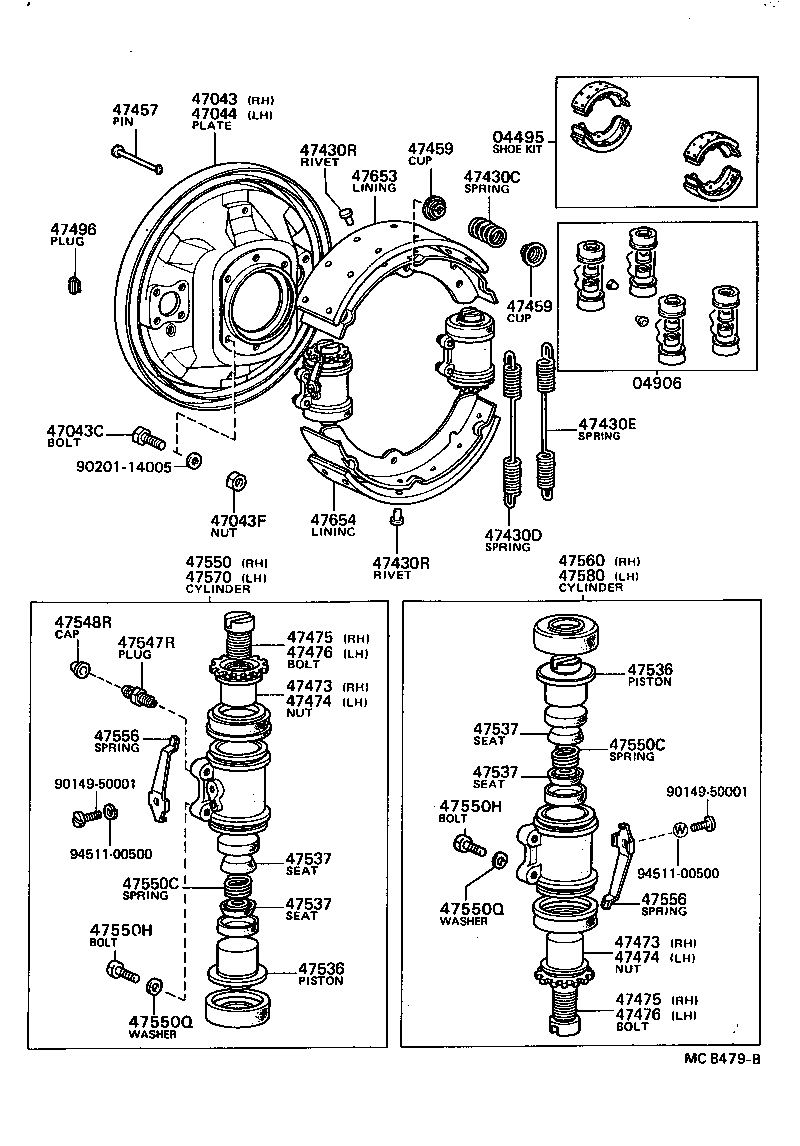

Rear Drum Brake Wheel Cylinder & Backing Plate
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043C | Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47419R | Plug, Hole(FOR REAR BRAKE) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430R | Rivet, Brake Lining(FOR REAR BRAKE) |
| 47457 | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459 | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47473 | Nut, Rear Wheel Cylinder Adjusting, RH(FOR REAR BRAKE) |
| 47474 | Nut, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47475 | Bolt, Rear Wheel Cylinder Adjusting, RH (FOR REAR BRAKE) |
| 47476 | Bolt, Rear Wheel Cylinder Adjusting, LH(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47501 | Piston Sub-assy, Rear Wheel Brake Cylinder |
| 47529R | Seal, Rear Wheel Brake Cylinder Adjust Nut Dust |
| 47532 | Insert, Rear Wheel Cylinder Piston |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47537 | Seat, Wheel Cylinder Piston Spring(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47549R | Seat, Rear Brake Automatic Adjust Nut |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47550Q | Washer(FOR REAR WHEEL CYLINDER) |
| 47556 | Spring, Adjuster Lock(FOR REAR BRAKE) |
| 47559C | Spring, Rear Automatic Adjust Lever Support |
| 47560 | Cylinder Assy, Rear Wheel Brake(FOR RH, REAR OR LOWER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47580 | Cylinder Assy, Rear Wheel Brake(FOR LH, REAR OR LOWER) |
| 47653 | Lining, Rear Brake Shoe(FOR FRONT OR UPPER) |
| 47654 | Lining, Rear Brake Shoe(FOR REAR OR LOWER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
