Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

19 part groups · 2 illustrations

Illustrations

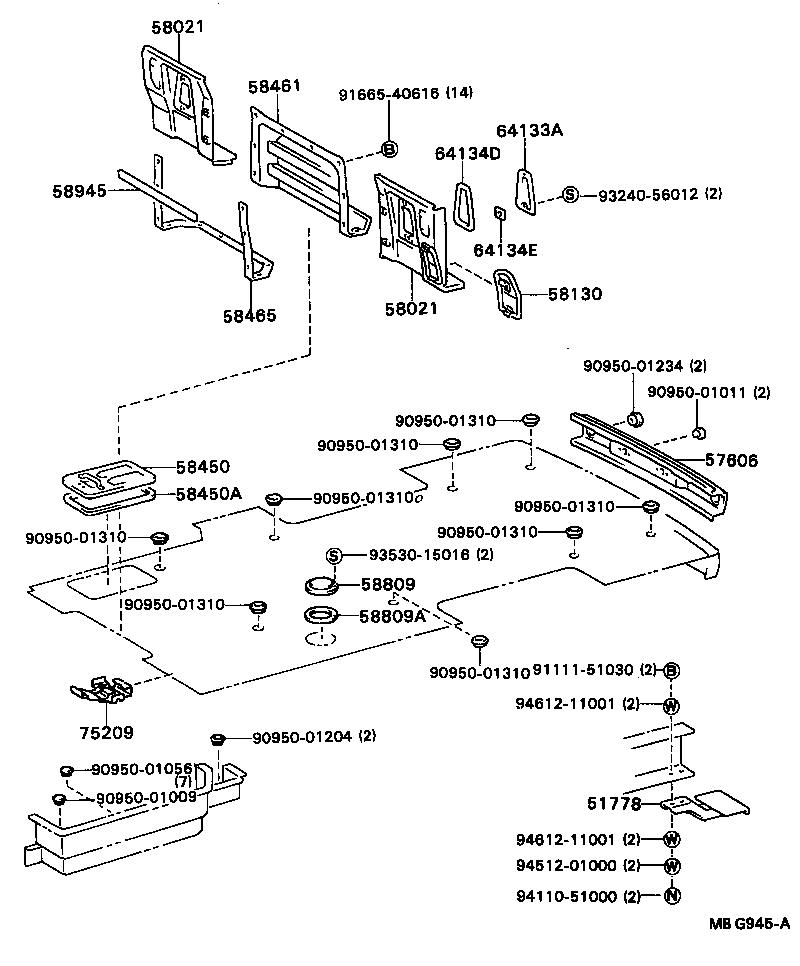

Figure MBG944B MBG944B 1984-09 → — Figure MBG945A MBG945A 1984-09 → —

Part groups

PNCDescription
51778 Step Assy, Back
57101 Member Sub-assy, Front Side, RH
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
58021 Panel Sub-assy, Header
58130 Cover Assy, Reserve Tank Service Hole
58397B Stay, Rear Step, RH
58398B Stay, Rear Step, LH
58450 Cover Assy, Battery Service Hole
58450A Packing, Battery Service Hole Cover
58461 Cover, Transmission Service Hole
58465 Packing, Transmission Service Hole Cover, NO.1
58809 Cover Sub-assy, Fuel Tank
58809A Packing, Fuel Hole Cover
58945 Packing, Transmission Service Hole Cover
64133A Cover, Header Panel
64134D Packing, Header Panel Cover
64134E Seal, Header Panel Cover
75209 Base Sub-assy, Jack Holder
75255 Cover, Step Plate Rear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
