Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

20 part groups · 6 illustrations

Illustrations

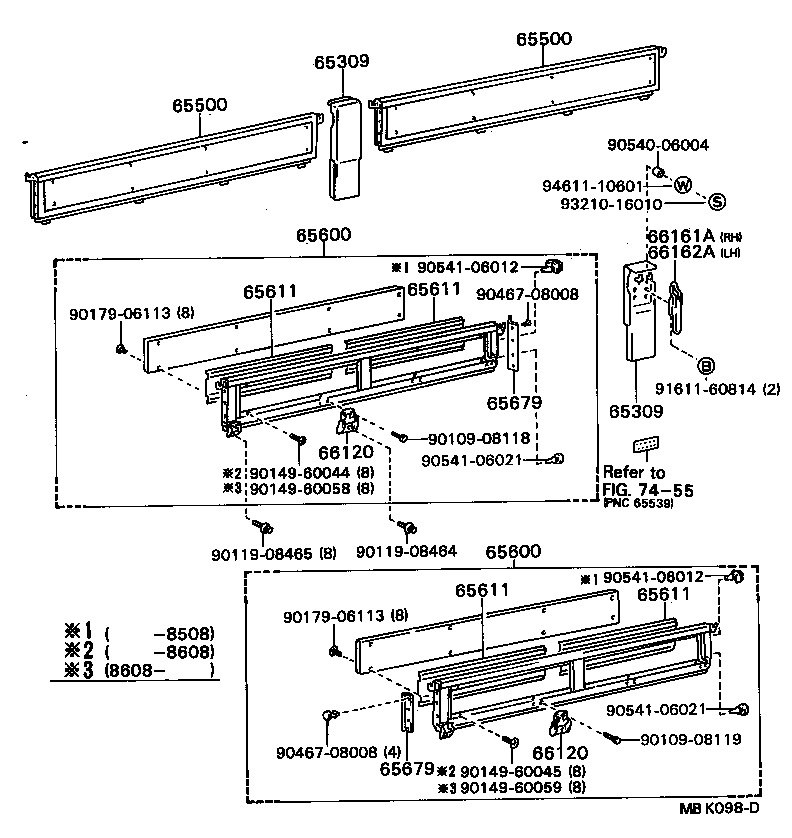

Figure MBG994B MBG994B 1984-09 → — Figure MBH003 MBH003 1984-09 → — Figure MBH325G MBH325G 1984-09 → — Figure MBG997F MBG997F 1984-09 → — Figure MBK098D MBK098D 1984-09 → — Figure MBH001B MBH001B 1984-09 → —

Part groups

PNCDescription
65309 Post Sub-assy, Center
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65611 Panel, Side Gate
65679 Drip, Side Gate
66120 Hinge Assy, Side Gate
66120B Retainer, Side Gate Hinge, Lower
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66161A Handle, Side Gate Latch, RH
66162A Handle, Side Gate Latch, LH
66311 Hook, Rope
66321B Bumper, Gate Rubber
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
