Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

18 part groups · 3 illustrations

Illustrations

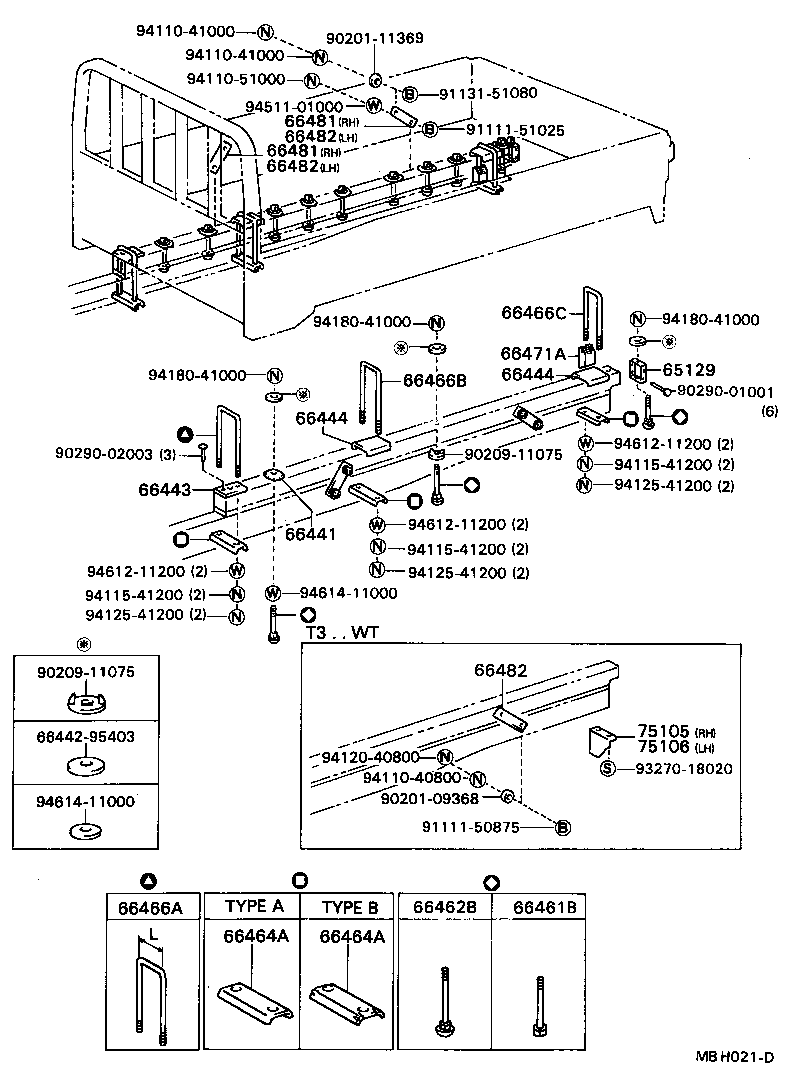

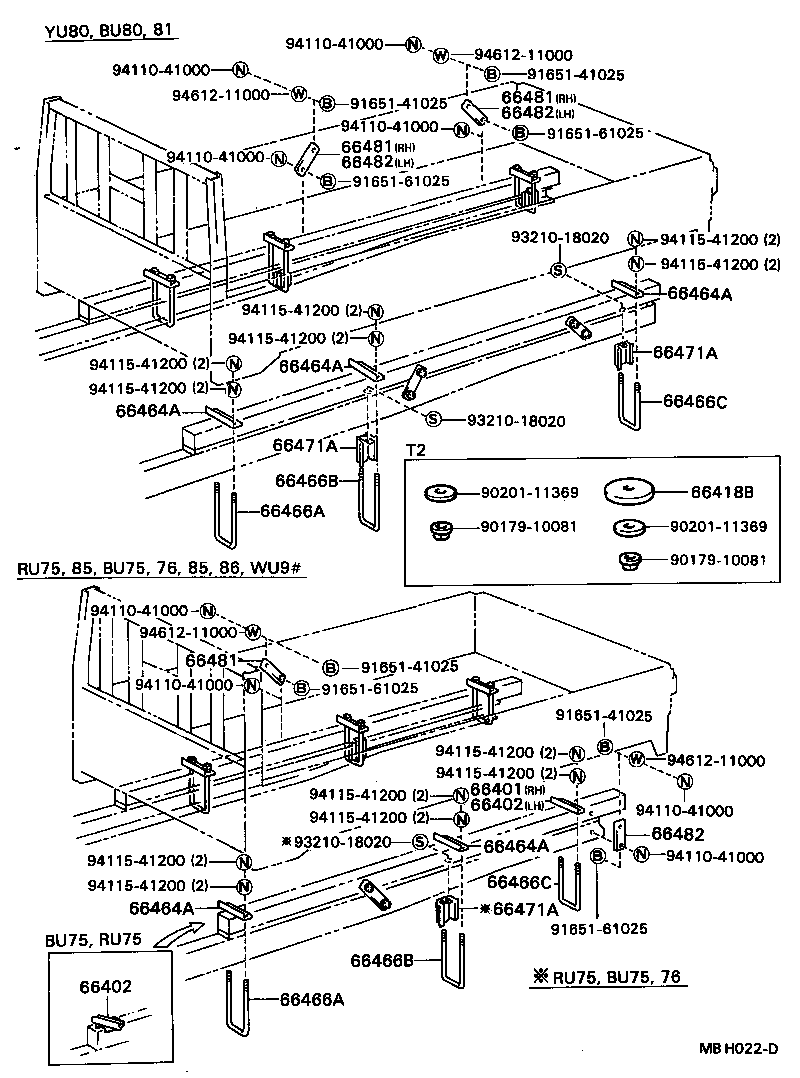

Figure MBH020C MBH020C 1984-09 → — Figure MBH021D MBH021D 1984-09 → — Figure MBH022D MBH022D 1984-09 → —

Part groups

PNCDescription
65129 Cover, Main Sill Rear End
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66418B Shim, Mounting
66441 Shim, Mounting, NO.1
66443 Shim, Mounting, NO.3
66461B Bolt, Sill Main, NO.1
66462B Bolt, Sill Main, NO.2
66464A Plate, U Bolt
66466A Bolt, U, NO.1
66466B Bolt, U, NO.2
66466C Bolt, U, NO.3
66471A Reinforcement, Frame U Bolt
66481 Brace, Sill TO Frame, RH
66482 Brace, Sill TO Frame, LH
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
