Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

8 part groups · 2 illustrations

Illustrations

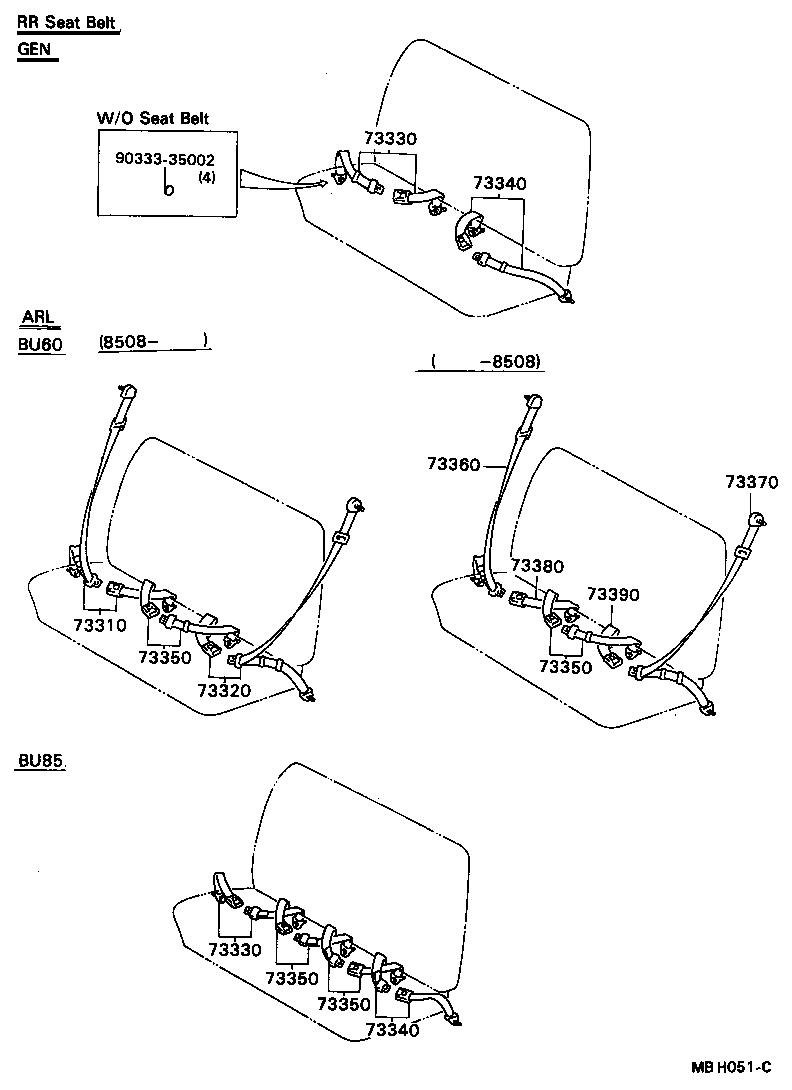

Figure MBH050C MBH050C 1984-09 → — Figure MBH051C MBH051C 1984-09 → —

Part groups

PNCDescription
72911 Cover, Seat Belt Retractor
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
