Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 2 illustrations

Illustrations

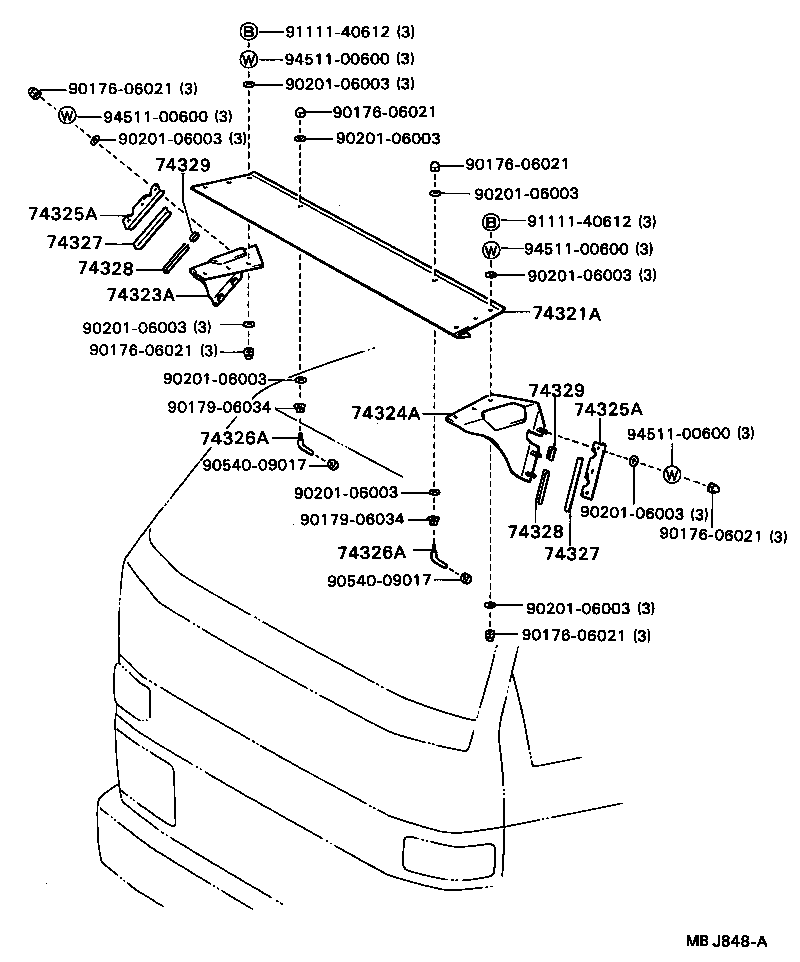

Figure MBH053D MBH053D 1984-09 → — Figure MBJ848A MBJ848A 1984-09 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74310B Plug, Hole (FOR VISOR)
74320 Visor Assy, LH
74321A Visor, Front
74323A Stay, Front Visor, RH
74324A Stay, Front Visor, LH
74325A Support, Front Visor, NO.1
74326A Support, Front Visor, NO.2
74327 Pad, Front Visor, NO.1
74328 Pad, Front Visor, NO.2
74329 Pad, Front Visor, NO.3
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
