Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

17 part groups · 4 illustrations

Illustrations

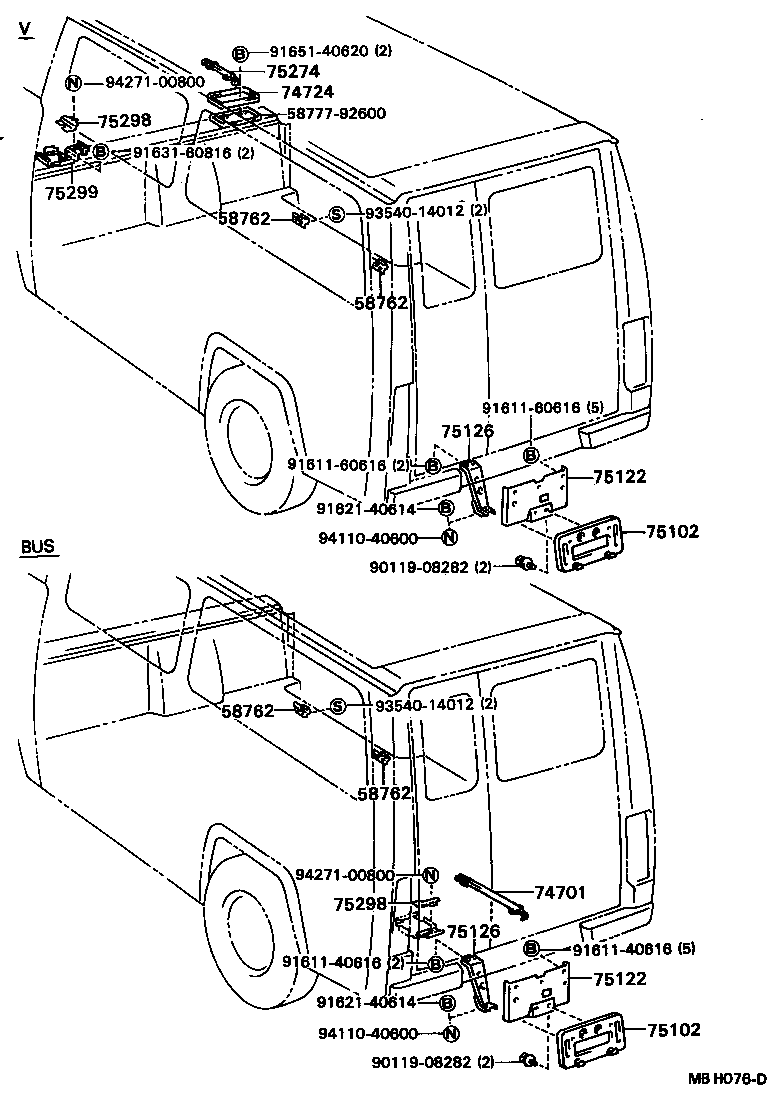

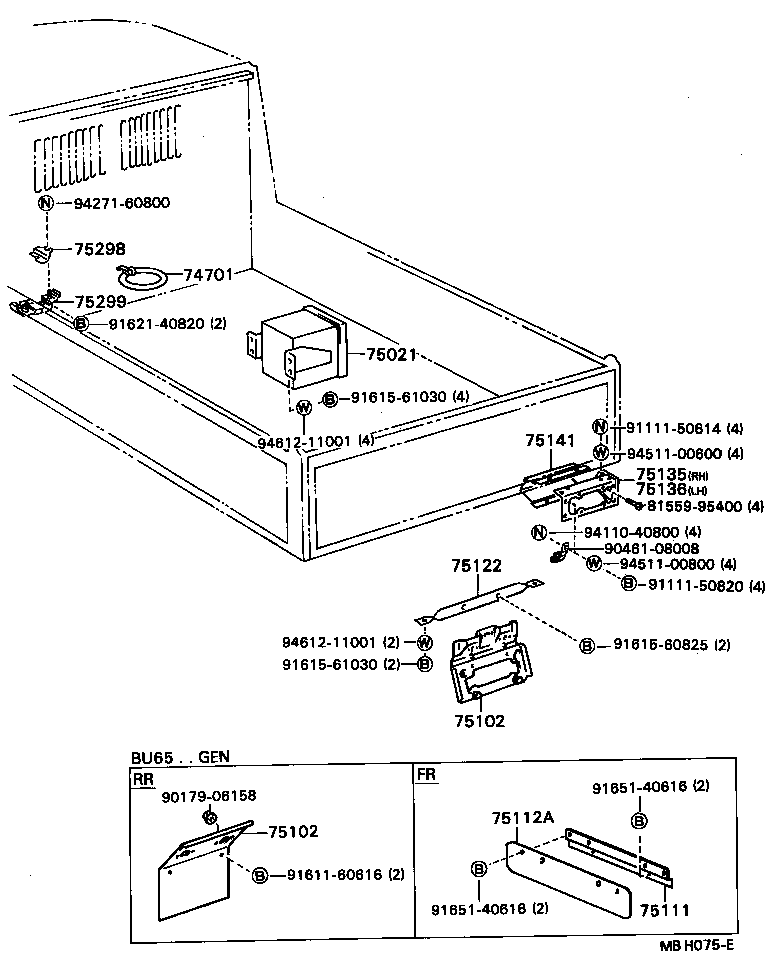

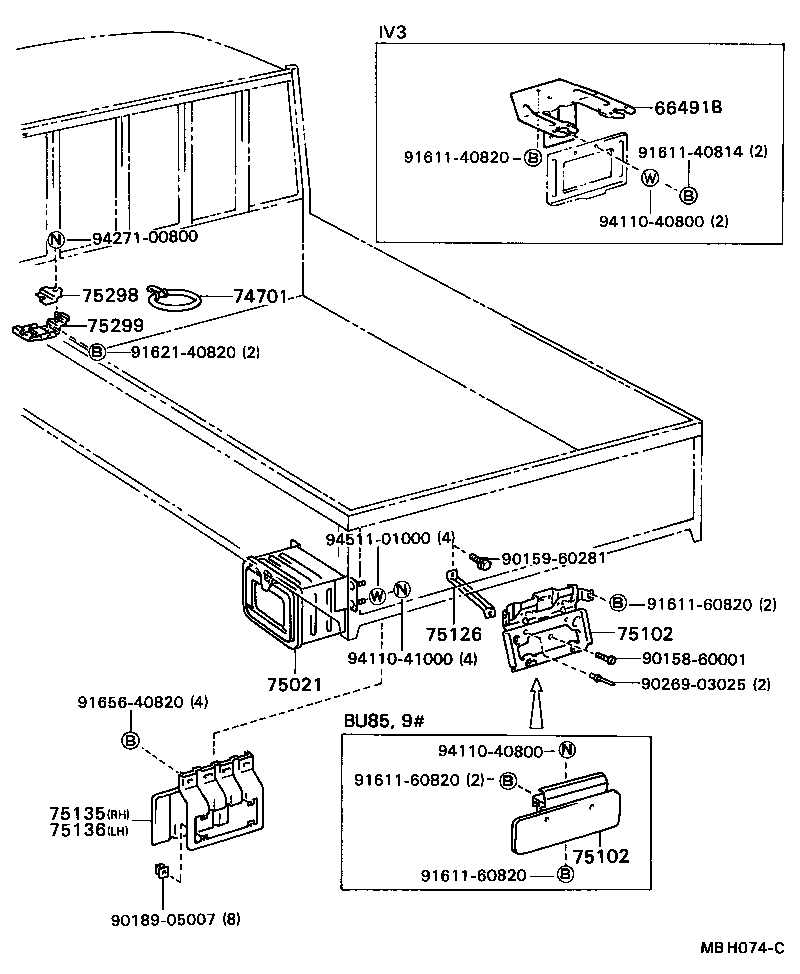

Figure MBH072E MBH072E 1984-09 → — Figure MBH074C MBH074C 1984-09 → — Figure MBH075E MBH075E 1984-09 → — Figure MBH076D MBH076D 1984-09 → —

Part groups

PNCDescription
58762 Holder, Starting Handle
66491B Hanger, License Plate Bracket
66492A Bracket, License Hanger
74701 Clamp Sub-assy, Tool Bag
74724 Trim, Tool Back Platform
75021 Box Sub-assy, Tool
75102 Bracket Sub-assy, Rear License Plate
75122 Stay, Rear License Plate Bracket, Upper
75124 Support, Rear License Bracket
75126 Stay, Rear License Plate Bracket, Lower
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75137 Bracket, License Plate Lamp
75141 Protector, Rear Combination Lamp
75274 Band, Tool Box Holder
75298 Plate, Jack Holder
75299 Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
