Toyota Dyna
1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe
Discontinued model
Data version 1988-01
Fuel Tank & Tube
49 part groups · 11 illustrations
Illustrations
Part groups

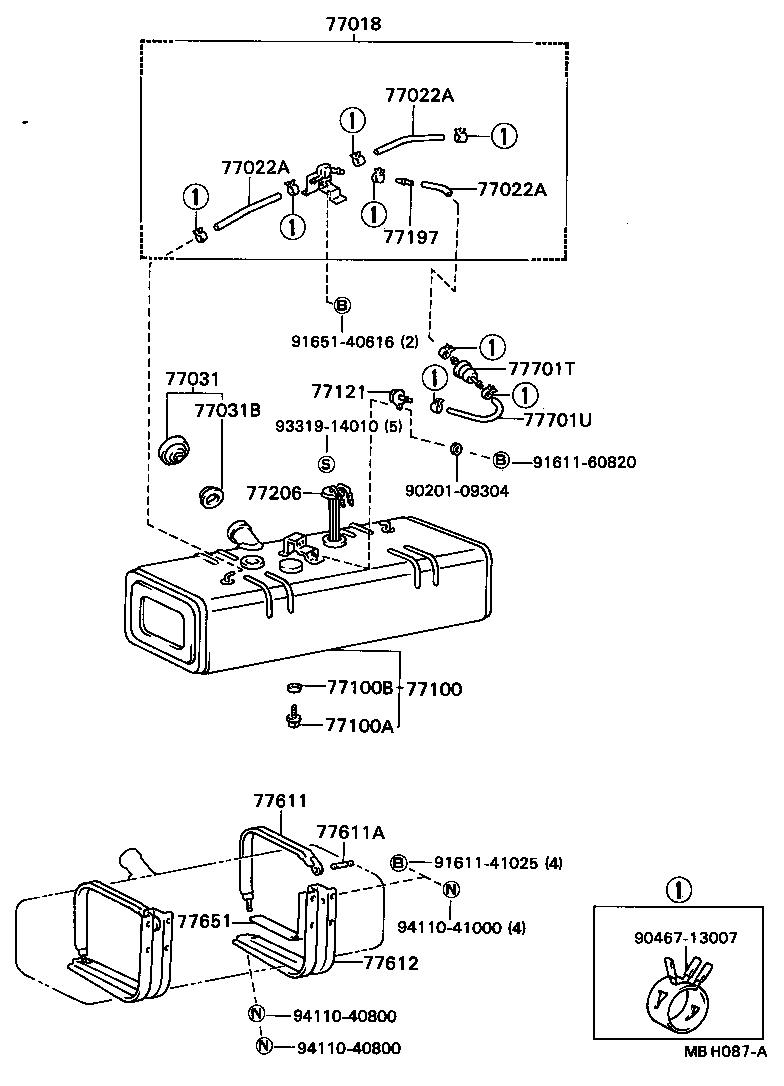

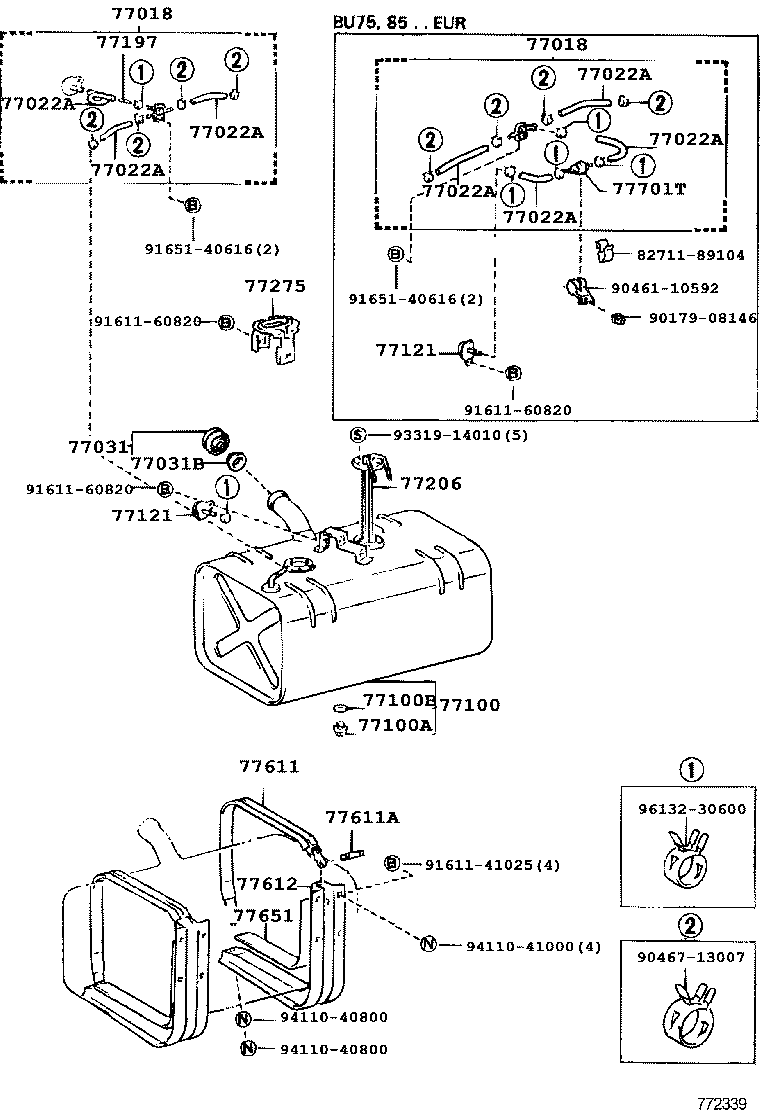

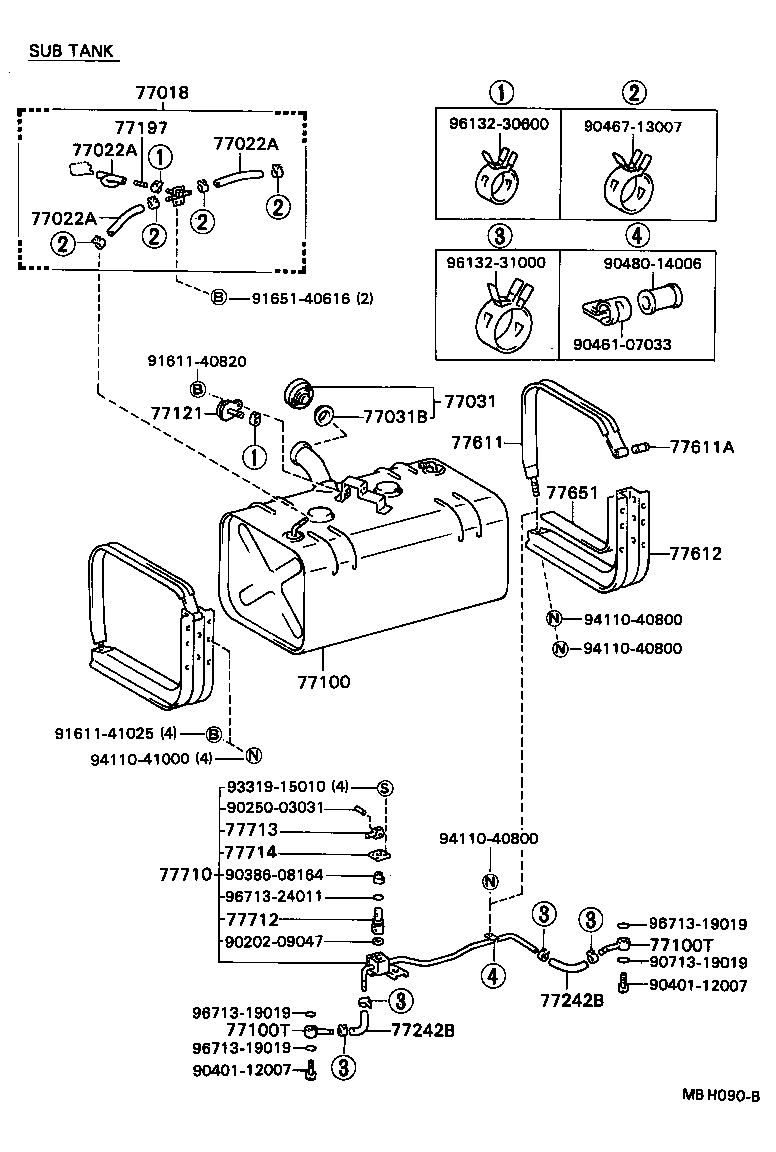

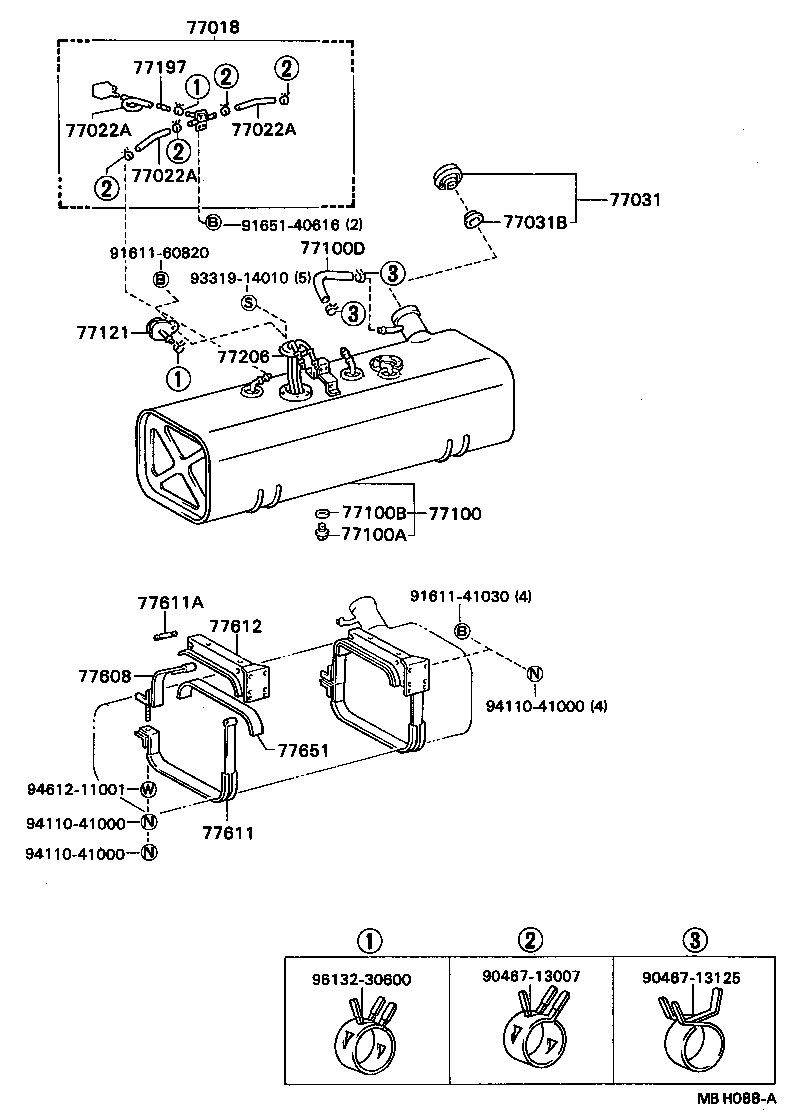

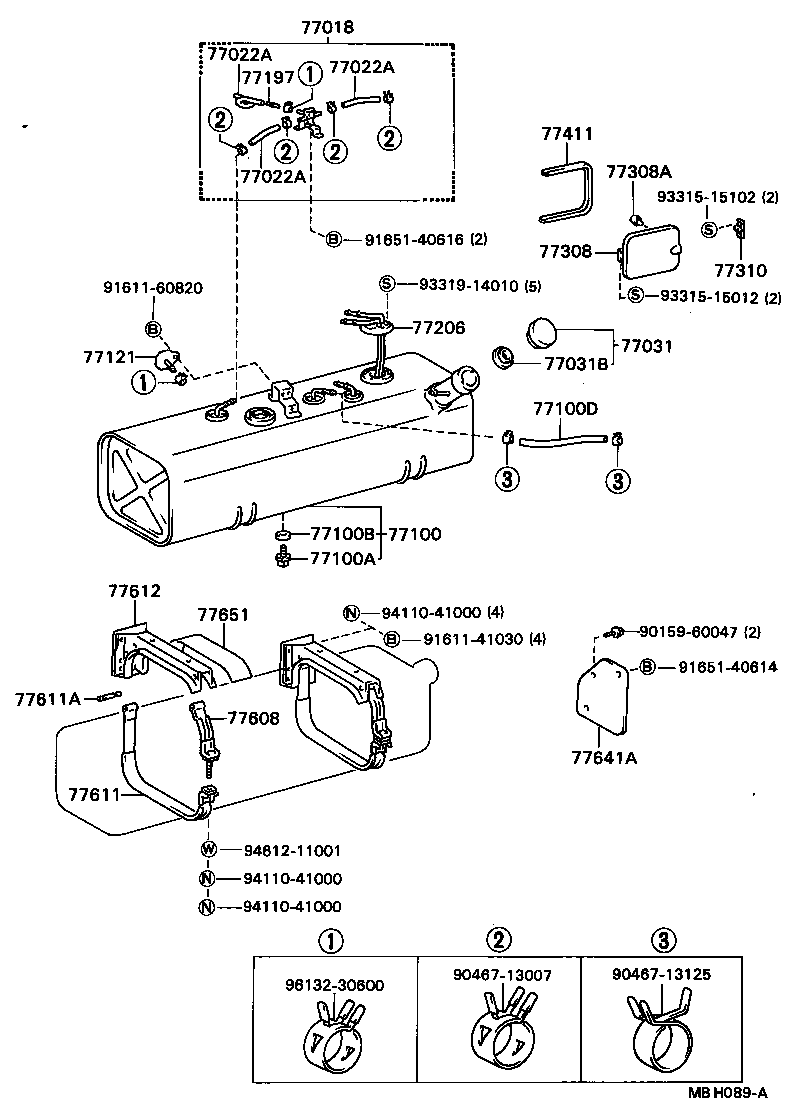

| PNC | Description |
|---|---|
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100T | Union(FOR FUEL SUB-TANK) |
| 77121 | Protector, Fuel Tube |
| 77197 | Orifice, Fuel Vapor |

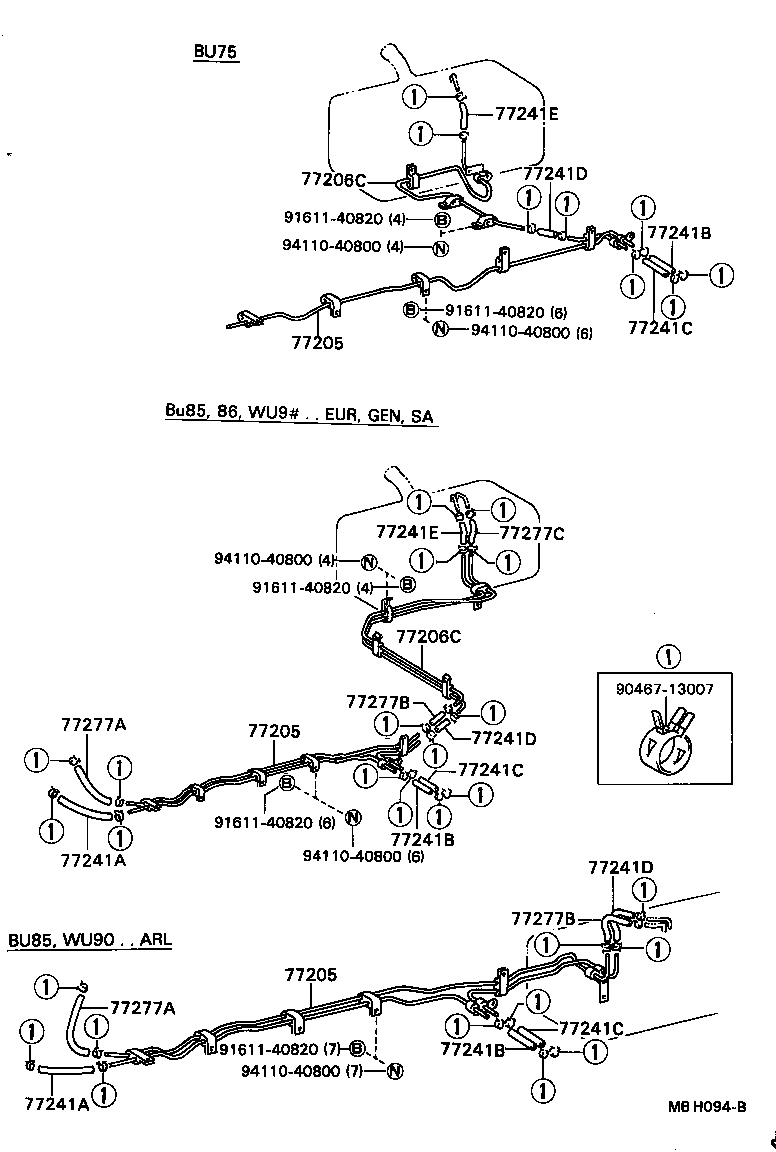

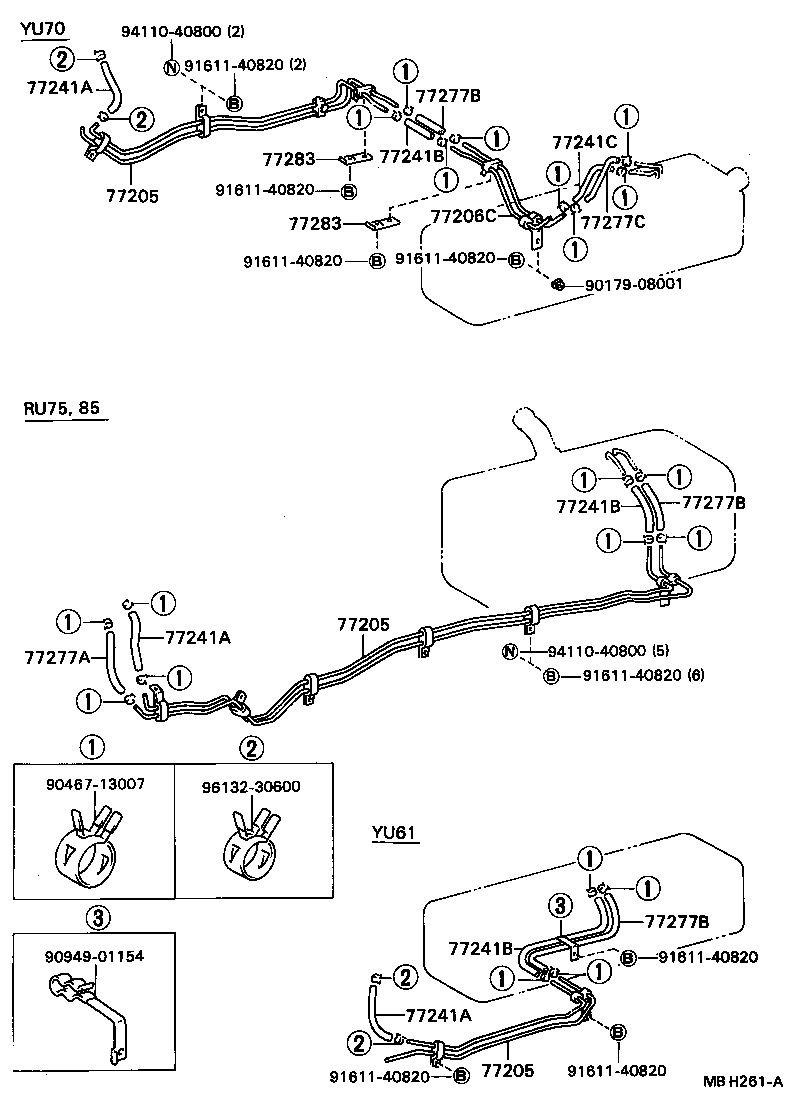

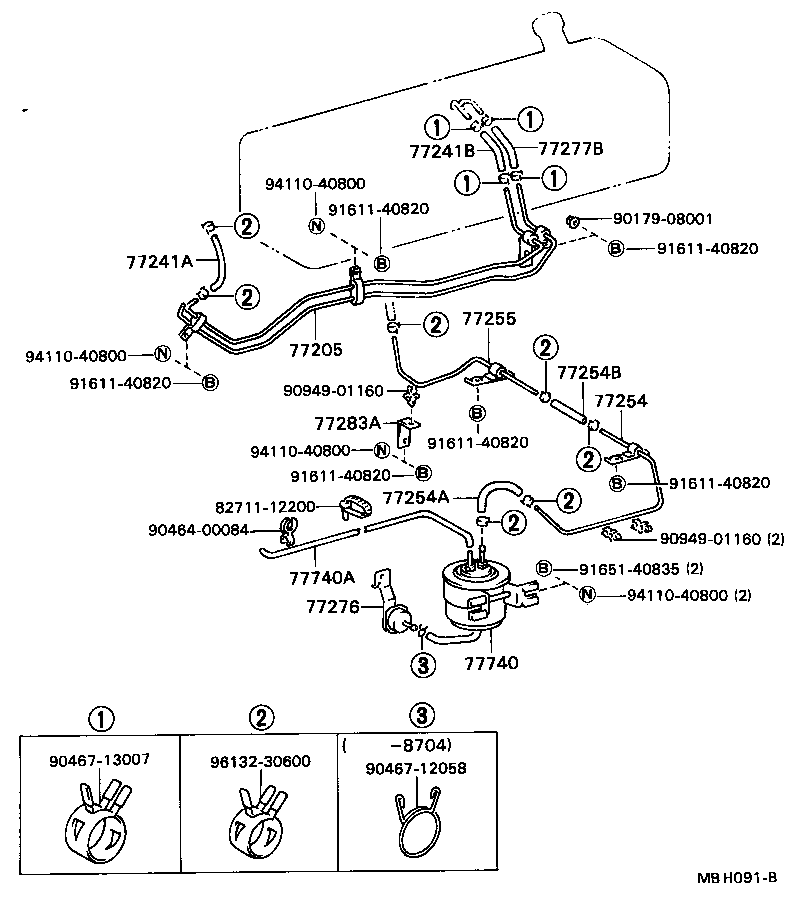

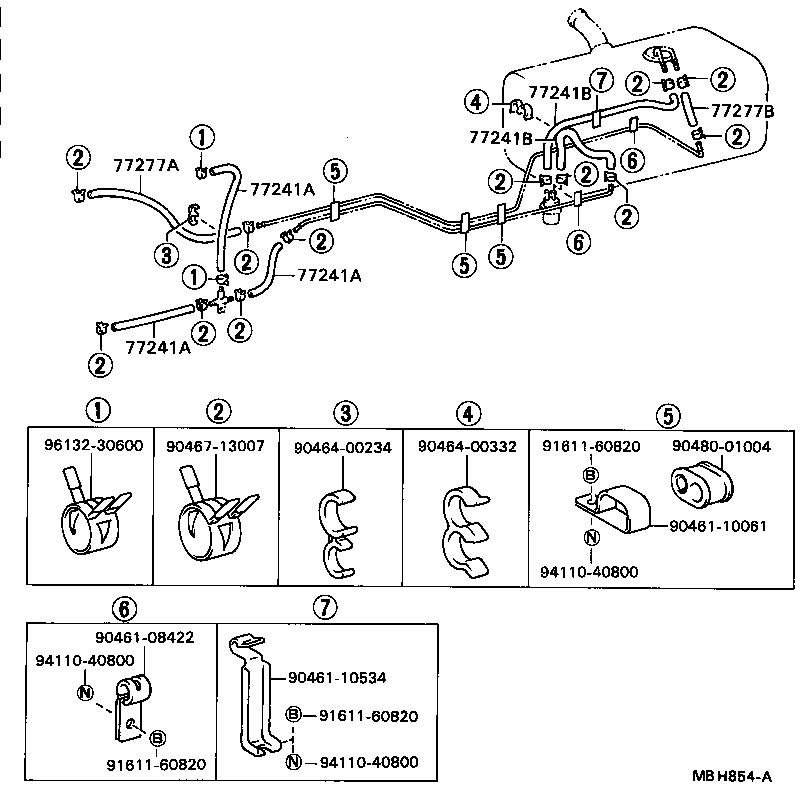

| 77205 | Tube Sub-assy, Fuel Main |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77241C | Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1) |
| 77241D | Hose, Fuel, NO.4 (FOR MAIN TUBE, NO.1) |
| 77241E | Hose, Fuel, NO.5 (FOR MAIN TUBE, NO.1) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77275 | Protector, Fuel Evaporative Separator |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277C | Hose, Fuel, NO.3(FOR RETURN TUBE, NO.1) |
| 77283 | Bracket, Fuel Tube |
| 77283A | Bracket, Fuel Tube Clamp, NO.1 |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310 | Stopper, Fuel Inlet Box |
| 77411 | Protector, Fuel Inlet Box |
| 77608 | Band Sub-assy, Fuel Tank, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612 | Bracket Sub-assy, Fuel Tank |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651 | Packing, Fuel Tank Bracket |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77710 | Cock Assy, Fuel Change |
| 77712 | Valve, Fuel Change Cock |
| 77713 | Lever, Fuel Change Cock |
| 77714 | Cap, Fuel Change Cock |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
