Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

18 part groups · 5 illustrations

Illustrations

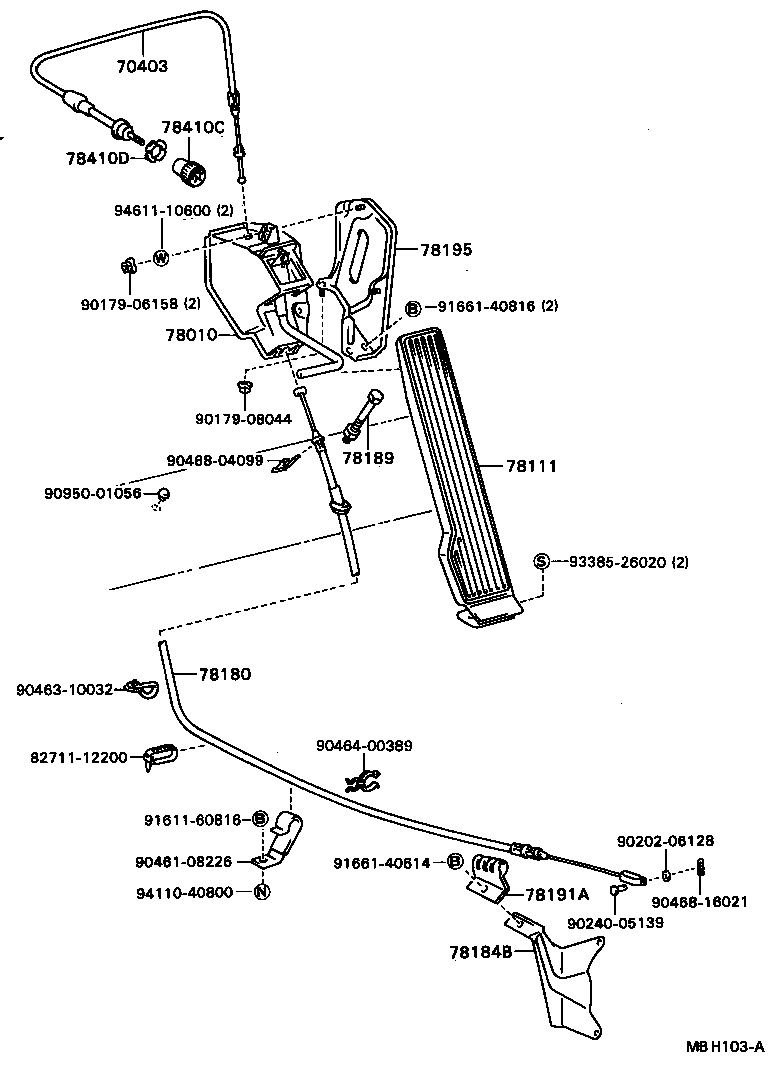

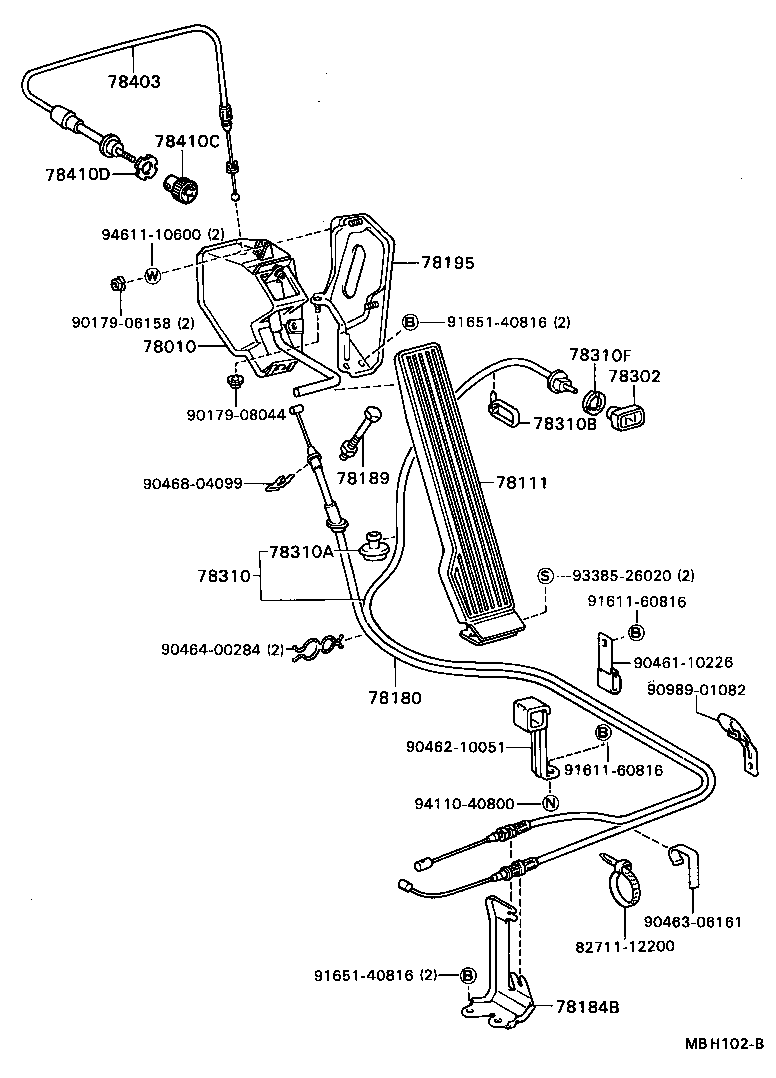

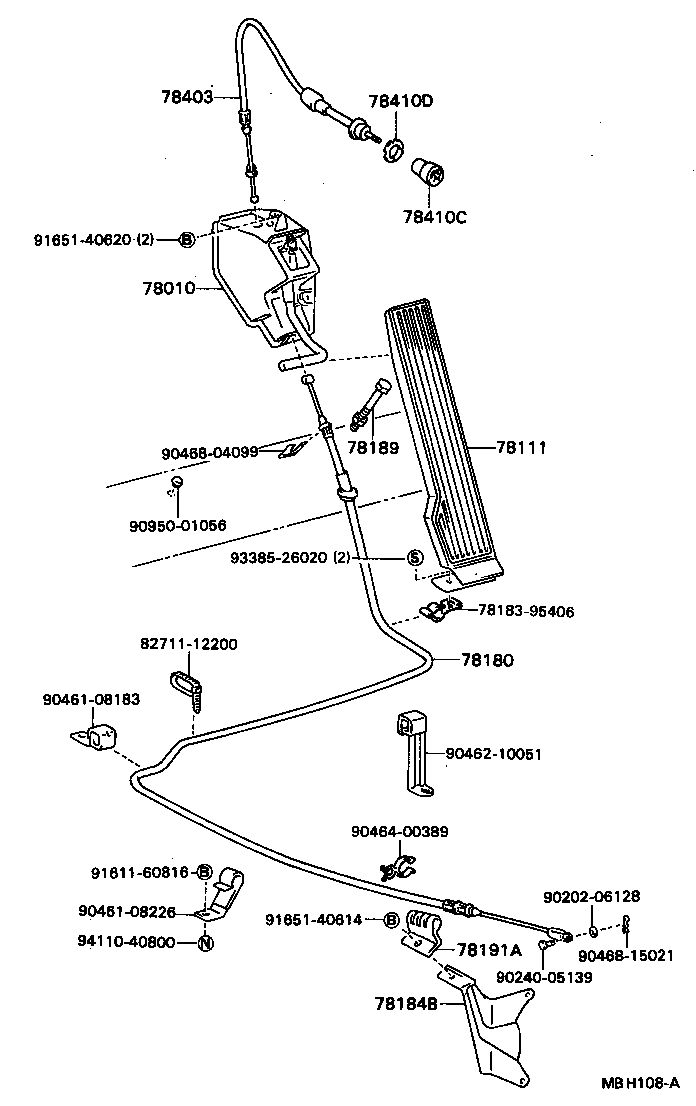

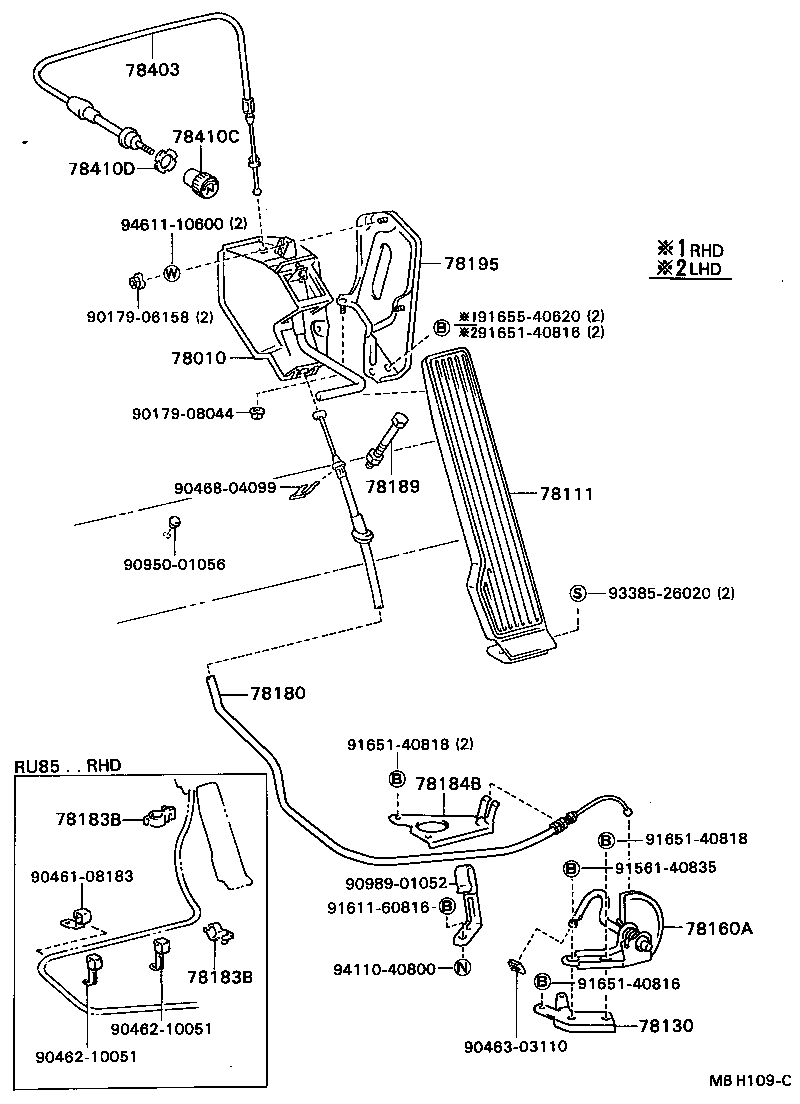

Figure MBH101B MBH101B 1984-09 → — Figure MBH102B MBH102B 1984-09 → — Figure MBH109C MBH109C 1984-09 → — Figure MBH108A MBH108A 1984-09 → — Figure MBH103A MBH103A 1984-09 → —

Part groups

PNCDescription
78010 Link, Accelerator
78111 Pedal, Accelerator
78130 Bellcrank Assy, Accelerator
78160A Bellcrank Assy, Accel Control W/Bracket
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78195 Bracket, Accelerator Link
78302 Knob Sub-assy, Choke Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310B Clamp, Choke Cable
78310F Nut, Choke
78403 Cable Sub-assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
