Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 7 illustrations

Illustrations

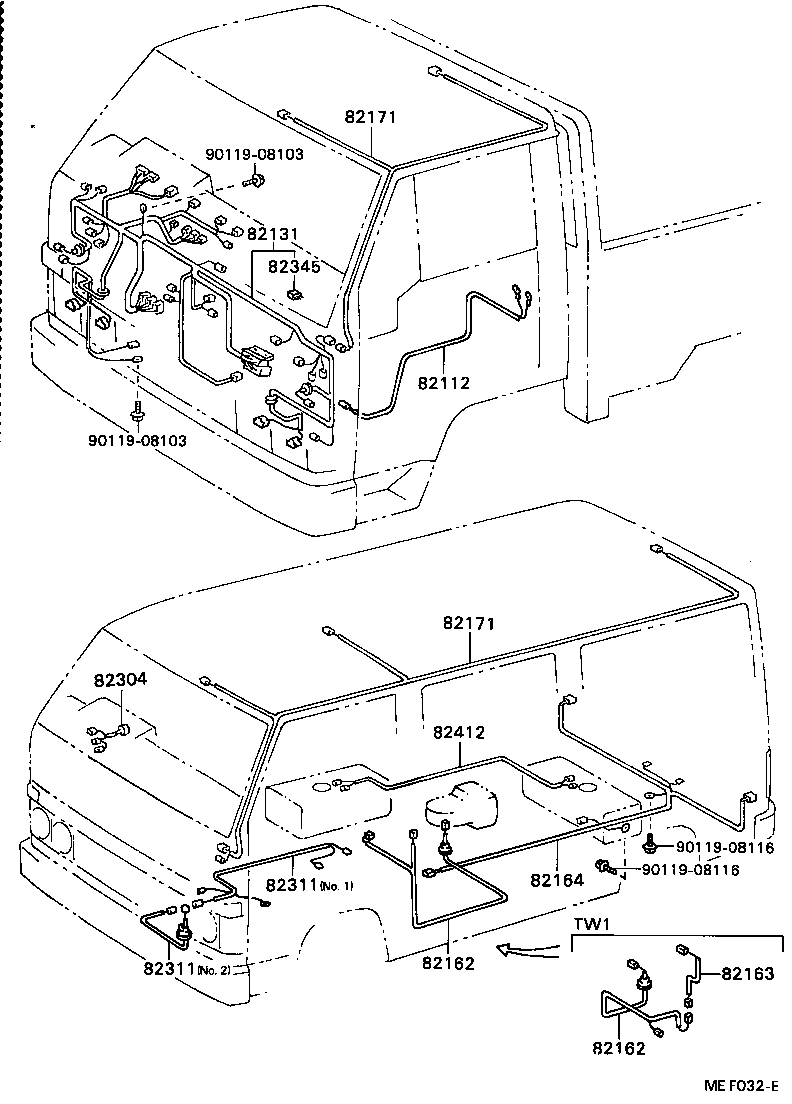

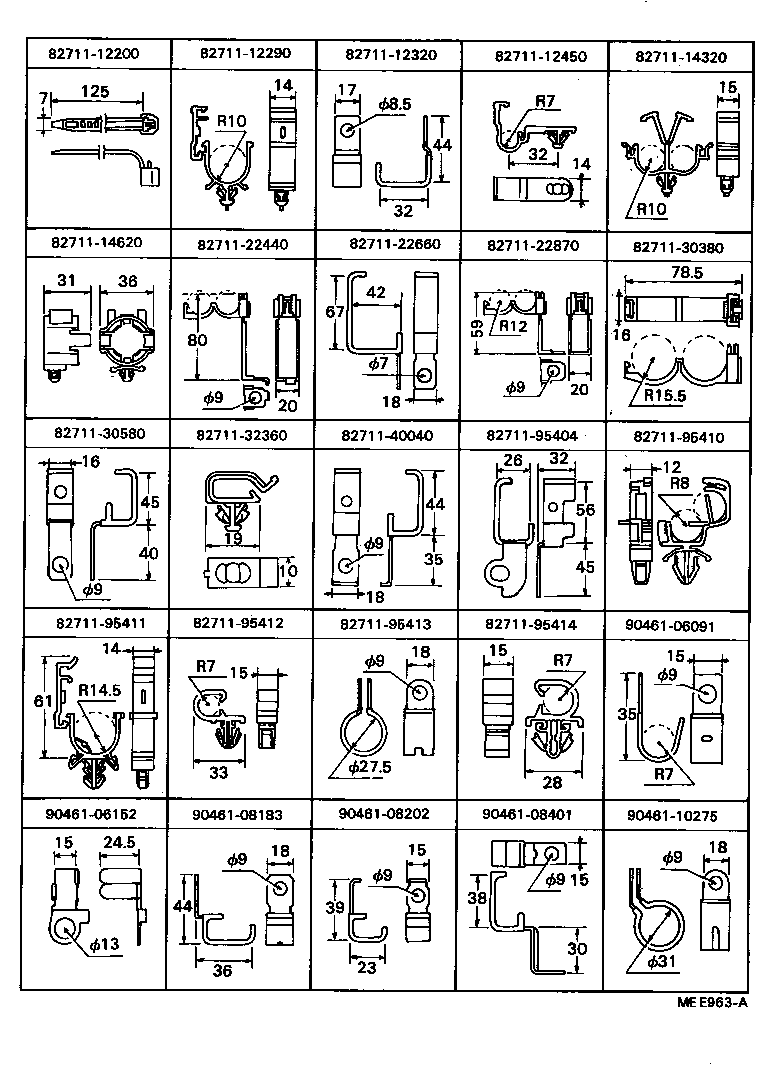

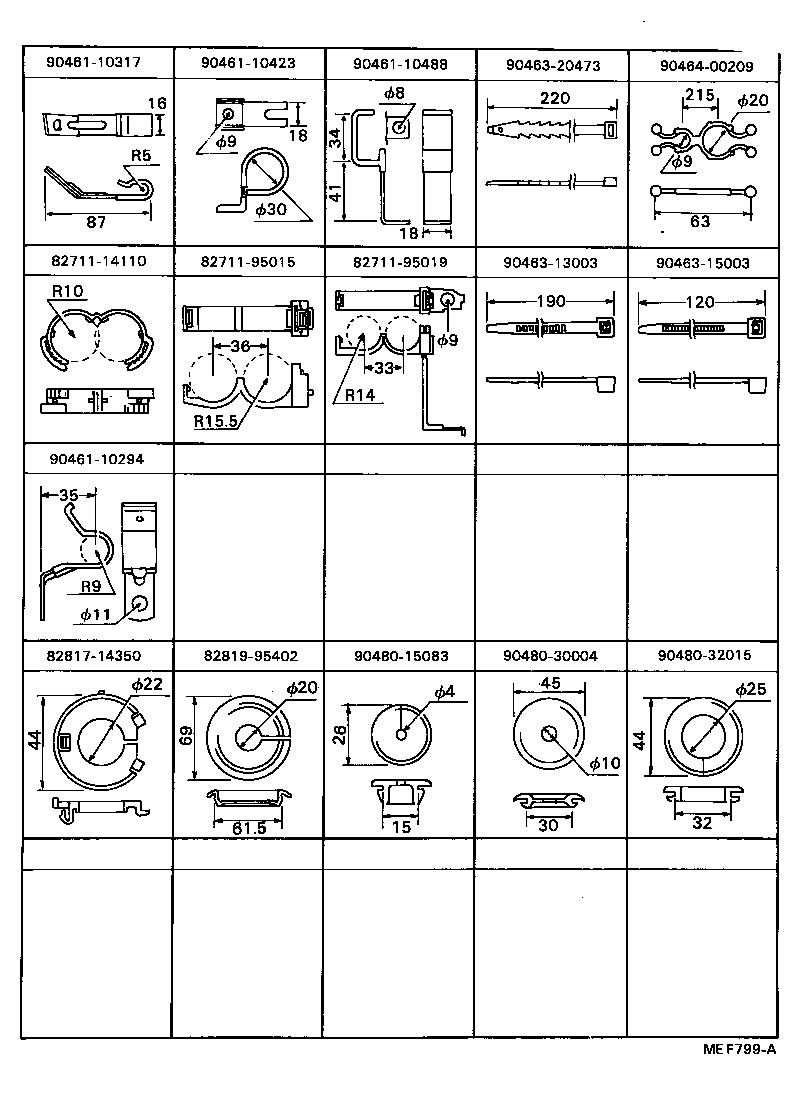

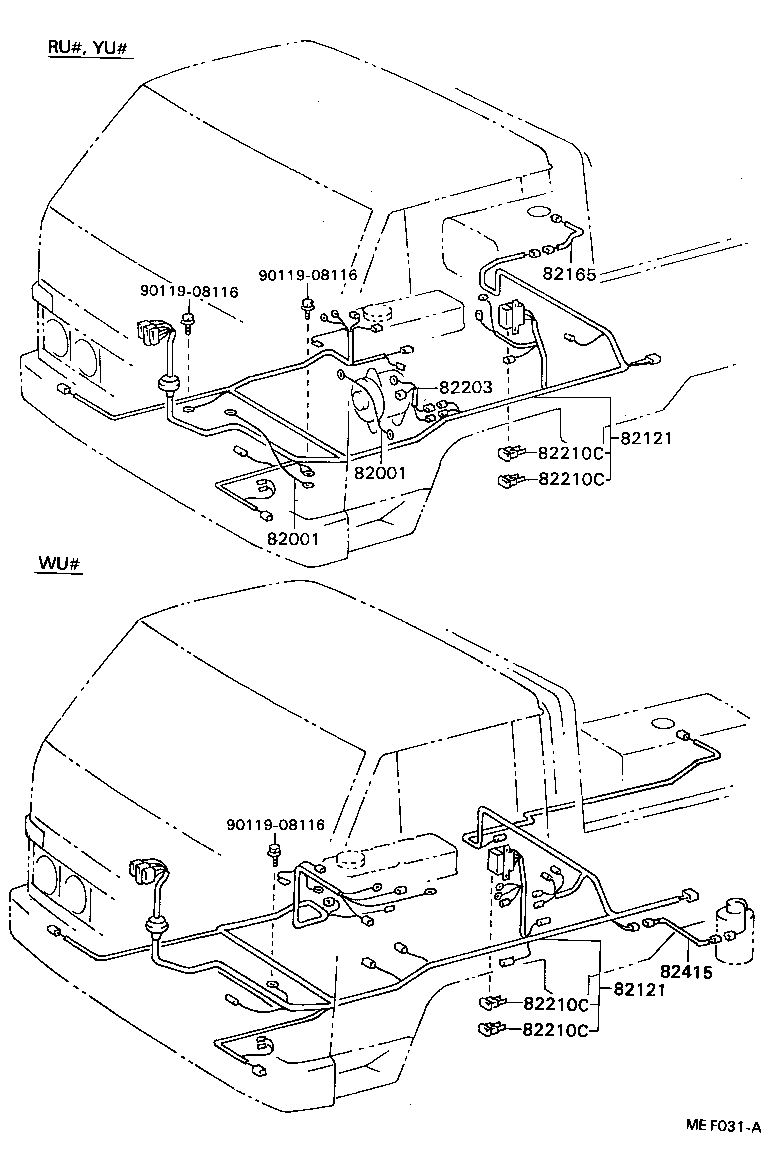

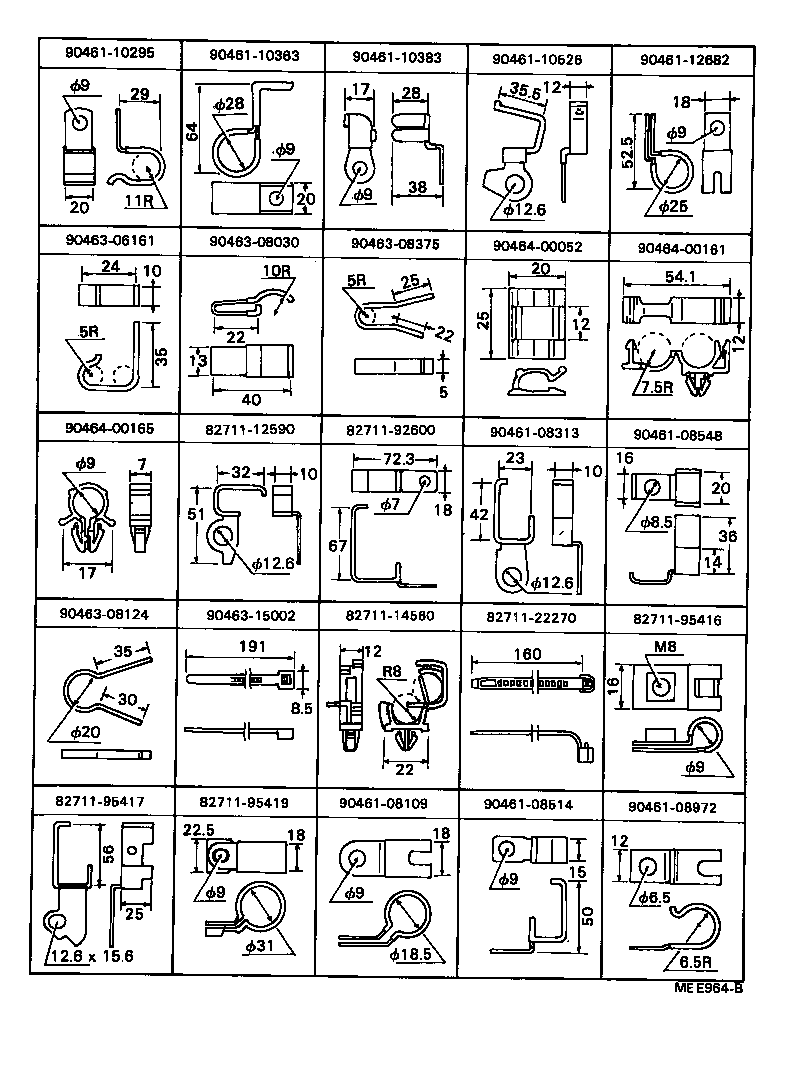

Figure MEF030B MEF030B 1984-09 → — Figure MEF031A MEF031A 1984-09 → — Figure MEF032E MEF032E 1984-09 → — Figure MEH717 MEH717 1984-09 → — Figure MEE963A MEE963A 1984-09 → — Figure MEE964B MEE964B 1984-09 → — Figure MEF799A MEF799A 1984-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82121 Wire, Engine
82131 Wire, Cowl
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82214A Wire, Lamp
82304 Wire Sub-assy, TO Tachograph
82311 Harness Assy, Cooler
82345 Diode
82412 Wire, Fuel Gage
82415 Wire, Fuel Pump
82431 Wire, Work Lamp Feed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
