Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

27 part groups · 6 illustrations

Illustrations

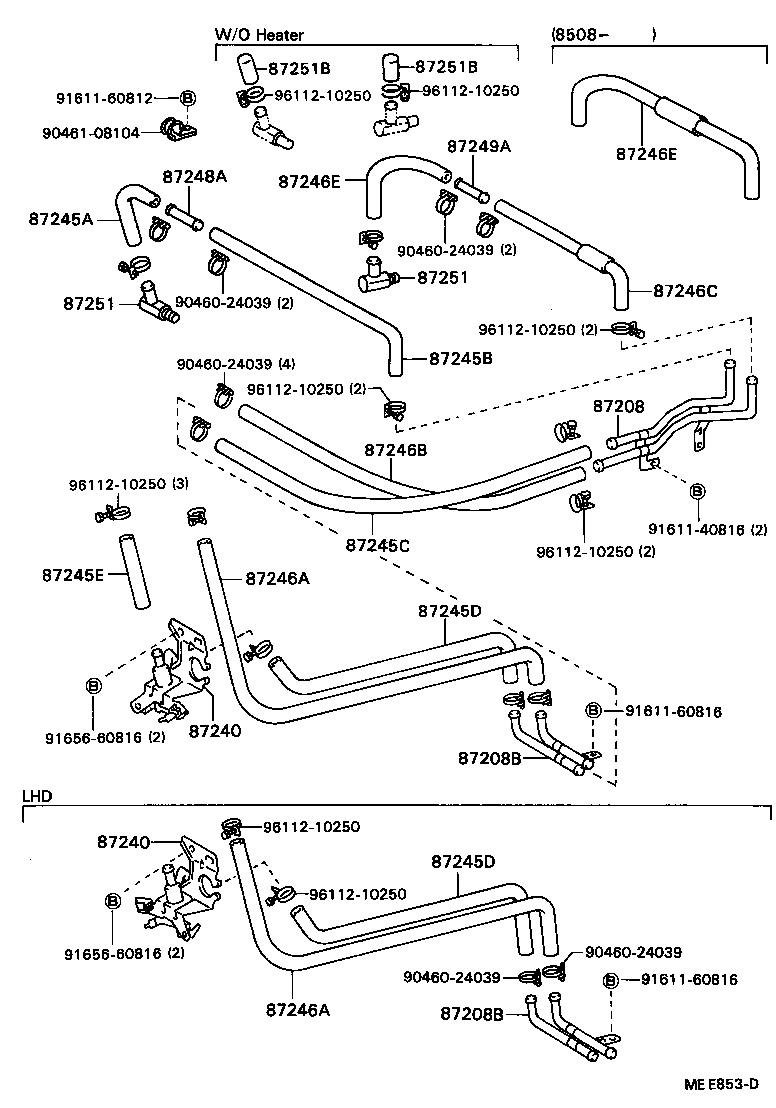

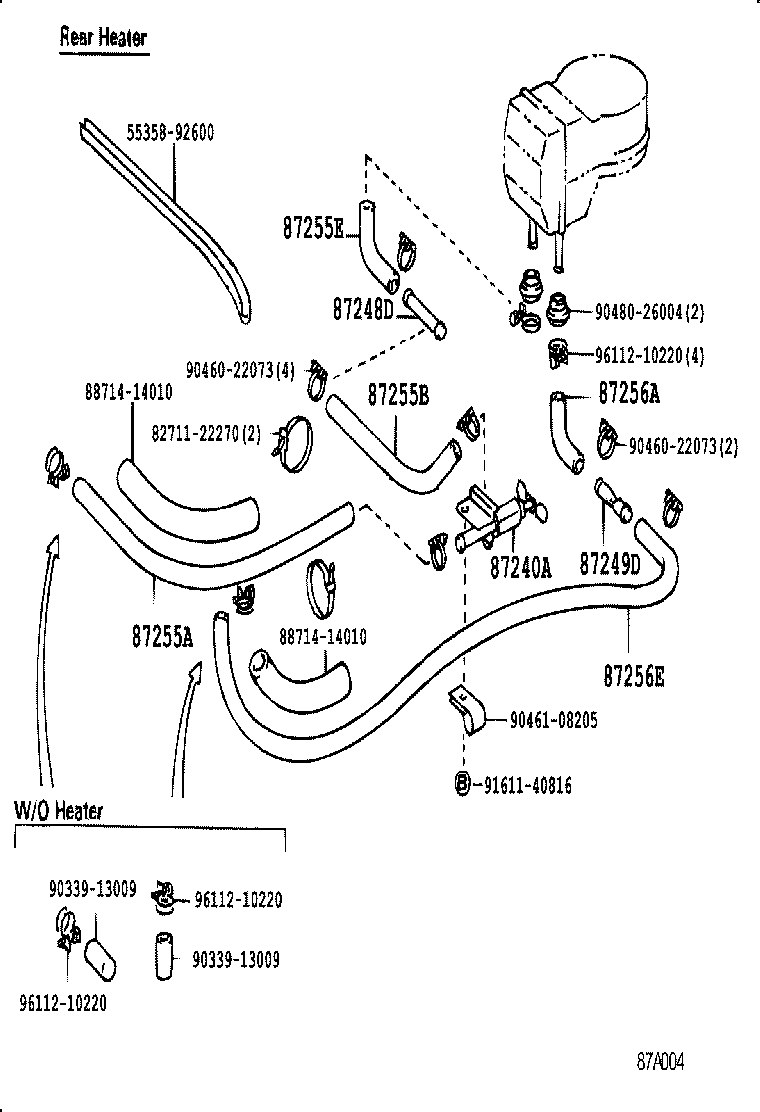

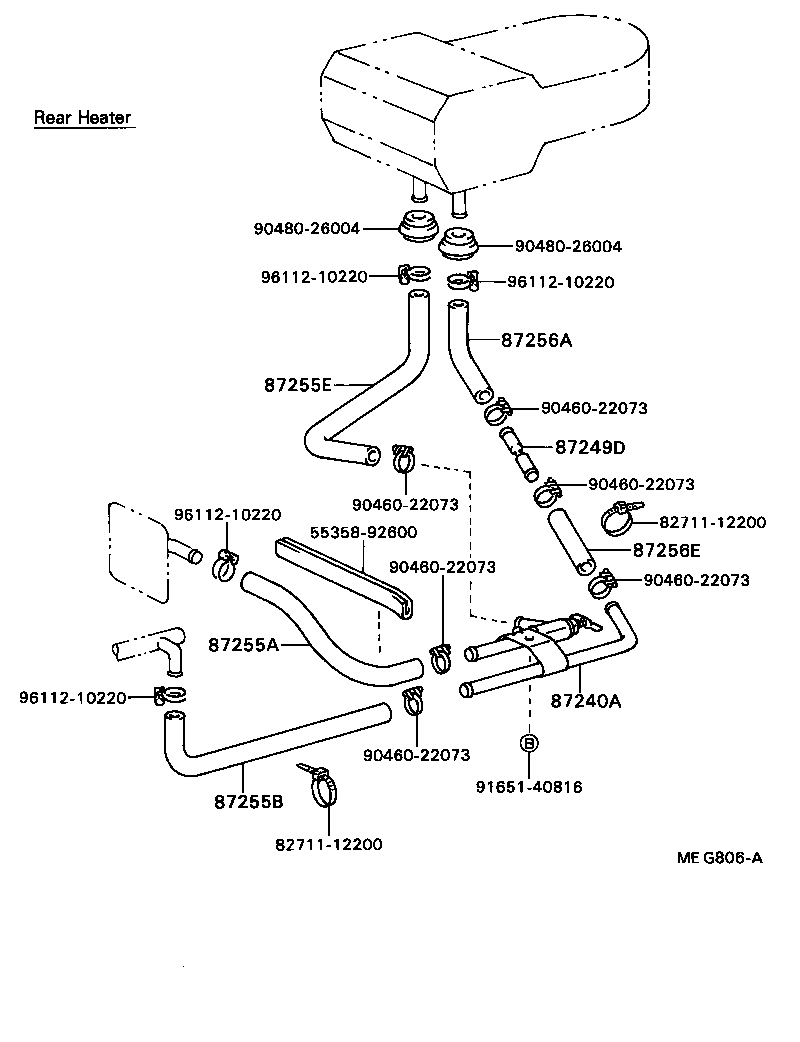

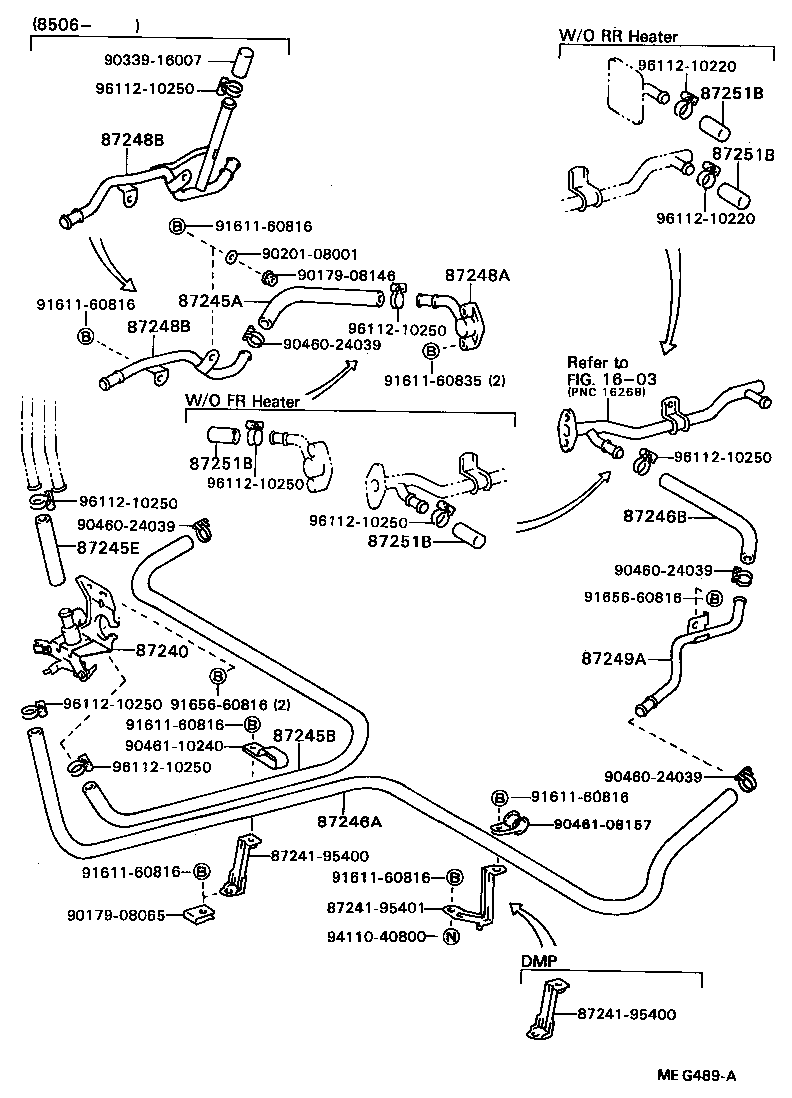

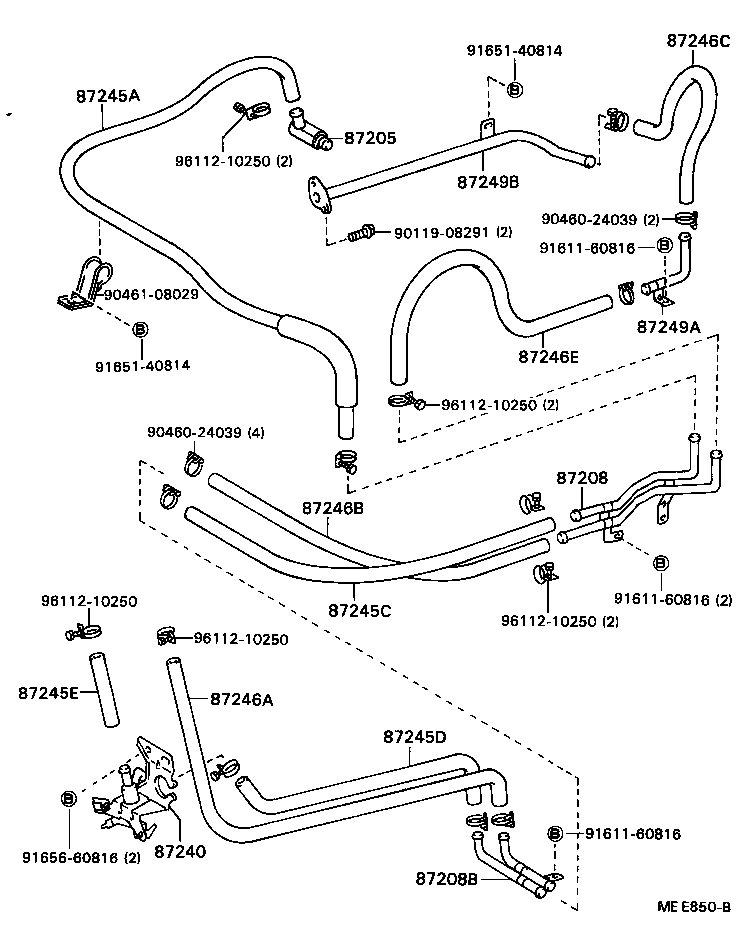

Figure MEE849D MEE849D 1984-09 → — Figure MEG489A MEG489A 1984-09 → — Figure MEE850B MEE850B 1984-09 → — Figure MEE853D MEE853D 1984-09 → — Figure 87A004 87A004 1984-09 → 1985-08 Figure MEG806A MEG806A 1985-08 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
